56 Kayenne XL Package — Installation and Service Manual
Section 2 — Control Surfaces
Menu Panel Articulated Arm Installation
The Kayenne XL Touch Screen Menu Panel has VESA 75 threads on the
back that can be used to mount the Menu Panel to the supplied articulated
arm, or any VESA compliant mounting system.

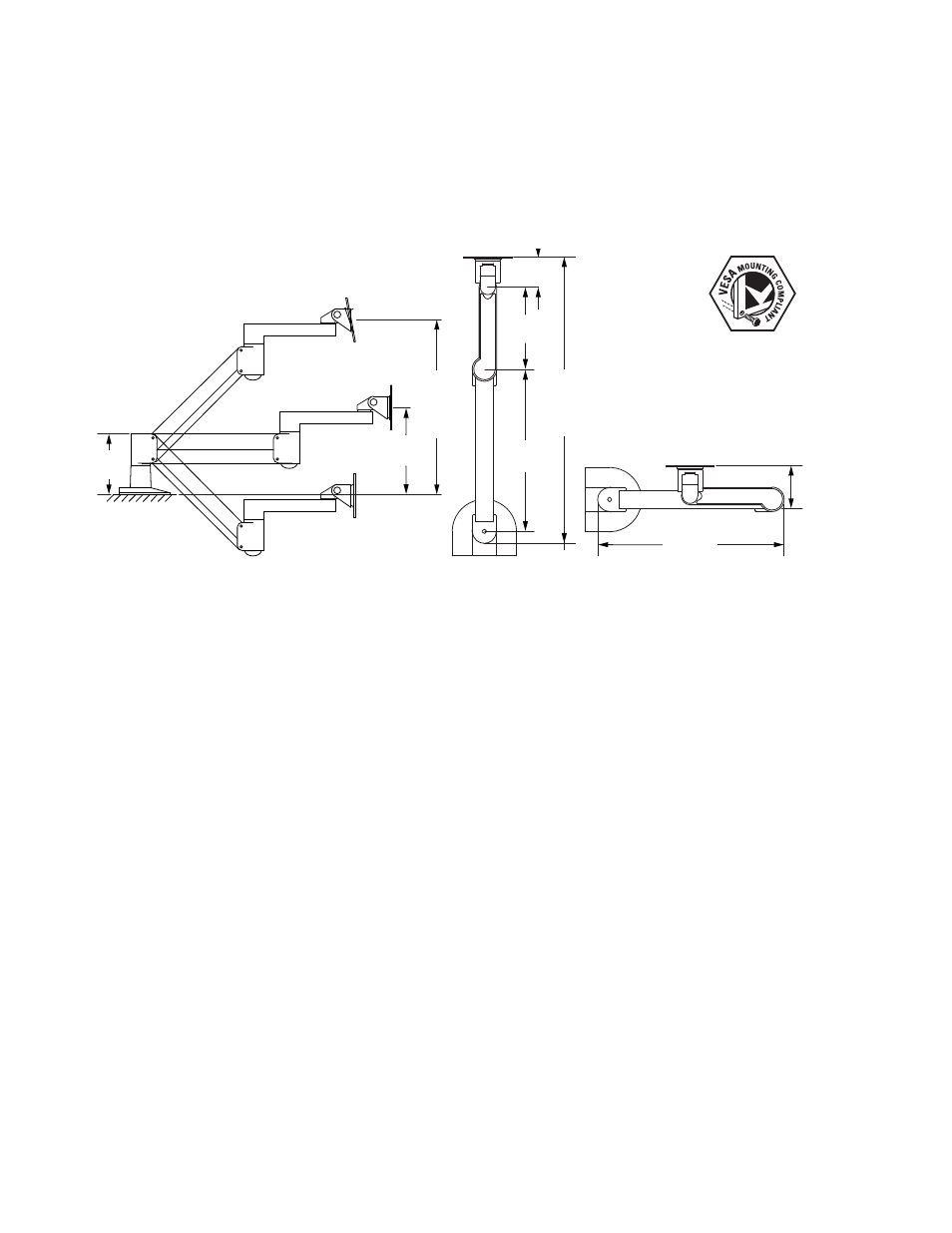

Figure 34. Articulated Arm Range of Motion Dimensions
The supplied articulated arm is equipped with a flex-mount system, per-
mitting a variety of mounting options (table-top, wall mount, etc.). See the
documentation provided with the articulated arm for specific installation
instructions.
157 mm
6.18 in.
225.5 mm
8.88 in.
Max
vertical
range
454.7 mm
17.0 in.
Max
horizontal
range
685.8 mm
27.0 in.
114.3 mm
4.5 in.
438.2 mm
17.25 in.
387.4 mm
15.25 in.
195.3 mm
7.69 in.
79.4 mm
3.125 in.
SIDE VIEW
Vertical Range
TOP VIEW
Horizontal Range
TOP VIEW
Arm Folded
8623266_08
