Kayenne XL Package — Installation and Service Manual 49
Control Panel Assembly
Insert Modules:
• Connect the Cat 6 style cable at the lower surface of the module before
inserting the module. The cable should be looped in order to avoid
damage.

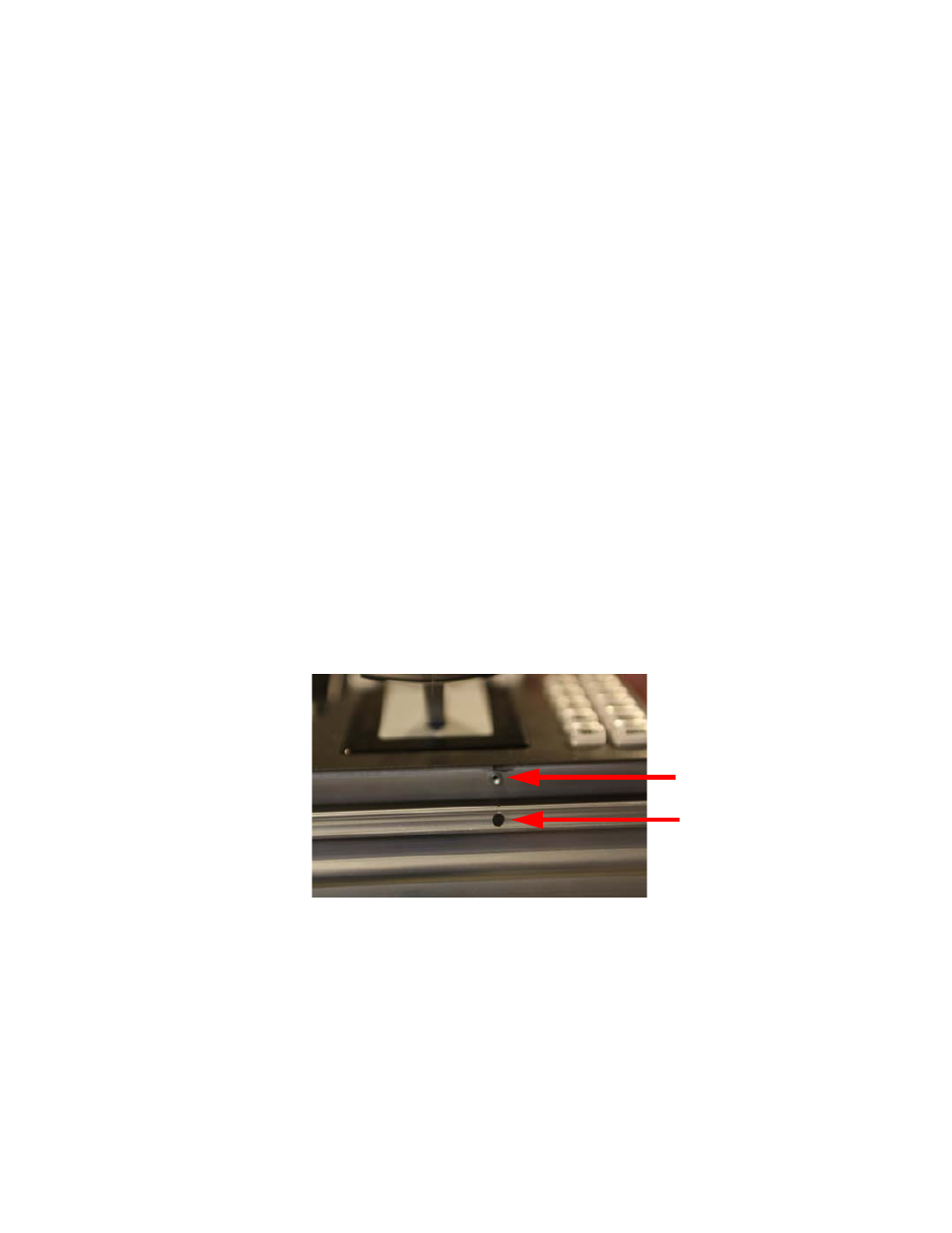

At the front edge of the module there are alignment pins, which must insert
in respective holes in the module tray. If the pins are in the right place, the
module can be tilted easily downwards. A click can be heard when prop-
erly engaged.
alignment pin
hole
Note Do not push on display menus or buttons to seat a module, as these items
could crack. Instead, push on the top edge of the gray surface above the
buttons or displays to seat the modules.
