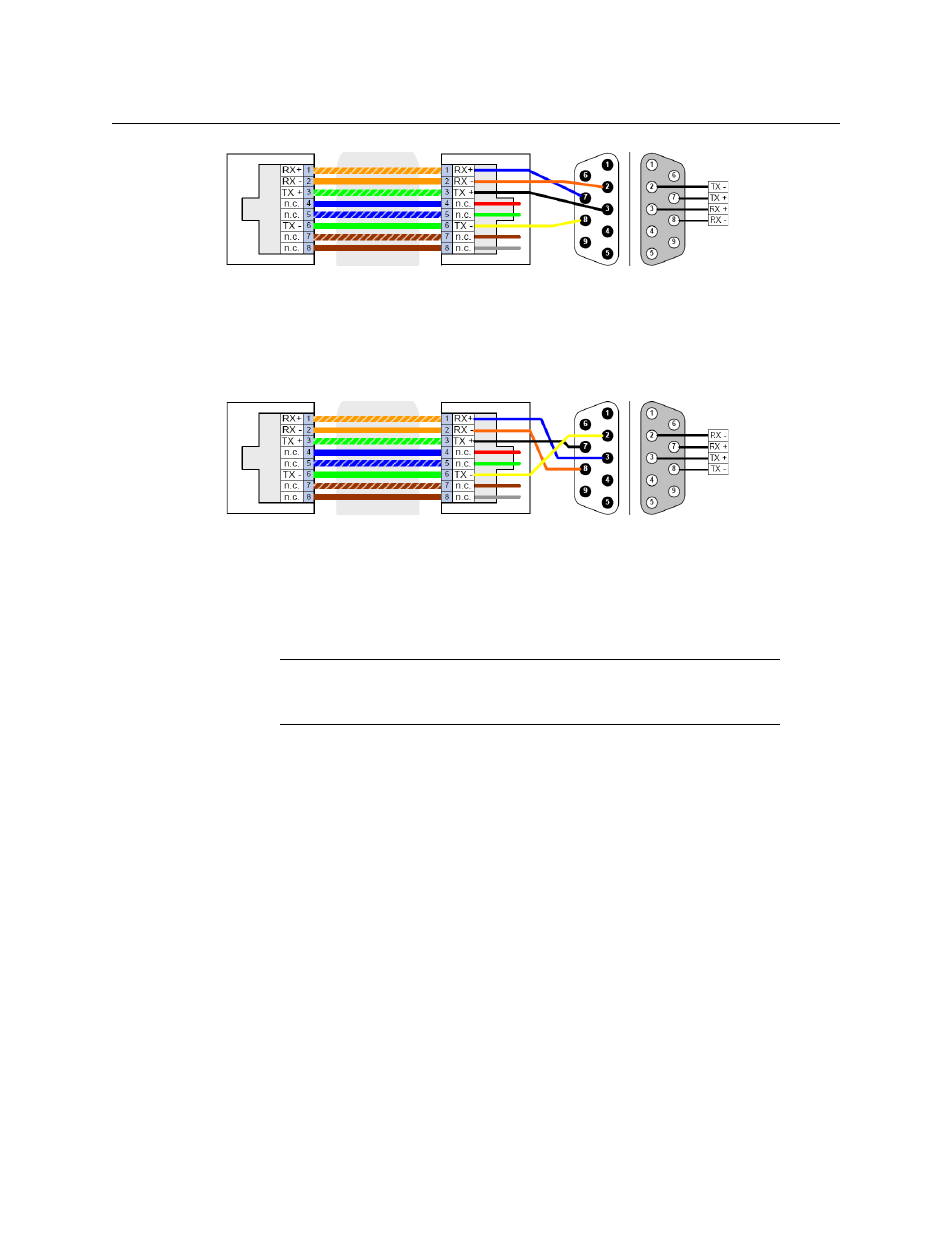

Standard wiring between multiviewer and devices wired to SMPTE “slave” specification (e.g. most
routers, Ross Synergy switchers, Nevion ETH-CON)
Standard wiring between multiviewer and devices wired to SMPTE “master” specification (e.g. Philips
Jupiter router control system, Grass Valley Presmaster PCS)
For more information about RS-422 specifications, see RS-422 , on page 29. For more
information about RS-422 serial connections, see “Serial Connections” in the “Routers”
chapter of the Kaleido-X User’s Manual.
Maintenance
Cleaning the Air Filter
Occasionally, the air filter has to be cleaned in order to maintain proper ventilation. The air
filter is located in the front cover of the Kaleido-X16 frame. The filter may be cleaned
without removing it from the cover.
Note: The two RS-422 ports on the Kaleido-X16 side have no ground pin.
Using the appropriate DE-9S-to-RJ-45 adapter, an external device should be
able to communicate with a Kaleido-X16 despite the lack of a ground.
Pinout of each RS-422
port’s RJ-45 connector
on the multiviewer
Pinout of straight adapter (Grass
Valley part no. 1737-3000-102)
RJ-45 DE-9 male DE-9 female
Pinout of RS-422
connector on SMPTE
slave device
Pinout of each RS-422
port’s RJ-45 connector
on the multiviewer
RJ-45 DE-9 male DE-9 female
Pinout of crossover adapter (Grass
Valley part no. 1792-3700-100)
Pinout of RS-422
connector on SMPTE
master device
