12
Kaleido-X16 Installation
Inputs
Inputs
Video Signals

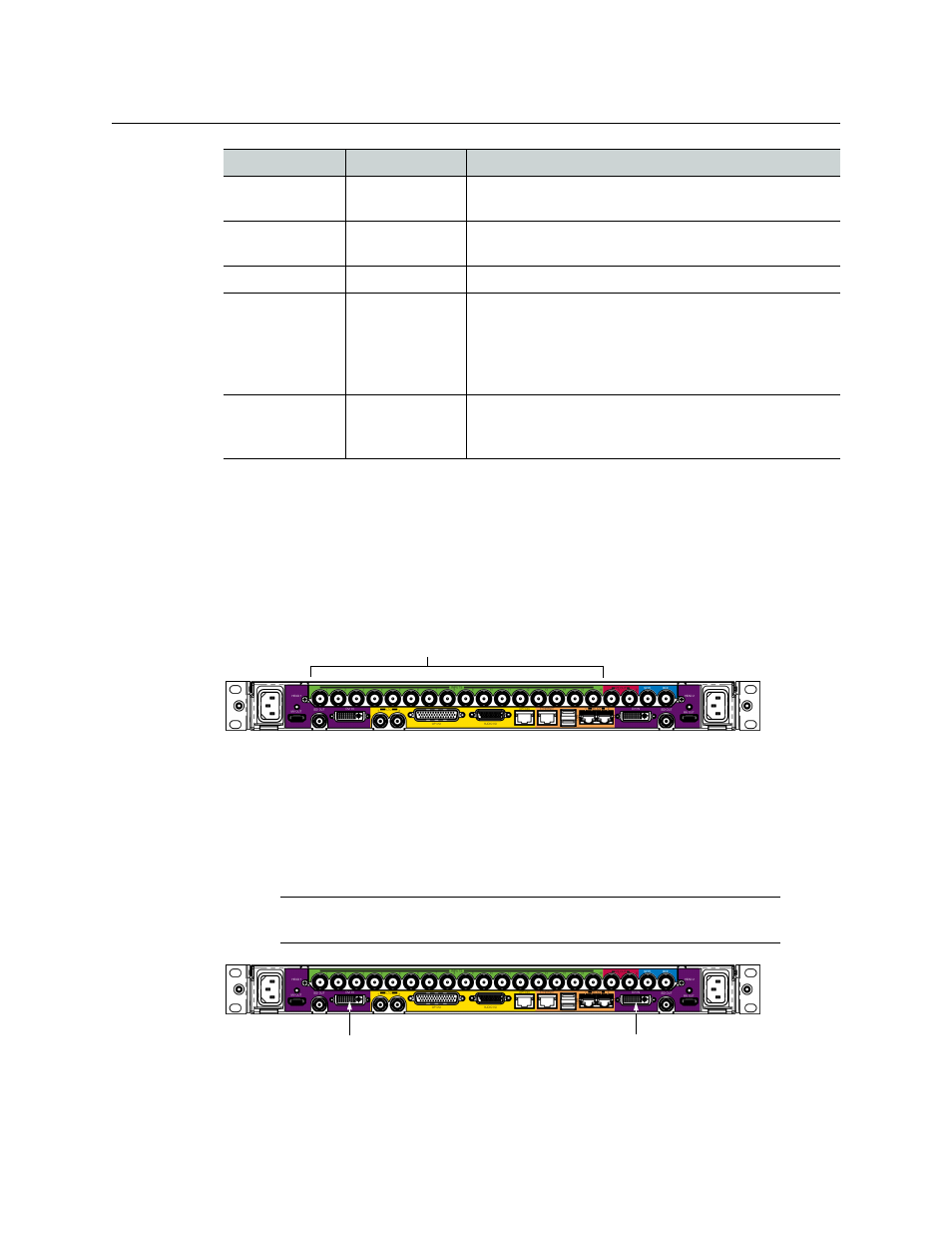

The 16 BNC Input connectors located on the Kaleido-X16 frame’s rear connector panel
support HD/SD/3 Gbps SDI or composite video inputs 1 to 16 (see
Video Signal Inputs , on
page 23 for specification details).
Graphic Signals
The Kaleido-X16-D supports two digital DVI inputs, one for each of two heads (the
Kaleido-X16-S supports a single DVI input). The DVI IN connectors on the rear panel are
female, dual-link DVI-I universal connectors. The supported signal and cabling for this
connection is single-link DVI-D (see
DVI Graphic Inputs , on page 24 for specification
details).
AUDIO I/O HD-26 (female) Supports two AES3 audio outputs or two analog audio
outputs for monitoring.
SDTI BNC Multiplexed audio from an external audio box (Audio
Bridge Terminal).
ETHERNET RJ-45 100 Base-T Ethernet connection.
USB USB Connect a mouse, keyboard, or USB flash memory for
software upgrade or data backup.
Note: There are three USB ports, one on the front of the
frame (behind the front cover) and two on the rear
connector panel.
RS-422 RJ-45 (see
RS-422 , on
page 20)
Connect to an RS-422 (SMPTE ST 207, EBU-3245) or RS-
485 device or network.
Connector label Connector type Function
Note: The two DVI inputs cannot be crossed nor combined. That is, DVI IN 1
must output on Head 1, and DVI IN 2 must output on Head 2.
BNC connectors (16) for SD-SDI, HD-SDI,
3Gbps-SDI, and Analog Composite Inputs
DVI-D In1 DVI-D In2
