18
Kaleido-X16 Installation
Control

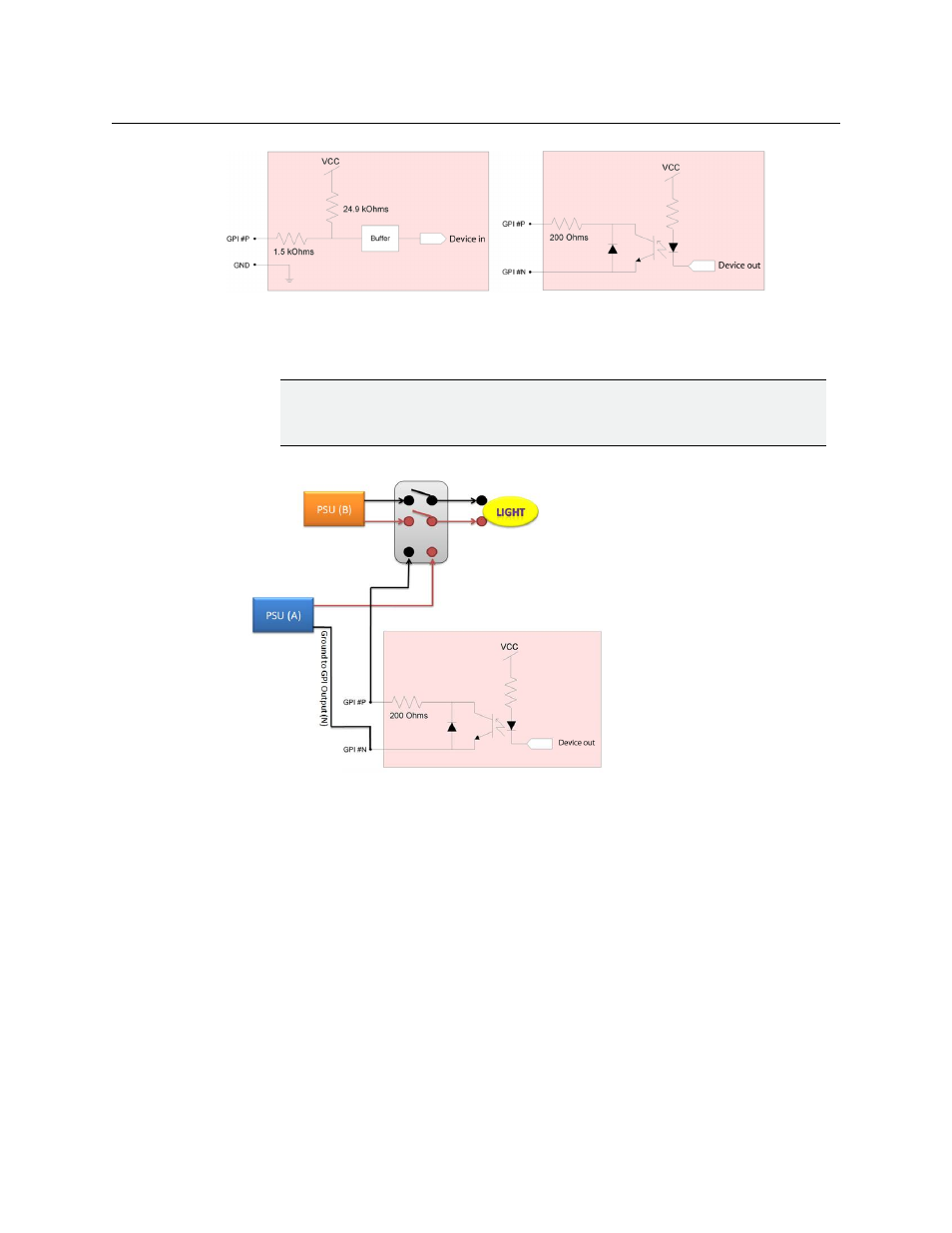

You should ensure your GPI physical connections are well established. In the following
example, the goal is to trigger a relay and light up a light.
To facilitate cabling of the GPI inputs and outputs, a terminal block adapter is available
separately (order code KXA-TBA-44). The GPI Terminal Block Adapter accommodates up to
44 terminal block connections using positive and negative terminal connections. Each
column on the terminal block has 6 positive and 6 negative terminal connections that
correspond to each pin position. Negative pins (labelled with an N) on the Terminal Block
Adapter are not used as connections. Positive pins (labelled with a P) and Ground pins
(labelled with a GND) correspond to GPI input connections:
CAUTION
In the example, below, make sure your P and N connections are in the proper
polarity otherwise your GPI output will always be in the ON state.
GPI configured as INPUT GPI configured as OUTPUT
