20
Kaleido-X16 Installation
Control
USB
The Kaleido-X16 has three USB 1.0 connectors (see USB , on page 29 for specification
details). Connect a mouse, keyboard, or USB flash memory for a software upgrade or data
backup. Two connectors are on the rear connector panel, and one is on the front of the
frame behind the front cover.

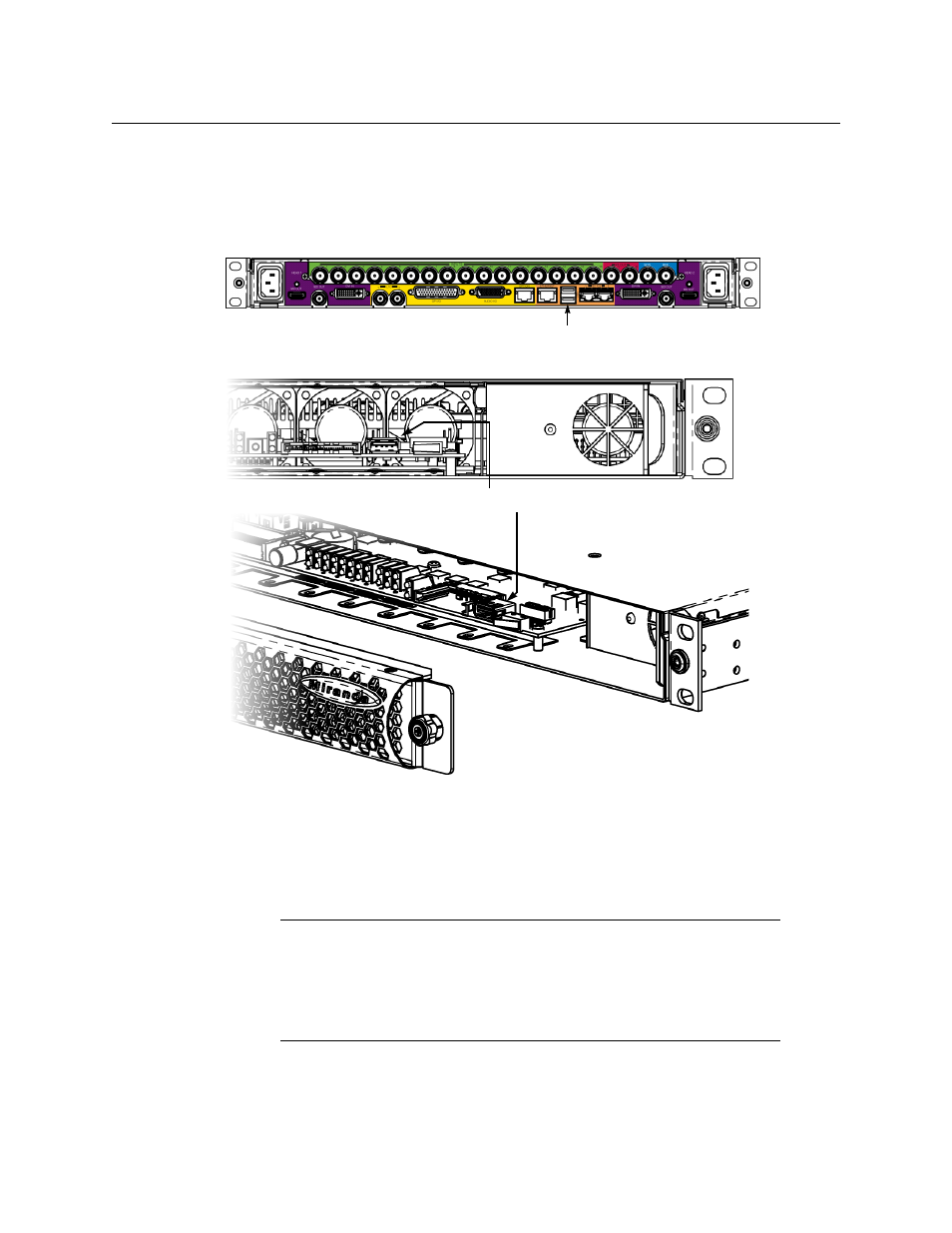

Two USB connectors on the rear panel
One USB connector on the front of the frame
RS-422
The Kaleido-X16 supports two RS-422 serial inputs over RJ-45 connectors. These inputs
allow the Kaleido-X16 to connect to external serial devices such as a router, production
switcher, or router controller.
The pinout for the RS-422 signals on the Kaleido-X16’s RJ-45 connectors, and the wiring
diagrams for the appropriate adapters, are shown here:
Note: The Kaleido-X16’s two RS-422 ports each have an RJ-45 connector in
order to preserve space on a busy panel. The RS-422 interface specifies a
DE-9 connector, so if you are using this interface, you will require a
DE-9-to-RJ-45 adapter. Grass Valley supplies two adapter models, correctly
wired for this application: a straight adapter (part no. 1737-3000-102), and a
crossover adapter (part no. 1792-3700-100).
Two USB connectors
USB (1) connector on front of Kaleido-X16
