Page 27
15
Kaleido-X16
Hardware Description & Installation Manual

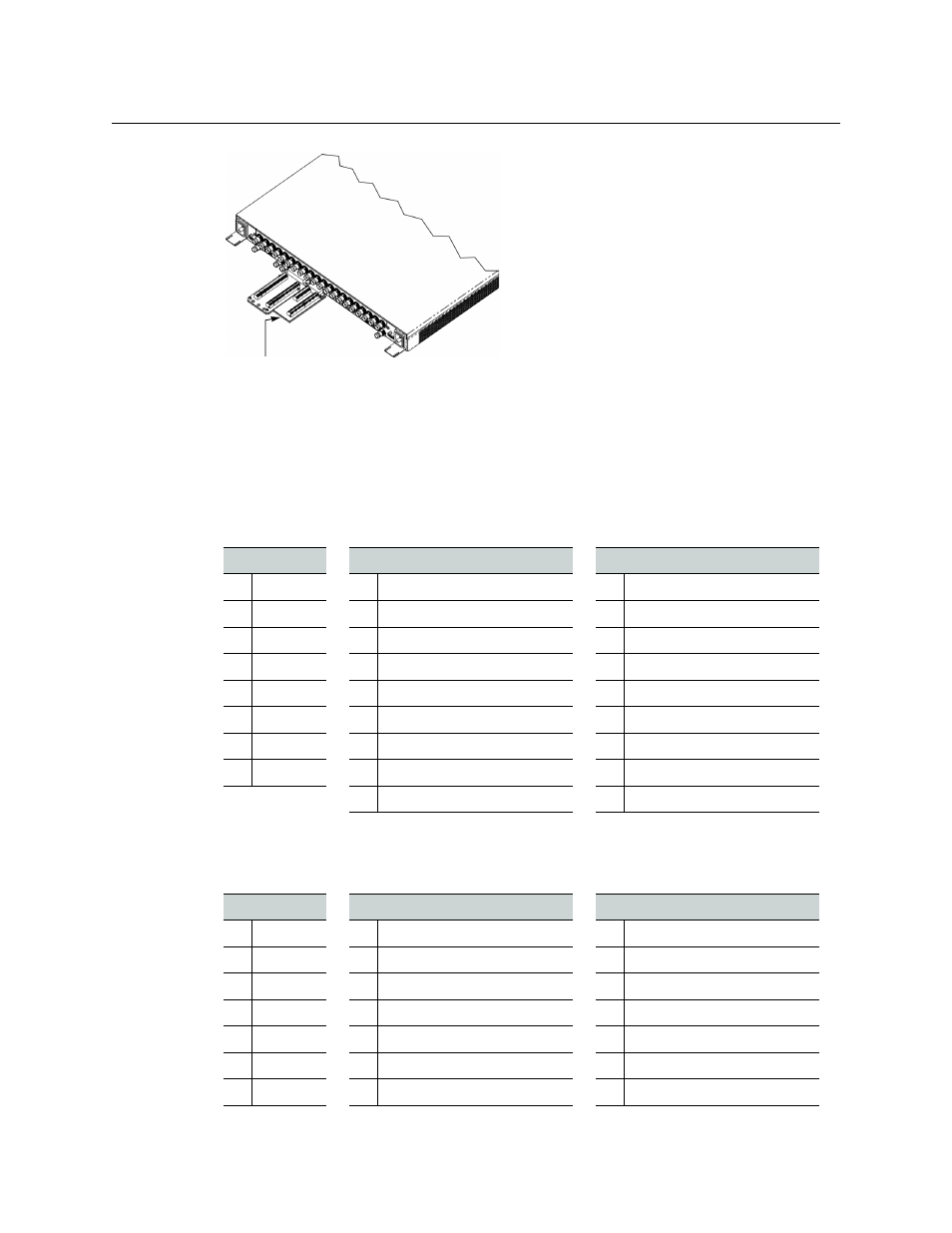

Audio I/O Terminal Block Adapter installed in rear connector panel
The pinout of the Audio I/O terminal block adapter (TBA) depends on whether you have a
single-head or dual-head Kaleido-X16 model.
Audio I/O TBA Pinout on the Kaleido-X16-D
The Audio I/O TBA pinout on the Kaleido-X16-D is as follows:
Audio I/O TBA Pinout on the Kaleido-X16-S
The Audio I/O TBA pinout on the Kaleido-X16-S is as follows:
Bottom row
Center row
Top row
19 GND
10 AES Out 1 (+)
1
AES Out 1 (-)
20 GND
11 AES Out 2 (+)
2
AES Out 2 (-)
21 GND
12 GND
3
GND
22 GND
13 Analog Left Out 1 (+)
4
Analog Left Out 1 (-)
23 GND
14 Analog Right Out 1 (+)
5
Analog Right Out 1 (-)
24 GND
15 Analog Left Out 2 (+)
6
Analog Left Out 2 (-)
25 GND
16 Analog Right Out 2 (+)
7
Analog Right Out 2 (-)
26 GND
17 PC In 1 Left (not supported)
8
PC In 1 Right (not supported)
18 PC In 2 Left (not supported)
9
PC In 2 Right (not supported)
Bottom row
Center row
Top row
19 GND
10 AES 1 (+)
1
AES 1 (-)
20 GND
11 NC
2
NC
21 GND
12 GND
3
GND
22 GND
13 Analog Left Out 1 (+)
4
Analog Left Out 1 (-)
23 GND
14 Analog Right Out 1 (+)
5
Analog Right Out 1 (-)
24 GND
15 NC
6
NC
25 GND
16 NC
7
NC
Audio I/O Terminal
Block Adapter
