3
Kaleido-X16
Hardware Description & Installation Manual
The Kaleido-X16 system is available in two model types: a single-head model ( Kaleido-X16 -S)
and a dual-head model ( Kaleido-X16 -D). Throughout this manual, Kaleido-X16 refers to both
models unless it is necessary to distinguish the single-head model from the dual-head
model.
Kaleido-X16-D
There are two heads (Head 1 and Head 2) on the dual-head Kaleido-X16 ( Kaleido-X16 -D). The
Input and Output connections are as follows.

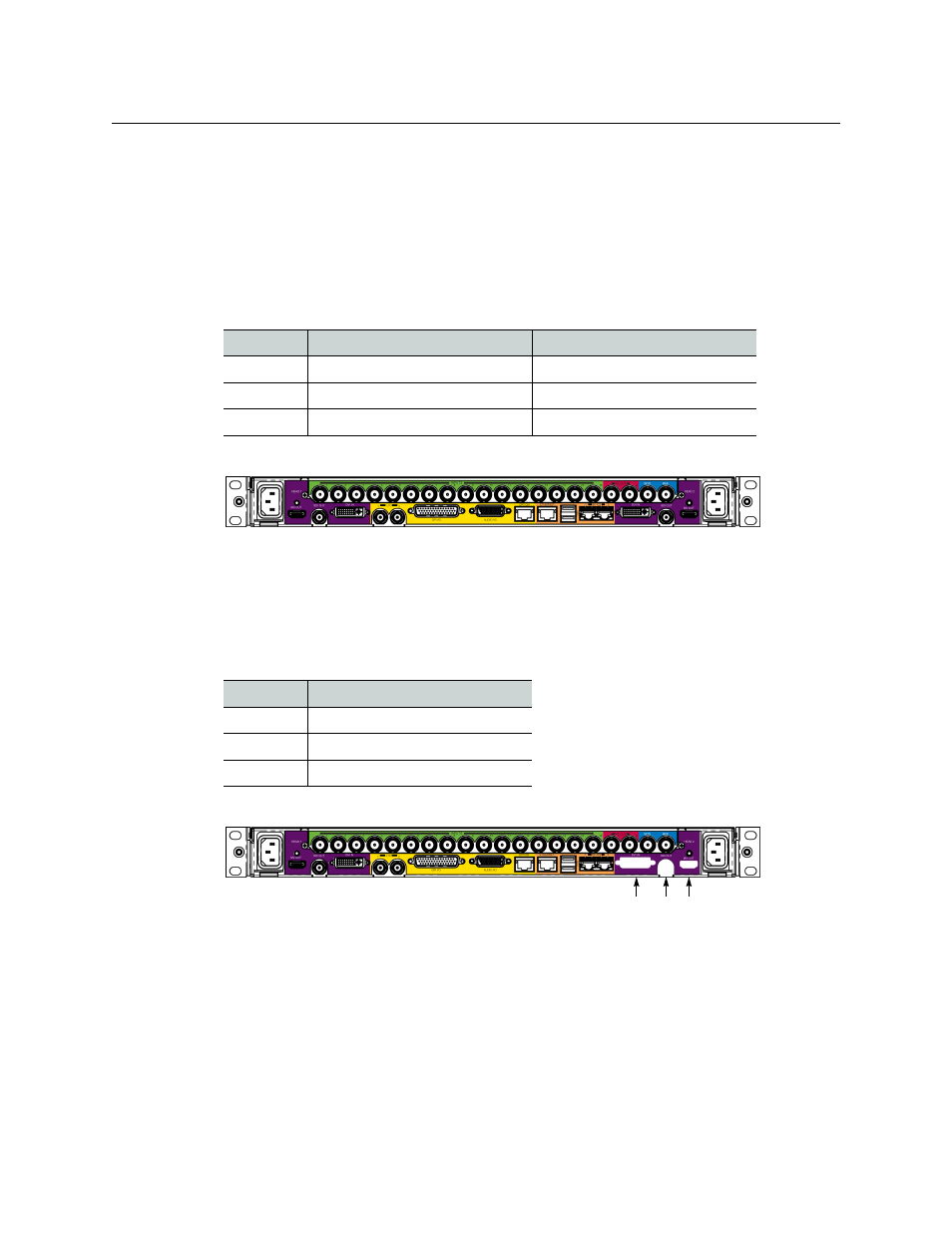

The rear connector panel for this model is displayed, below:
In addition to the difference in the number of output heads, the Audio I/O TBA pinout is
different between the two models (see
Audio I/O TBA , on page 14 for details).
Kaleido-X16-S
There is one head (Head 1) on the single-head Kaleido-X16 ( Kaleido-X16 -S). The Input and
Output connections are as follows.
The rear connector panel for this model is displayed, below:
In addition to the difference in the number of heads, the Audio I/O TBA pinout is different
between the two models (see
Audio I/O TBA , on page 14 for details).
Connector Number of connectors on Head 1 Number of connectors on Head 2
MV OUT 1 1
SDI OUT 1 1
DVI IN 1 1
Connector Number of connectors on Head 1
MV OUT 1
SDI OUT 1
DVI IN 1
No Head 2 connectors
(DVI IN2, SDI OUT2, MV OUT2)
