LDK 5417 + LDK 4417 User’s Guide | Base Station controls 32

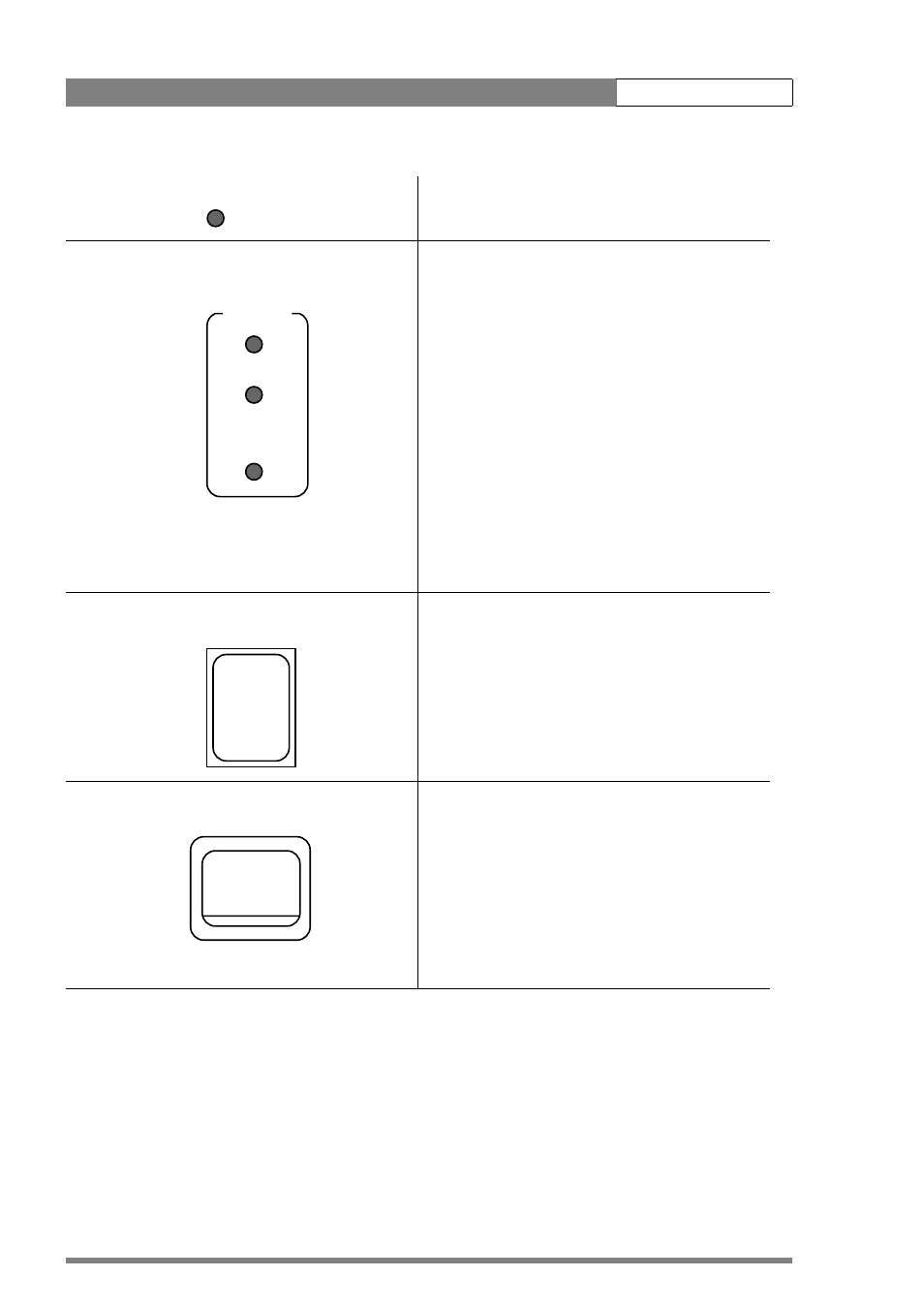

4. «RCP» indicator light This indicator light lights to indicate activity on the link
between Camera and OCP connected on the «REMOTE»
receptacle of the Base Station.
5. «CAMERA: ON, OFF, CABLE OPEN» indicator
lights
ON:
Normally and permanently lit, this light indicates that the
camera is powered.
This indicator light when flashing indicates excessive
consumption at the camera. The current in the triaxial cable is
then between 3 A and 3.3 A. Above 3.3 A, the Base Station
power supply cuts out. rearming is obtained automatically 4
times. If the overload persists, the cut-out becomes
permanent. An equipment on/off is then required to start the
equipment operating again.
OFF:
This permanently lit indicator light indicates that the camera
power is off.
When flashing, this indicator light indicates that the camera
consumption is excessively low. The current in the triaxial
cable is then between 0.1 A and 0.4 A.
CABLE OPEN:
This normally extinguished indicator light indicates that the
triaxial cable is not connected to the camera or to the back
panel of the Base Station.
6. «ON AIR» indicator light When lit, this light indicates that the equipment is switched to
the antenna («ON AIR1»).
7. «MAINS» switch The equipment master on/off switch:
«I»: The equipment is operating.
«O»: The equipment is not operating.
RCP
CAMERA
ON
OFF
CABLE
OPEN
ON AIR
MAINS
I
O
