LDK 5417 + LDK 4417 User’s Guide | Adapter connectors 12
4.1 Triax connector

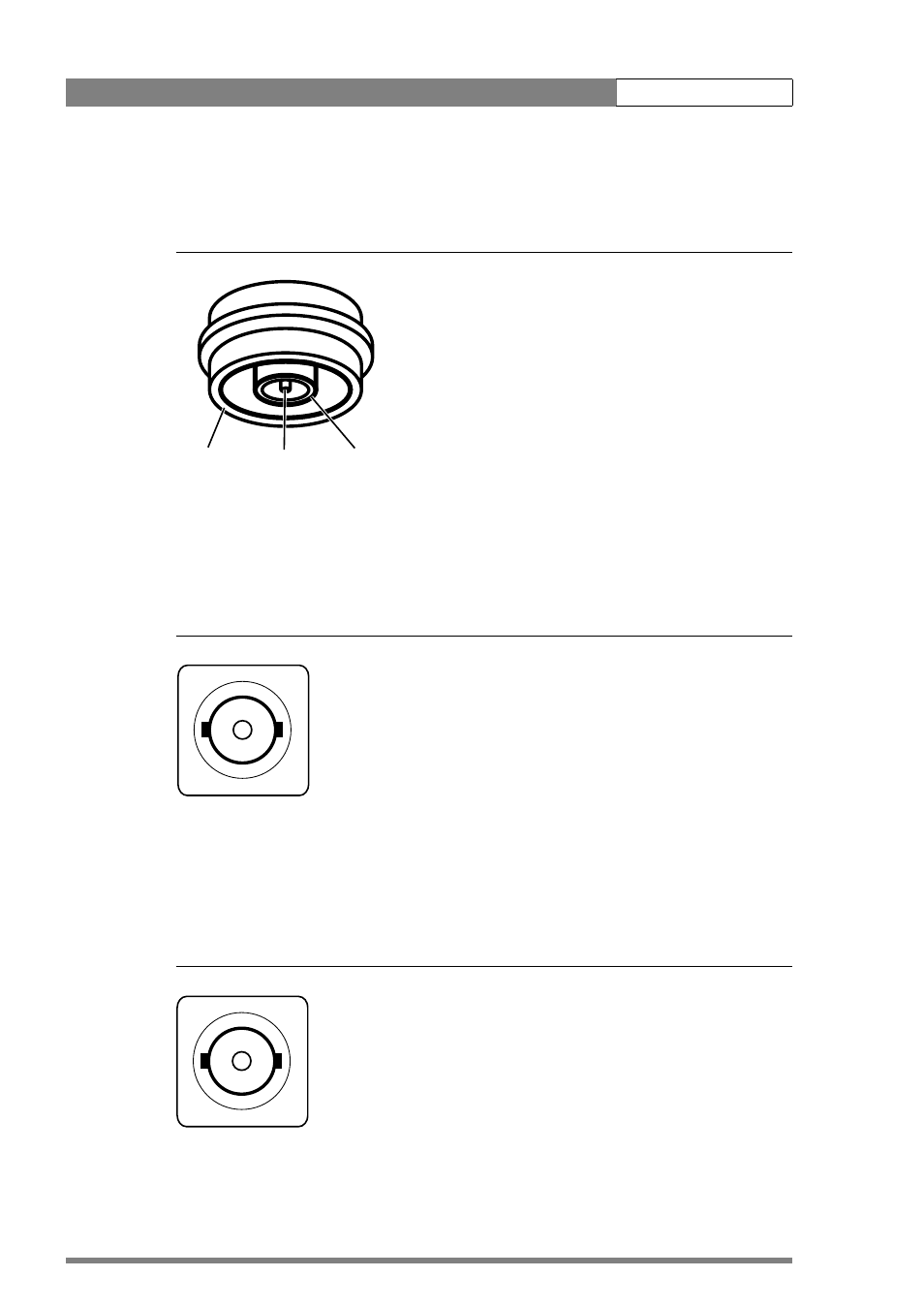

Figure 1-7. Triax connector
4.2 Ext1/Ext2 video output connector
Figure 1-8. External 1 / External 2 video output connector
4.3 Viewfinder / External 1 video output connector
Figure 1-9. Viewfinder / External 1 video output connector
Centre pin Outer shield Inner shield
1. Centre pin: Power and signals
2. Inner shield: Return
3. Outer shield: Camera housing GND
Panel view (X100)
This socket provides a 1.0 Vpp external video signal
from the Base Station (output signal is selectable).
BNC connector: panel view (X105)
This socket provides a 1.0 Vpp output viewfinder signal
or the external 1 video signal from the Base Station.
BNC connector: panel view (X106)
