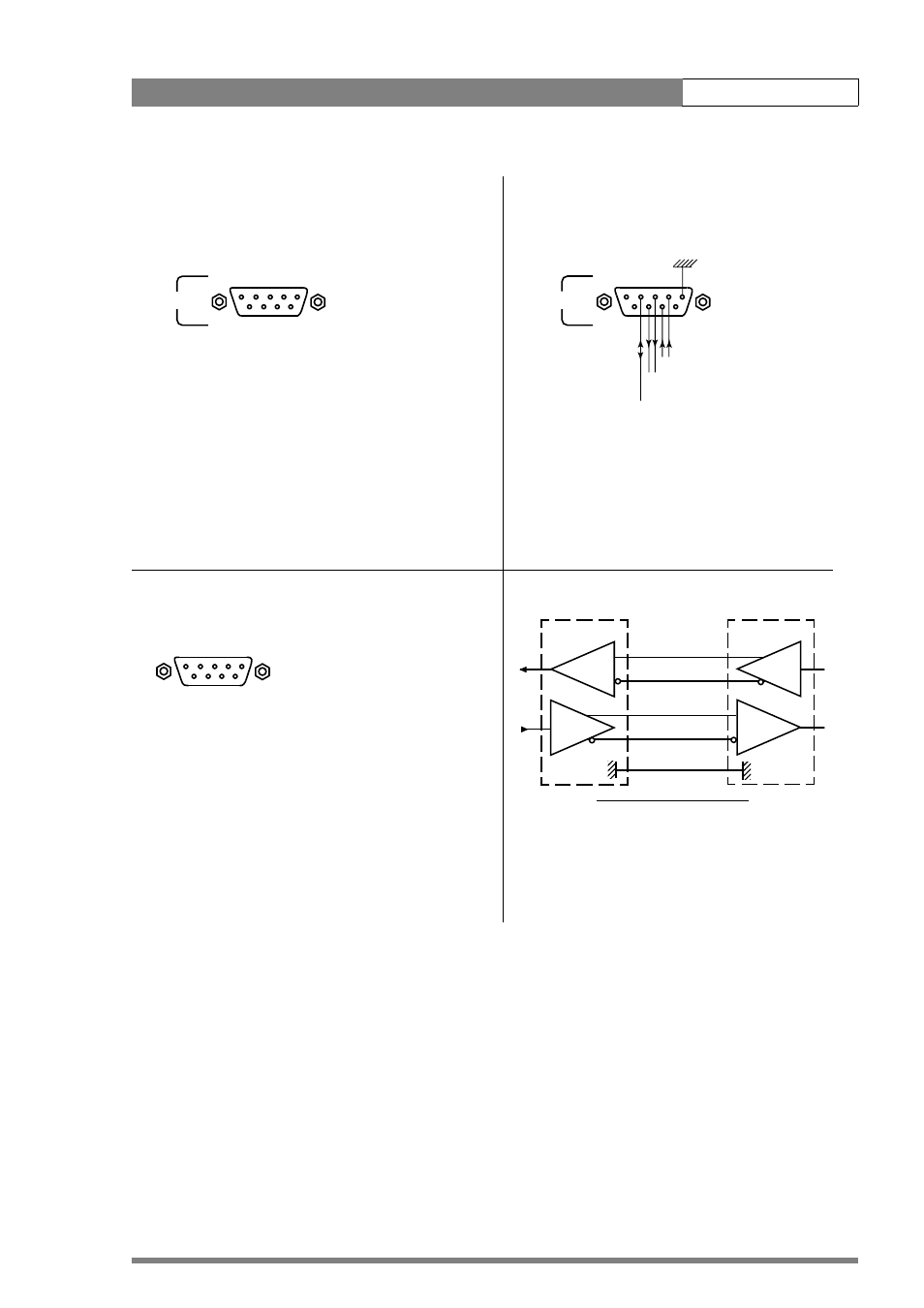

LDK 5417 + LDK 4417 User’s Guide | Base Station connections 27
«INTERCOM» receptacle
Connection of intercommunication network
between the Cameraman and producer. The nominal input and output levels are 0 dB. To alter
these levels, refer to the «INSTALLATION» Chapter 10.
The link may be «4-wire» or «RTS».
Refer to the «INSTALLATION» Chapter 10.
3. «REMOTE» receptacle
Connection of remote control panel.
The link is an RS-422 link:
The «PV RCP» 12 V voltage is used for powering the
panel (Pmax = 6W).
The «ON AIR1» and «ON AIR2» signals to the OCP and
the camera are added to the «PV RCP».
INTERCOM
1
6 9
5
Female receptacle
Type: DEP09S400T
P/N: T9001515
Corresponding socket
Type: PMD2T09+Z-
HE5-M2
P/N: 99.155.568
1 : GND
2 : IN Y
3 : OUT X
4 : CH1 RTS
5 : CH2 RTS (Not used) 6 : Not connected
7 : IN X
8 : OUT Y
9 : GND
INTERCOM
CH1
RTS
Y X
OUT
Y X
IN
1
6 9
5
REMOTE
1
6 9
5
Female receptacle
Type: DEP09S400T
P/N: T9001515
Corresponding socket:
Type: PMD2T09+Z-HE5-M2
P/N: 99.155.568
1 : GND
2 : RETURN A2
3 : OUT B2
4 : GND
5 : PV RCP 6 : GND
7 : RETURN B2
8 : OUT A2
9 : GND
BS OCP
Return A
Return B
Out A
Out B
PV RCP
Ground 1
5
3
8
7
2
1
5
3
8
7
2
