3 Adapter controls

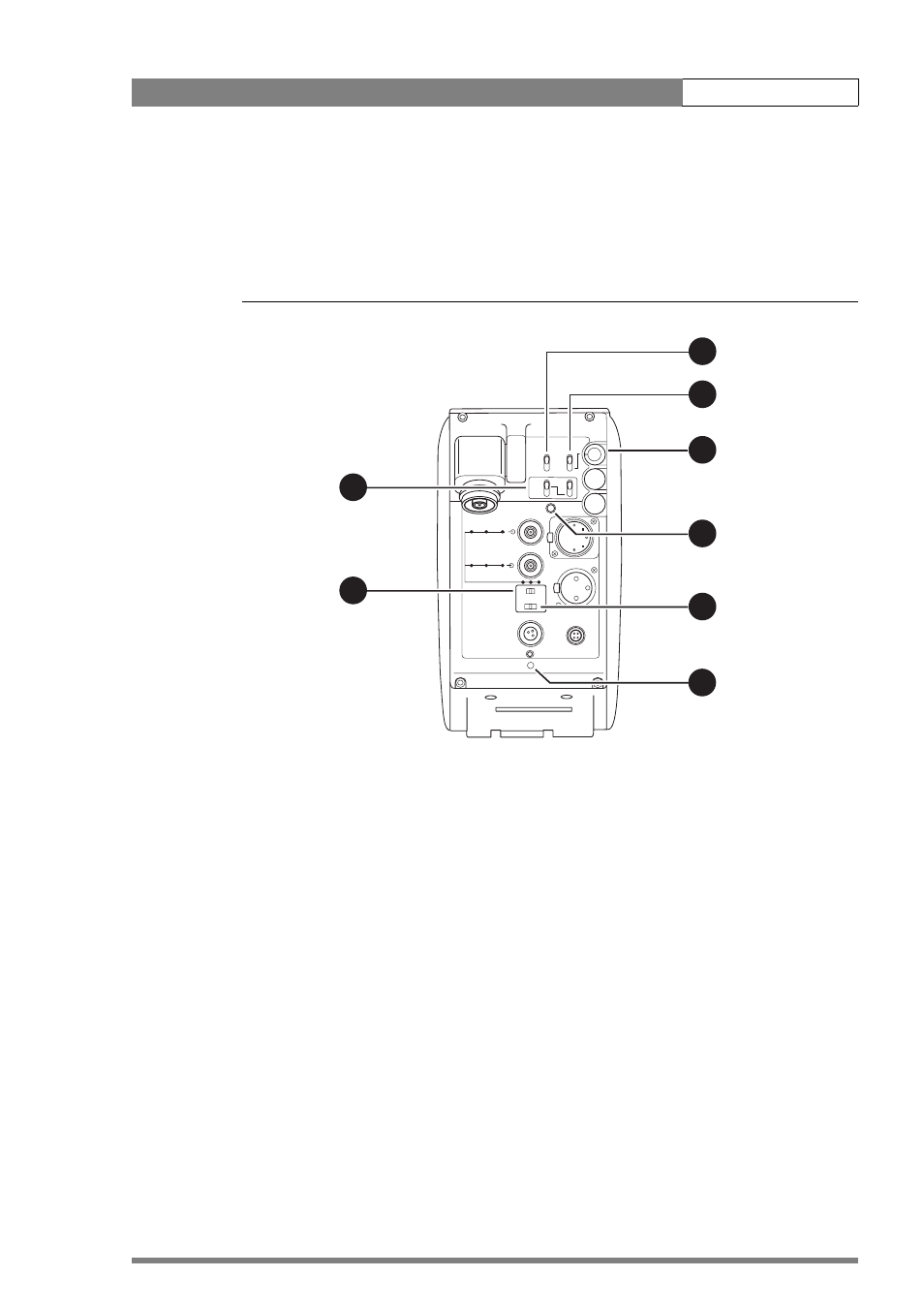

Figure 1-4. Digital Triax adapter LDK 5417 controls
3.1 Powering the camera
The power supply for the camera and Digital Triax adapter is supplied via the triax cable
from the Base Station. The power on indicator (6) lights when power is supplied and the
camera power switch is On.
An output power socket supplies +48 Vdc, 50W maximum for a converter (LDK 5930 or
LDK 5940) to supply power for a teleprompter. Refer to chapter 11“DC/DC converters“ for
more information about power converters.
Call
Mic
Front Rear 48V
Script
Light
Power on
Prompter power
Ext1 Ext2 Ext2
VF VF Ext1
Prod
Off
(Prod)
Ext1
Ext2
Front
Rear
Loc
DIGITAL TRIAX
2
1
3
4
5
8
7
6
Intercom routing switch
. Headset production volume control
selection
. Headset volume control
. Call button
5. Audio microphone switch
6. Power On indicator
7. Video output selection switch
8. Viewfinder display signal selection
