6. Attach the LH lug of the Base Station (removed in 1) to the left of the accessory rack.
7. Place the accessory in the accessory rack (accessory attachment is to be adapted
according to its type and brand).
8. Place the Base Station + accessory in the 19" rack at the desired location and attach
by means of the two lugs.
Fitting of accessory rack to the right of the Base Station
The principle is identical to the previous procedure, but the six 4 mm dia. screws joining
the two assemblies are to be fitted from inside the Base Station. This implies that the
Base Station power supply unit must be removed.
1. Remove the right-hand lug from the Base Station by unscrewing both attaching
screws.
2. Couple the accessory rack to the RH side of the Base Station, with the lugs located at
the front of the Base Station.
3. Remove the power supply unit by unscrewing the 3 attaching screws.
4. Tighten the six 4 mm dia. screws using the screwdriver from inside the Base Station
(power supply unit removed) to attach the accessory rack to the Base Station.

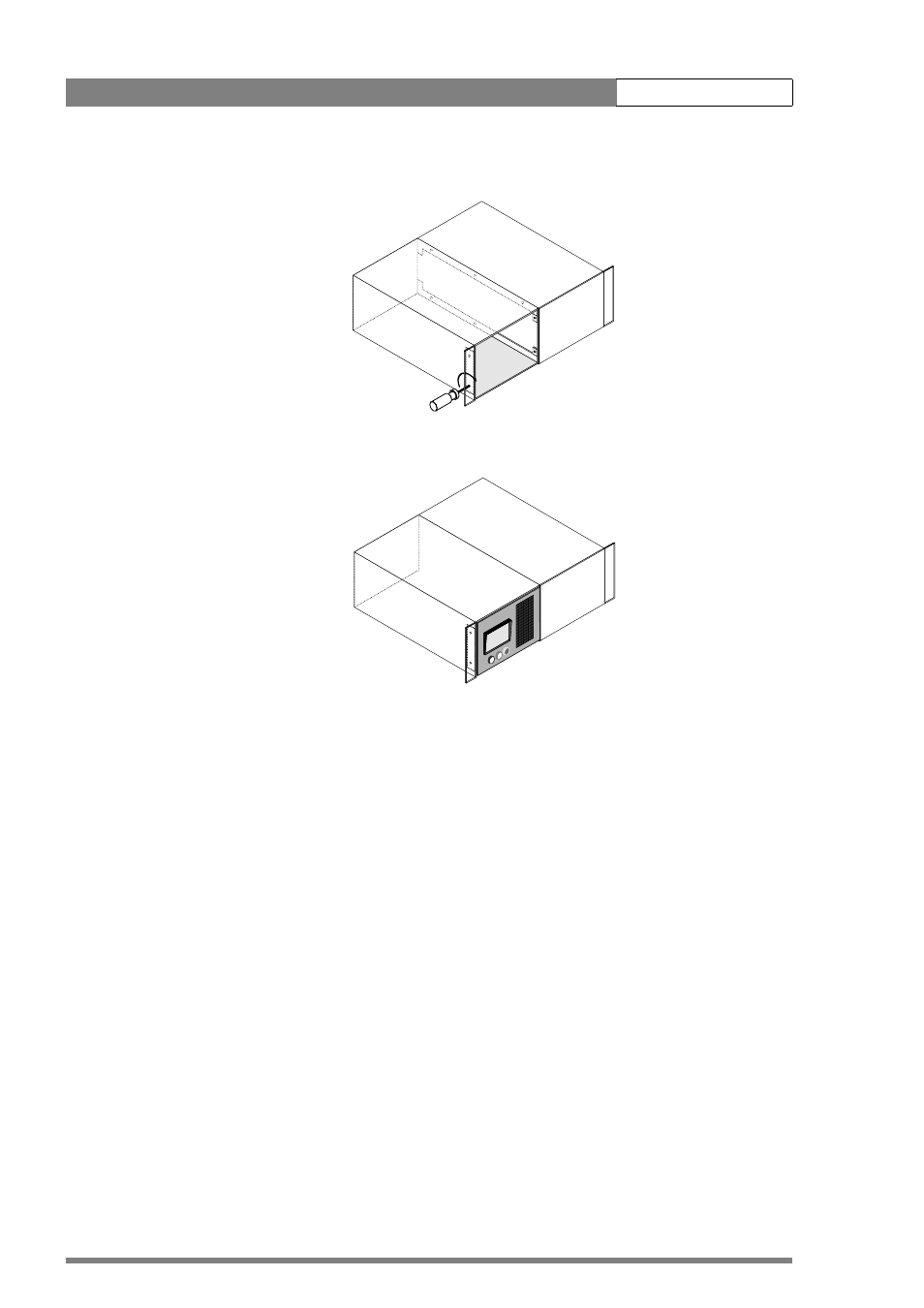

5. Place the front cover against the right-hand edge of the Base Station (only one
position correct).
6. Tighten both 3 mm dia. screws using the screwdriver from the inside of the Base
Station to attach the front cover.
7. Attach the RH lug of the Base Station (removed in step 1) to the right of the
accessory rack.
