LDK 5417 + LDK 4417 User’s Guide | Configuration 5
2 Configuration
2.1 Typical setup
A camera head with an LDK 5417 Triax adapter is connected to a LDK 4417 Base Station
using a Triax cable. The maximum length of cable that can be used without significant
degradation of the video signal is 600m (2,000 ft.) for a 14 mm Triax cable when no
prompter is used (see specifications for other values). The power supply is applied to the
Base Station and via the Triax cable to the camera.

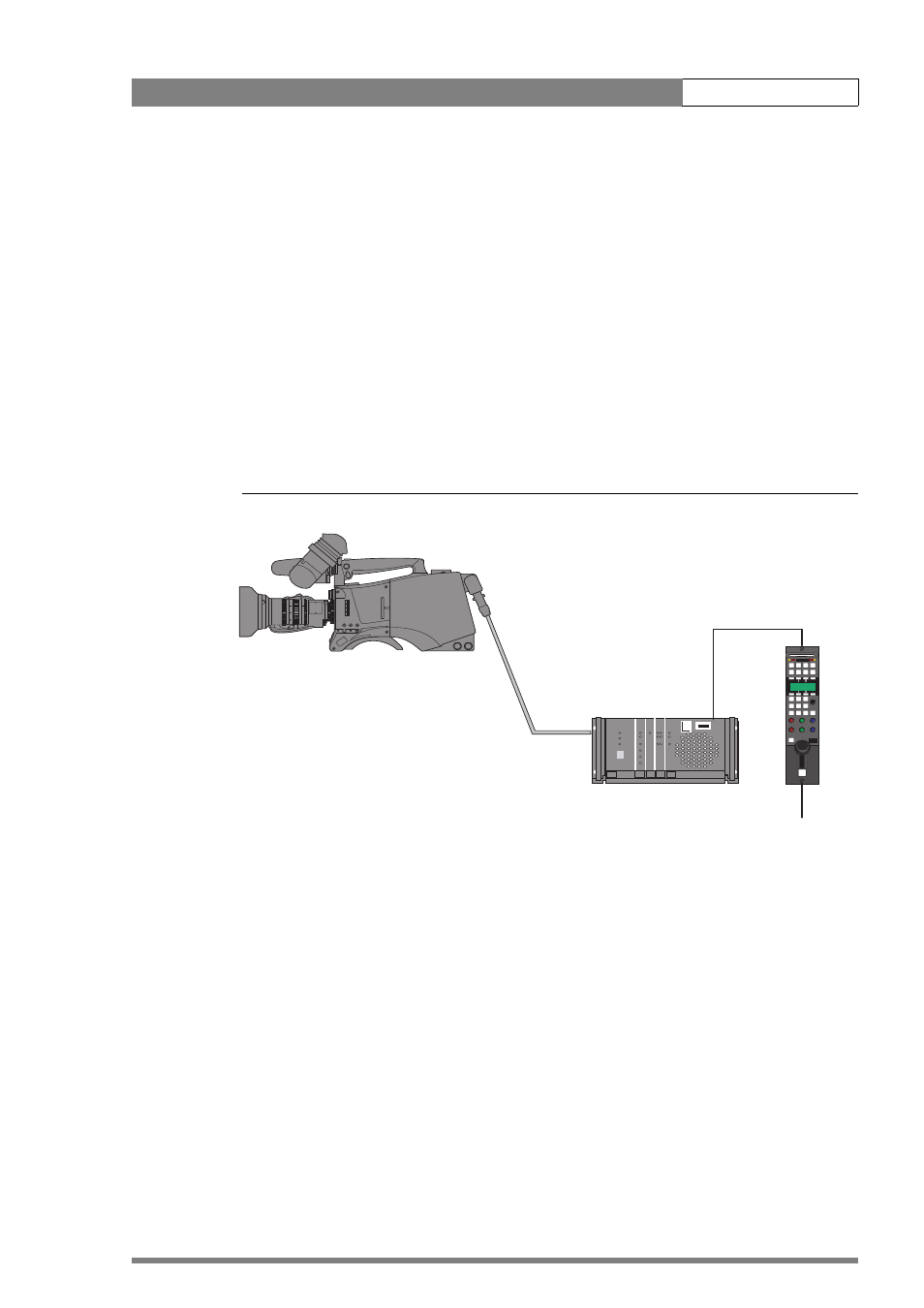

Figure 1-3. Typical Digital Triax system setup
Clear
ND1/4
ND1/16
ND1/64
Clear
Star 4P
Star 6P
Soft Focus
Smart card
Po we r on
P w el
Tracker Aux
1
2
3
4
A
B
C
D
External Power
Supply (optional)
Triax cable
OCP 400/10
remote control cable
SD Camera Head
LDK 5417 Digital Triax Adapter
LDK 4417 Digital Triax Base Station
