Place the accessory in the accessory rack (accessory attachment is to be adapted
according to its type and brand).
9.
Place the Base Station + accessory assembly in the 19" rack at the location required
and attach it using both lugs.
Fitting two Base Stations in a rack
Equipment and tools required:
•
Reference kit LDK 5107.
•
One screwdriver.

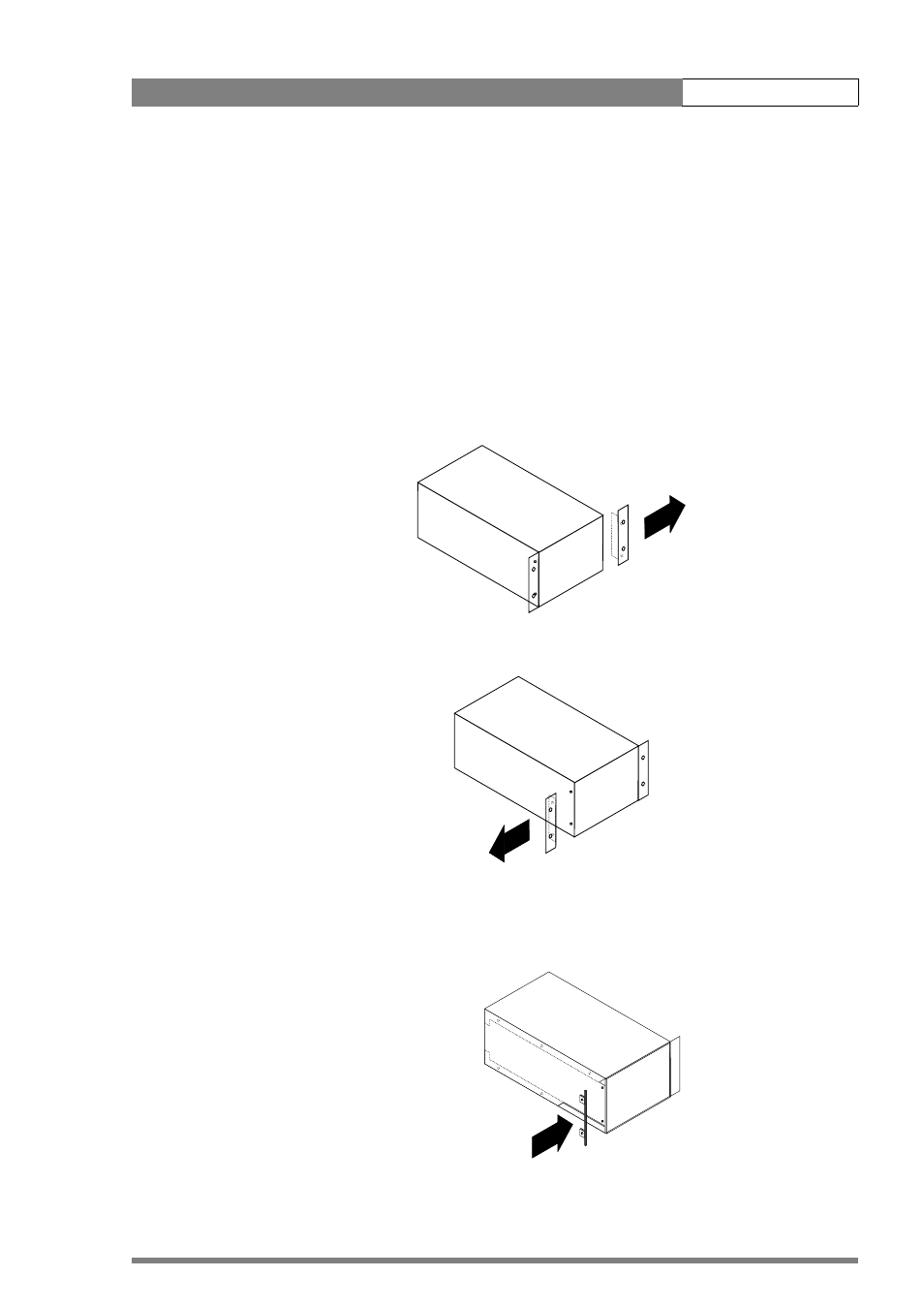

1.
Remove the right-hand lug from the Base Station located to the left by unscrewing
both the attaching screws.
2.
Remove the left-hand lug from the Base Station located on the right by unscrewing
both the attaching screws.
3.
Remove the Base Station power supply located to the left by unscrewing the 3
attaching screws.
4.
Place the front cover against the left-hand side of the Base Station located to the right
(only one position correct).
