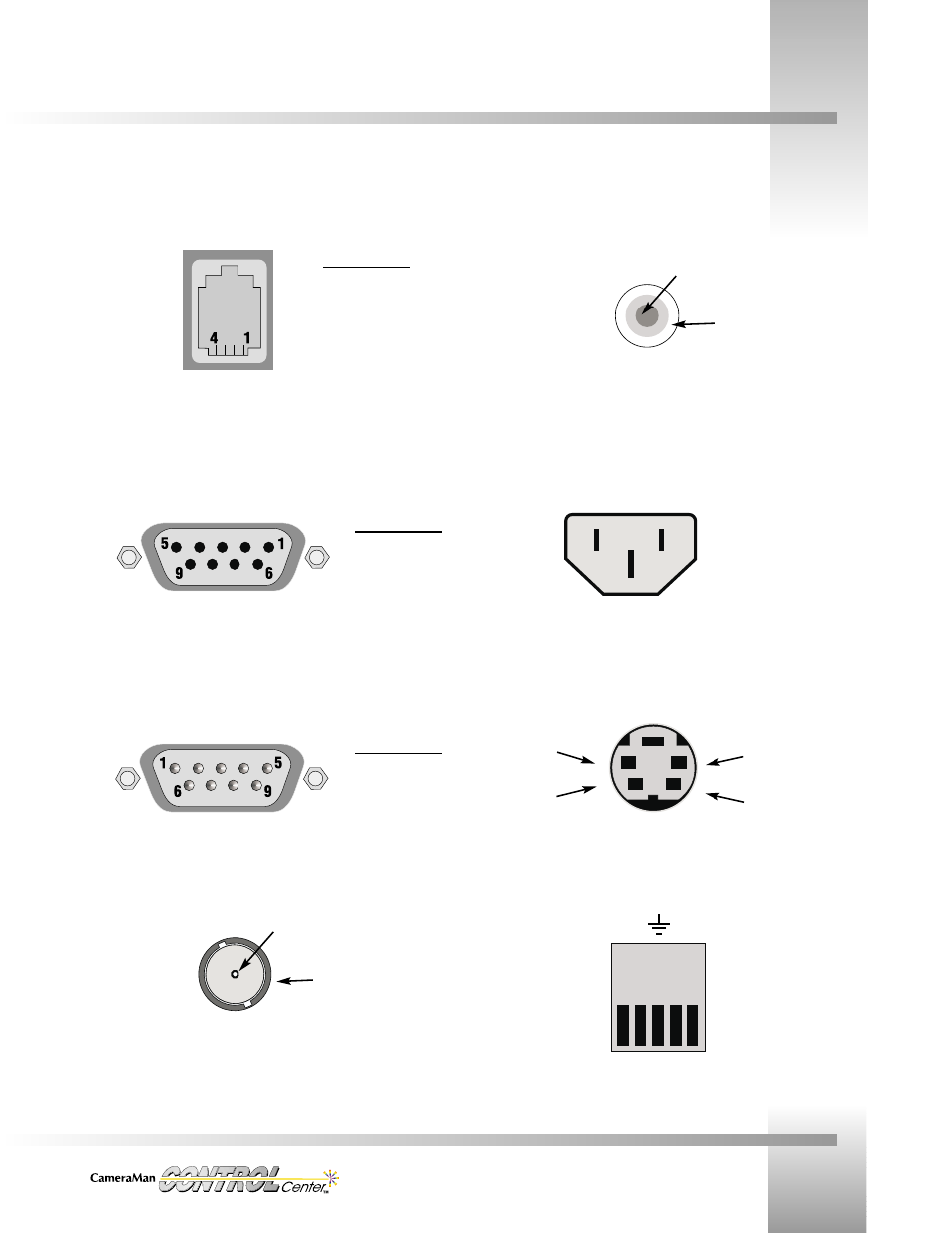

Appendix C: Pinout Diagrams
RS-485
Four position
Modular Handset
RS-232 Female D-9 Sub
Pin Signal
2 Transmit
3 Receive
5 Ground
1,4,6-9 Not Used
RS-232 Male D-9 Sub
Composite Video
In and Out port
(composite video models only)
Pin Signal
2 Transmit
3 Receive
5 Ground
1,4,6-9 Not Used
Pin Signal
1 Ground
2 Signal A
3 Signal B
4 Ground
+ 18-20 VDC
Ground
5.5mm DC A Power
Connector
Video (1Vp-p)
Ground
S-Video In and Out port
(S-Video models only)
AC Power Connector
“Phoenix”-style
audio connectors
You’ll find the following pinout connections on the back of your CameraMan CONTROL Center. These diagrams are for your
reference.
C
Y
C Ground
Y Ground
