36

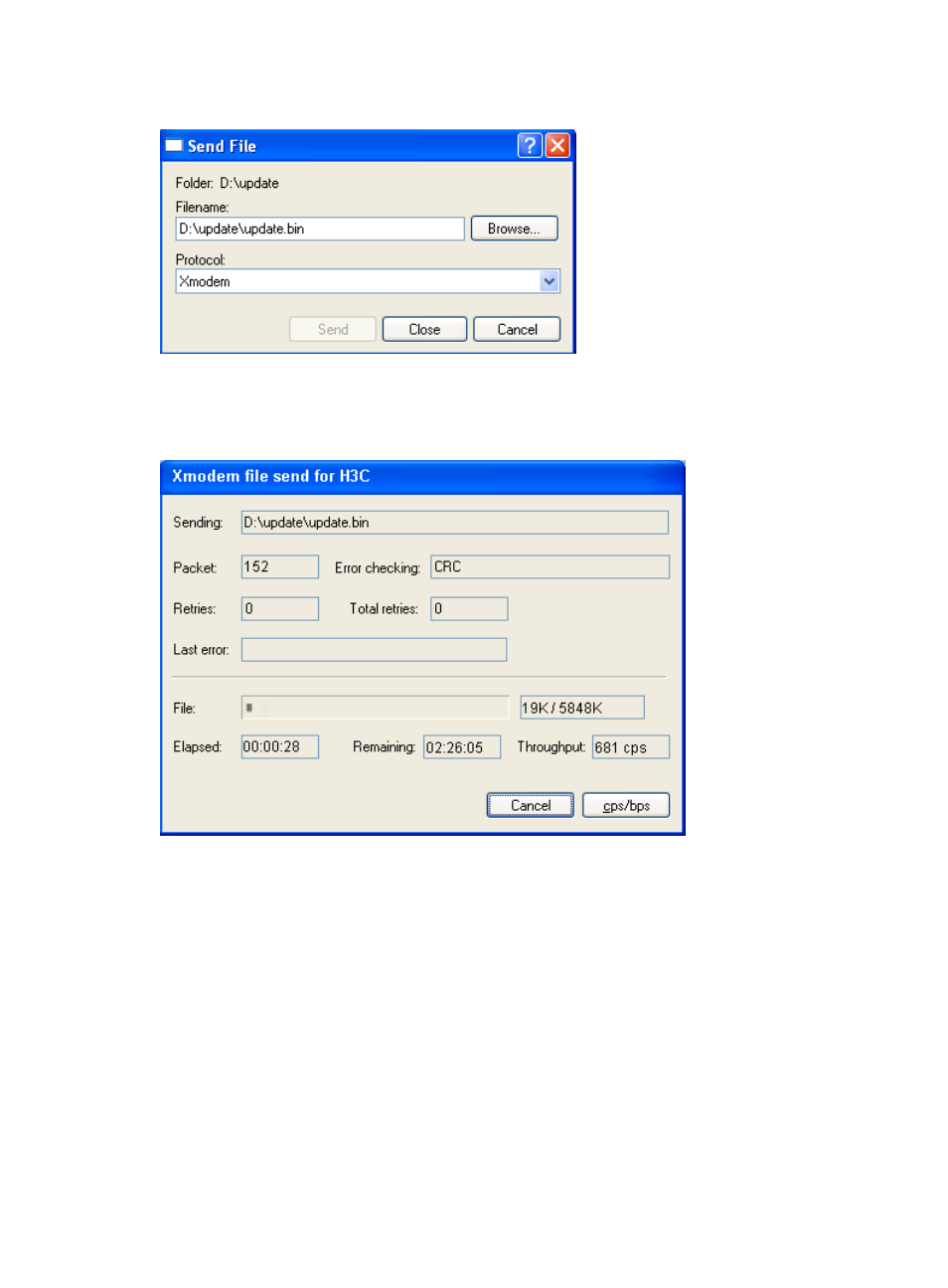

Figure 21 Send File dialog box
8. Click Browse… to select the application file to be downloaded, and select Xmodem from the
Protocol drop-down list. Then click Send. The following dialog box appears:
Figure 22 Download the file using XMODEM
Upon successful download, the system displays the following information:
Download successfully!
354944 bytes downloaded!
Updating Basic BootWare? [Y/N]Y
Updating Basic BootWare...............Done!
Updating Extend BootWare? [Y/N]Y
Updating Extend BootWare..............Done!
9. Change the baud rate on the console terminal from 115,200 bps back to 9,600 bps, and reboot
the access controller module.
