iP380 User Manual
Welltech Technology Co., Ltd.
61 / 104 2012/11/01
2.3. NAT (NAT Environment)
Provide function of [LAN, DMZ & MAC Clone, Virtual Server].

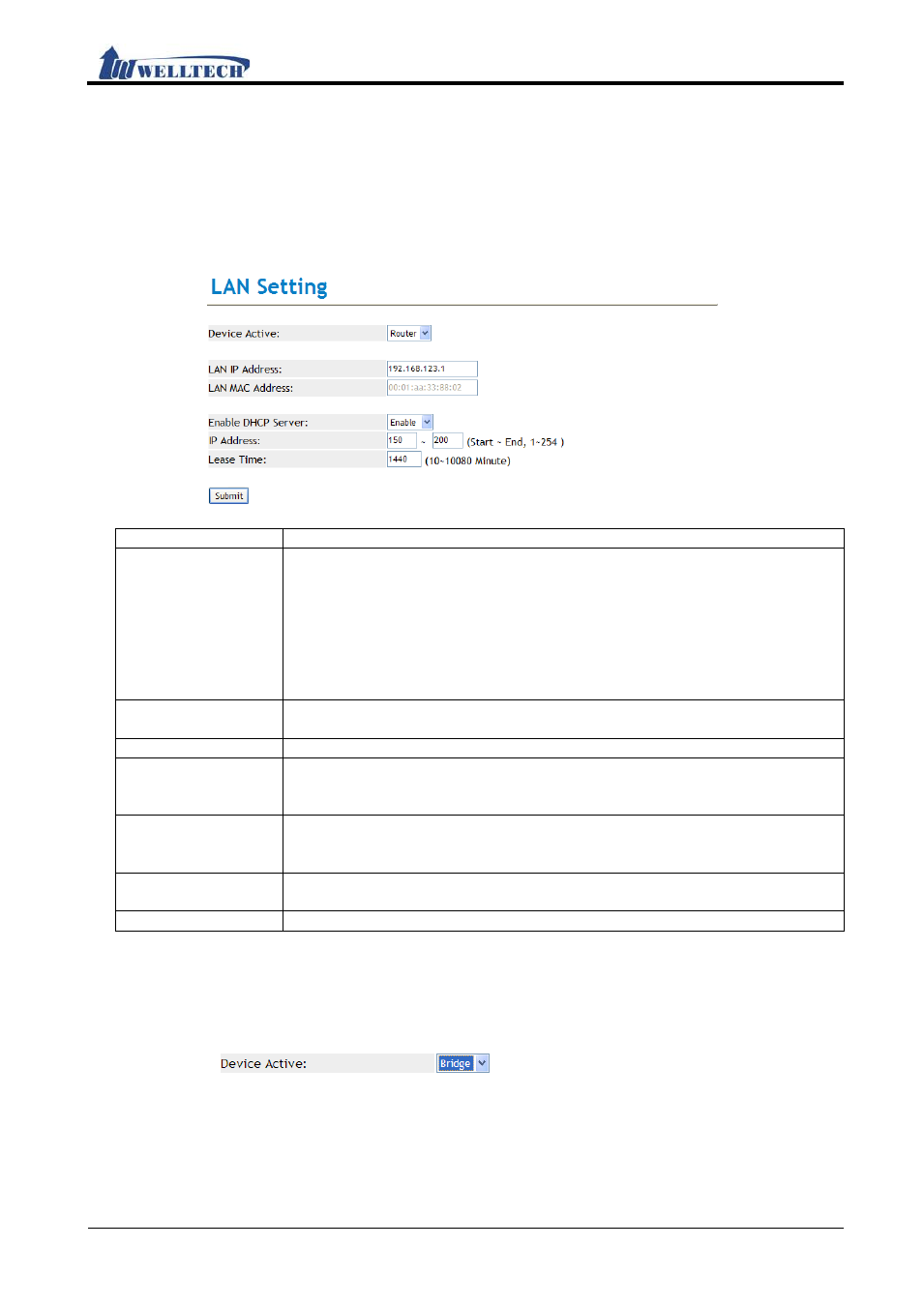

2.3.1. LAN (LAN Network Setting)
2.3.1.1. Functions
LAN Provides functions including DHCP Server.
2.3.1.2. Instruction
Item Explanation
Device Active Default: NAT.
Setup the routing function of LAN Port.
Provide options: Bridge, NAT.
Bridge: When you Setup Bridge, [WAN & LAN] Port are all in the same
IP domain, just like in the same network switch.
NAT: When you Setup NAT, [WAN & LAN] Port are in the different IP
domain. LAN Port work as DHCP server when you Enable DHCP Server
Active function.
LAN IP Address Default: 192.168.123.1.
The type is xxx.xxx.xxx.xxx of 15 bytes.
LAN MAC Address Show LAN MAD ID address.
Enable DHCP
Server
Default: Enable; When you Disable this function, LAN Port will not be a
DHCP Server.
Provide options: Enable, Disable.
IP Address Default: 150~200; Setup the IP address range of DHCP Server. This
column can only be numbers; maximum length is 3 bytes with the
range of 1~254.
Lease Time Default is 1440 (min), IP address rented deadline. Only use number,
Data setting range is 10~17820, maximum length is 5 bytes.
Submit [Button] Save the Settings.
2.3.1.3. Operate Instruction
Example 1: LAN Mode: Bridge
Step 1: In [LAN Setting] web page, Setup [Device Active: Bridge] (See Figure 3).
(Figure 3)
Step 2: In [System Status] web page, [LAN Inofrmation] was no show. (See Figure 4).
