8 – Analyze function
This unit includes an analyze function for use in the unlikely
event that trouble should occur. This function allows you to
identify the general trouble and resolve it easily without using
measurement equipment.
Using the analyze function
Follow these procedures to use the analyze function.
The analyze function can be used from the
UTILITY 2
page.

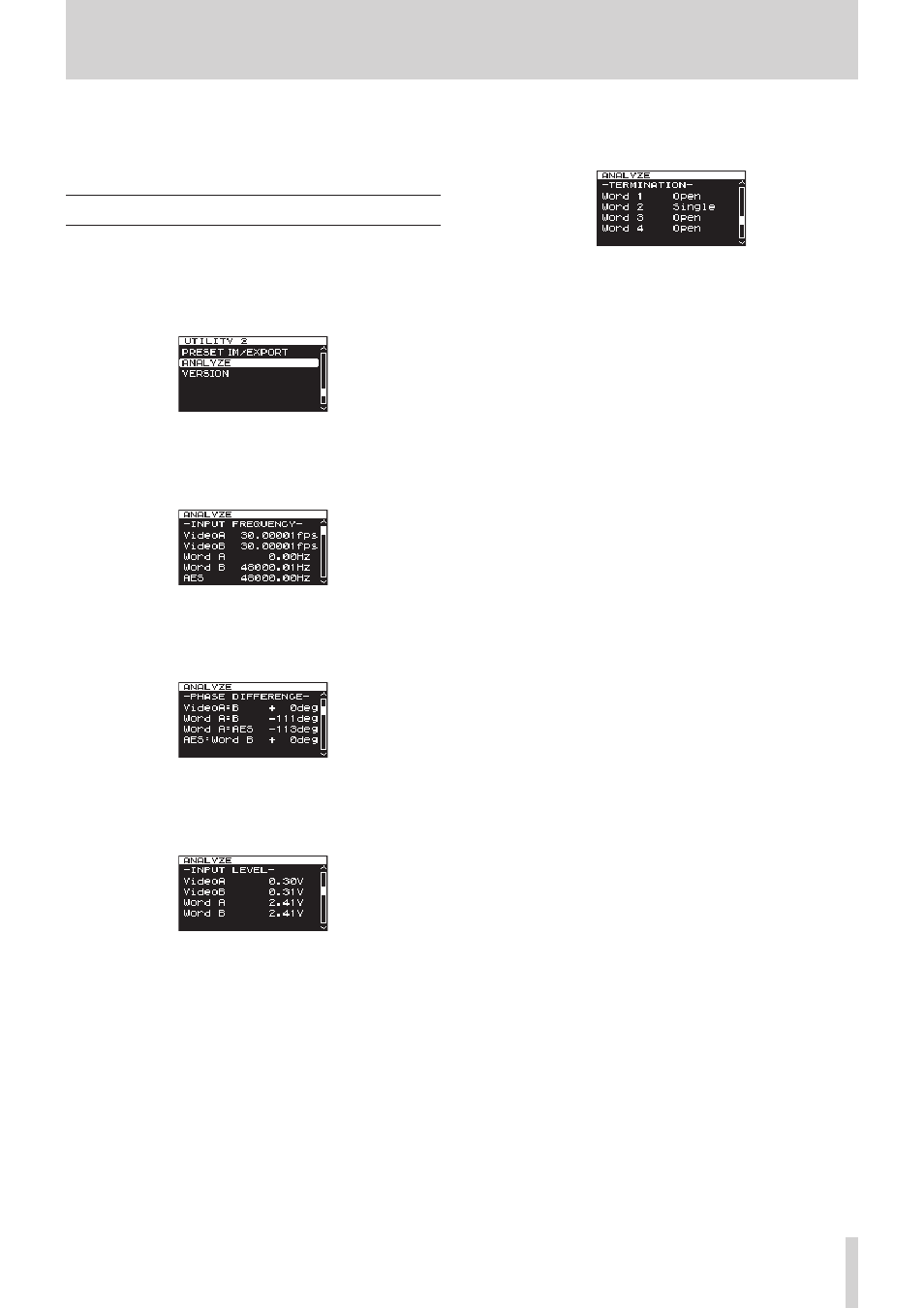

1. Press the MENU button repeatedly to open the UTILITY
2 menu page, and turn the MULTI JOG dial to select the
ANALYZE item.
2. Press the MULTI JOG dial to open the
ANALYZE
screen,
which shows the results of analysis.
INPUT FREQUENCY
This shows the reference input frequency.
Analysis results: fps for video and Hz for other items
PHASE DIFFERENCE
This shows the phase difference between references A
and B.
Analysis results: VIDEO A/B, WORD A/B, WORD A/AES,
WORD B/AES
INPUT LEVEL
This shows the signal level of the reference input.
Analysis results: V
TERMINATION
This shows the state of the termination resistance of the
device at output.
Analysis results:
OPEN: There is no termination.
SINGLE: There is a termination at one location. This is
normal.
OVER: There are termination at two or more locations.
