Dials
Dials function similarly to Meters. Dials are based on Pointer Definitions and have 6 Styles to choose from.
Properties
Name - The Name property makes the object easier for the RealEdit programmer to identify. Often it is a good idea
to use the same name for related objects, such as a Data Value that represents a Constant.
Top - The top position, in twips, of the object.
Left - The Left position, in twips, of the object.
Height - The Height value, in twips, of the object.
Width - The Width value, in twips, of the object.
Style -

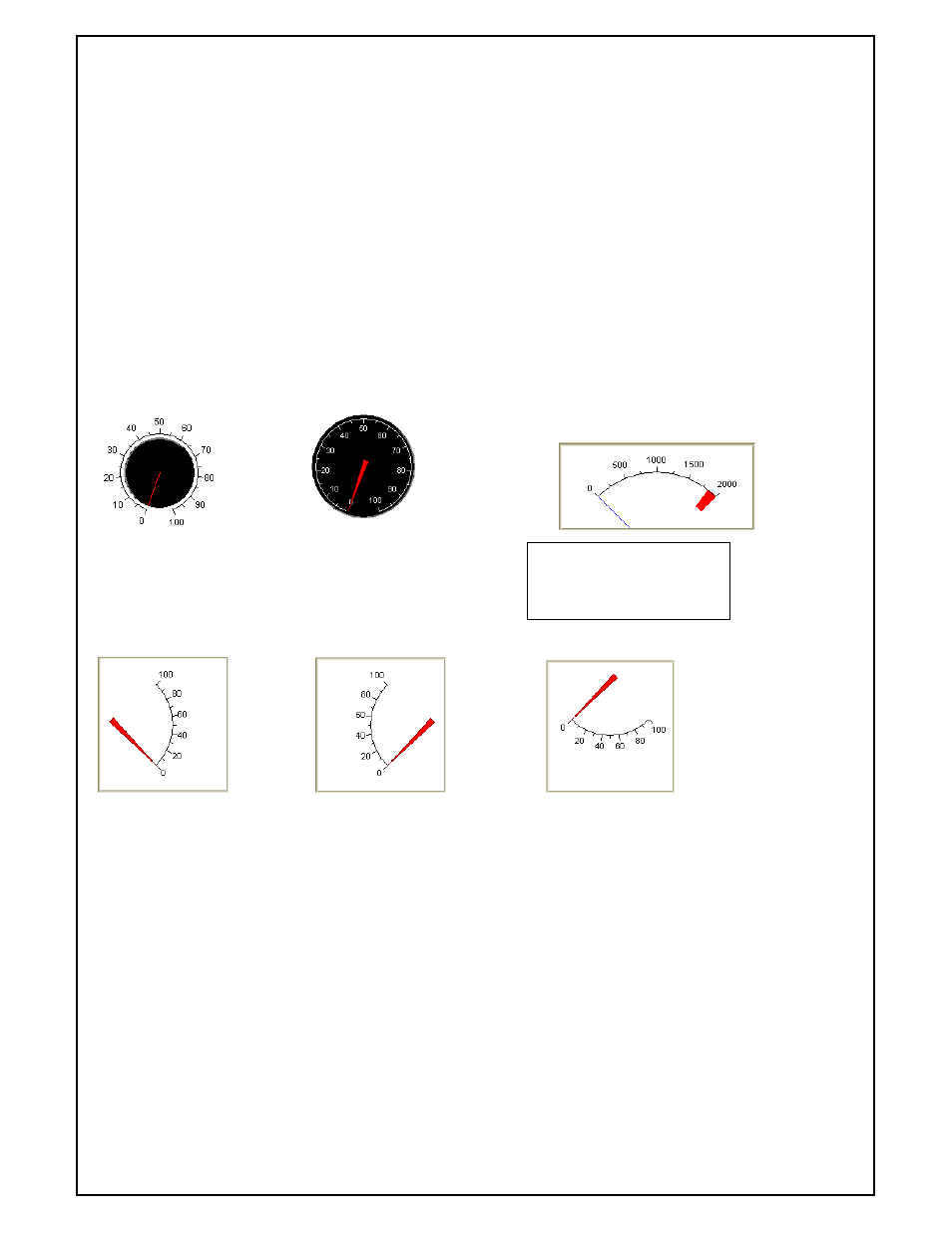

Knob, normal pointer Dial, 3-D pointer
Right Meter, 3-D pointer Left Meter, 3-D pointer Bottom Meter, 3-D pointer
Arc Start (degrees) - Position of the maximum value on the Dial
Arc End (degrees) - Position of the minimum value on the Dial
Minimum - A standard numeric value for the minimum the object can represent.
Maximum - A standard numeric value for the maximum the object can represent.
Background Color - Color of the Object’s background
Face Color - Color adjusted by red, green and blue hex values or invoking the Color Dialog.
Alphanumeric Color - Color of the object’s display text
Font - The type face selected for this particular text.
Dial Caption - Descriptive display text.
Axis Caption - Descriptive display text.
Pointer List - This is a list of any object type. Selecting (list) invokes the List Builder Dialog.
Top Meter, normal pointer,
invisible pointer with fill to
max at 1850 for redline
indicator
