Component & system wiring 84, Philips, When used with orion vcm controller – Orion System VCM Component User Manual

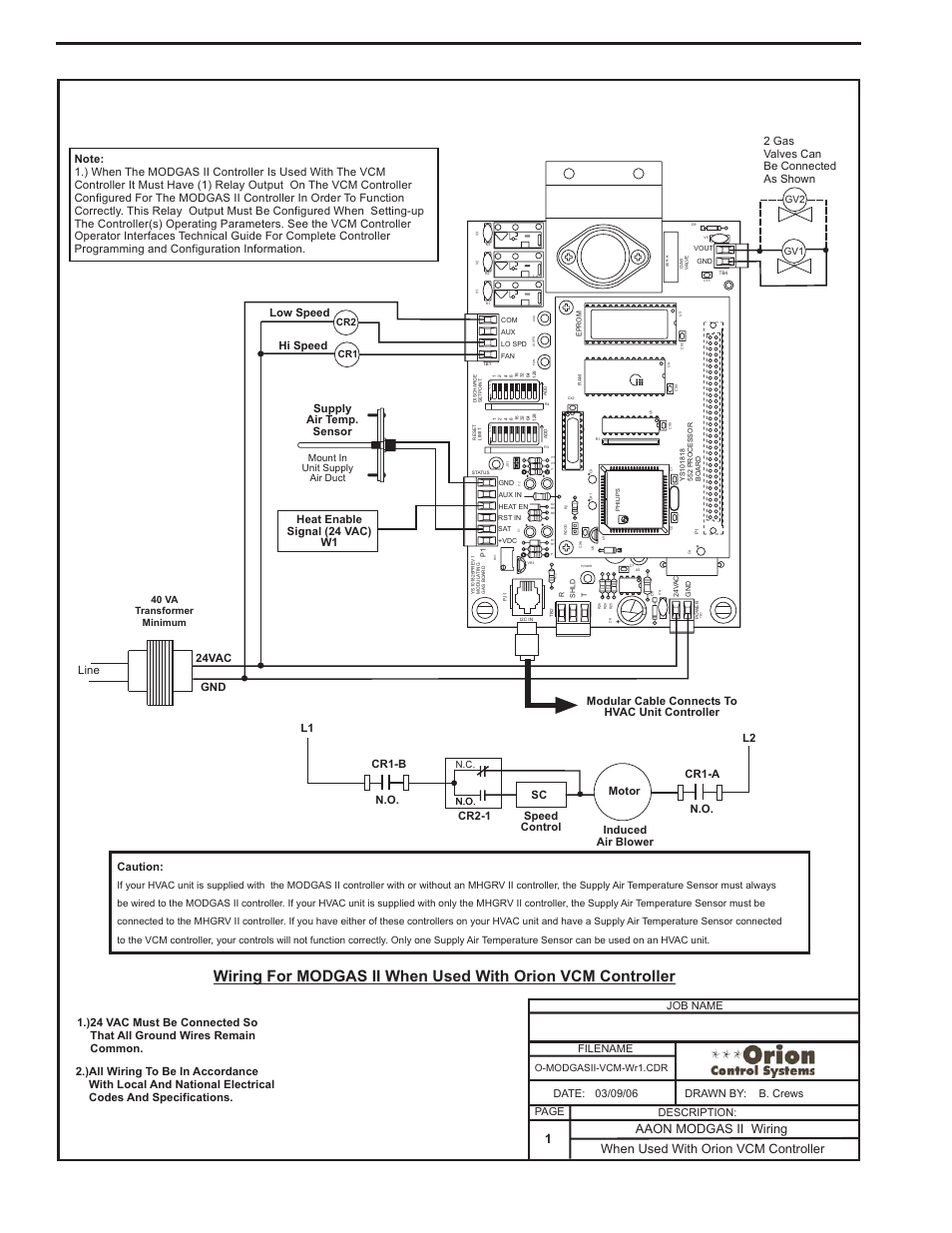

Page 84: Aaon modgas ii wiring 1, Filename date: b. crews description: page drawn by, Line gnd 24vac, O-modgasii-vcm-wr1.cdr, Mount in unit supply air duct, 40 va transformer minimum, Cr1 cr2 gv1 gv2
Component & system wiring 84, Philips, When used with orion vcm controller | Aaon modgas ii wiring 1, Filename date: b. crews description: page drawn by, Line gnd 24vac, O-modgasii-vcm-wr1.cdr, Mount in unit supply air duct, 40 va transformer minimum, Cr1 cr2 gv1 gv2 | Orion System VCM Component User Manual | Page 84 / 96 See also other documents in the category Orion System Hardware:
