Gbd controller - co2 apllications wiring, Component & system wiring 75, Gbd device wiring – Orion System VCM Component User Manual

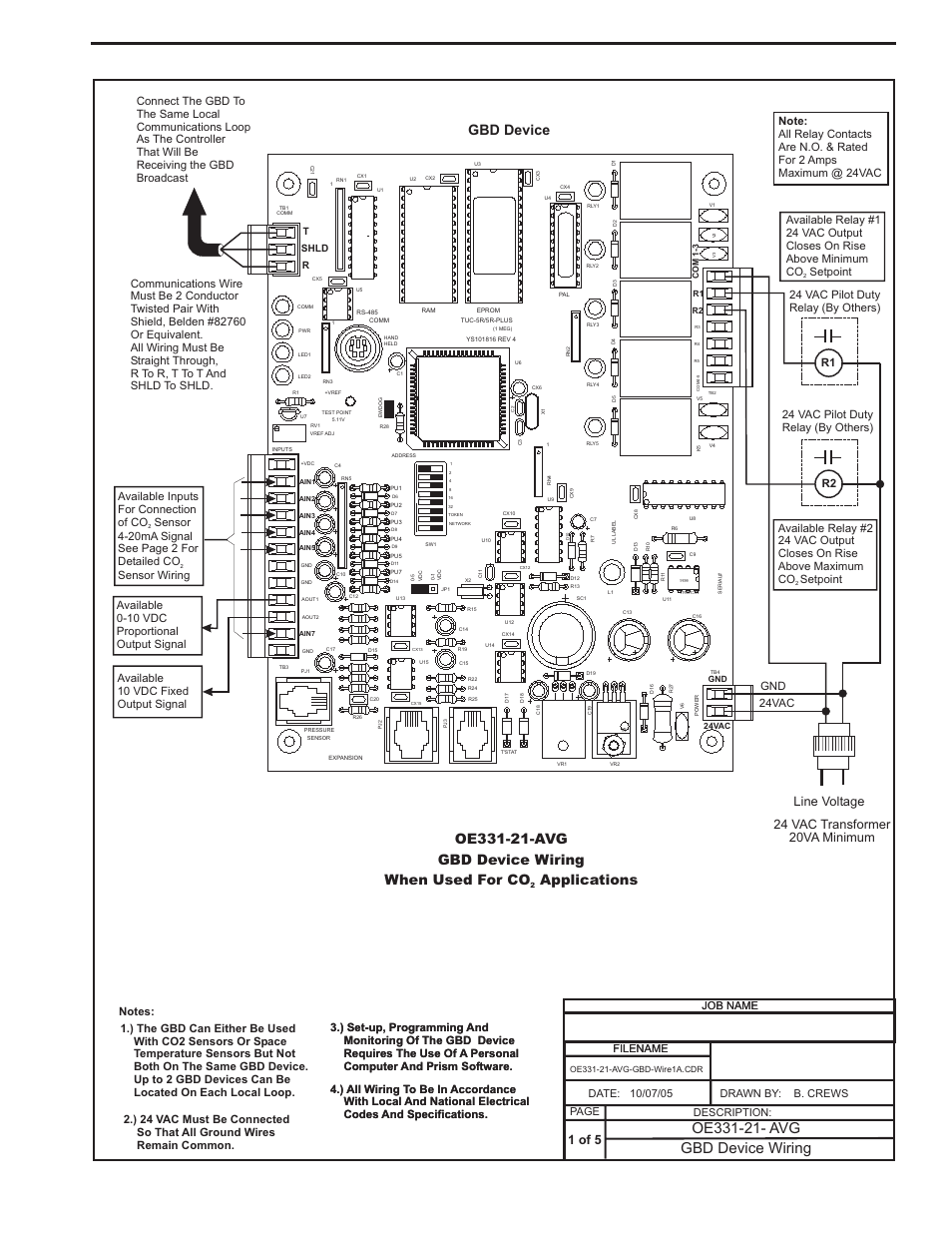

Page 75: Gbd device, 1 of 5, Line voltage 24 vac transformer 20va minimum, Filename date: b. crews description: page drawn by, 24vac, Co sensor wiring, 24 vac pilot duty relay (by others)
Gbd controller - co2 apllications wiring, Component & system wiring 75, Gbd device wiring | Gbd device, 1 of 5, Line voltage 24 vac transformer 20va minimum, Filename date: b. crews description: page drawn by, 24vac, Co sensor wiring, 24 vac pilot duty relay (by others) | Orion System VCM Component User Manual | Page 75 / 96 See also other documents in the category Orion System Hardware:
