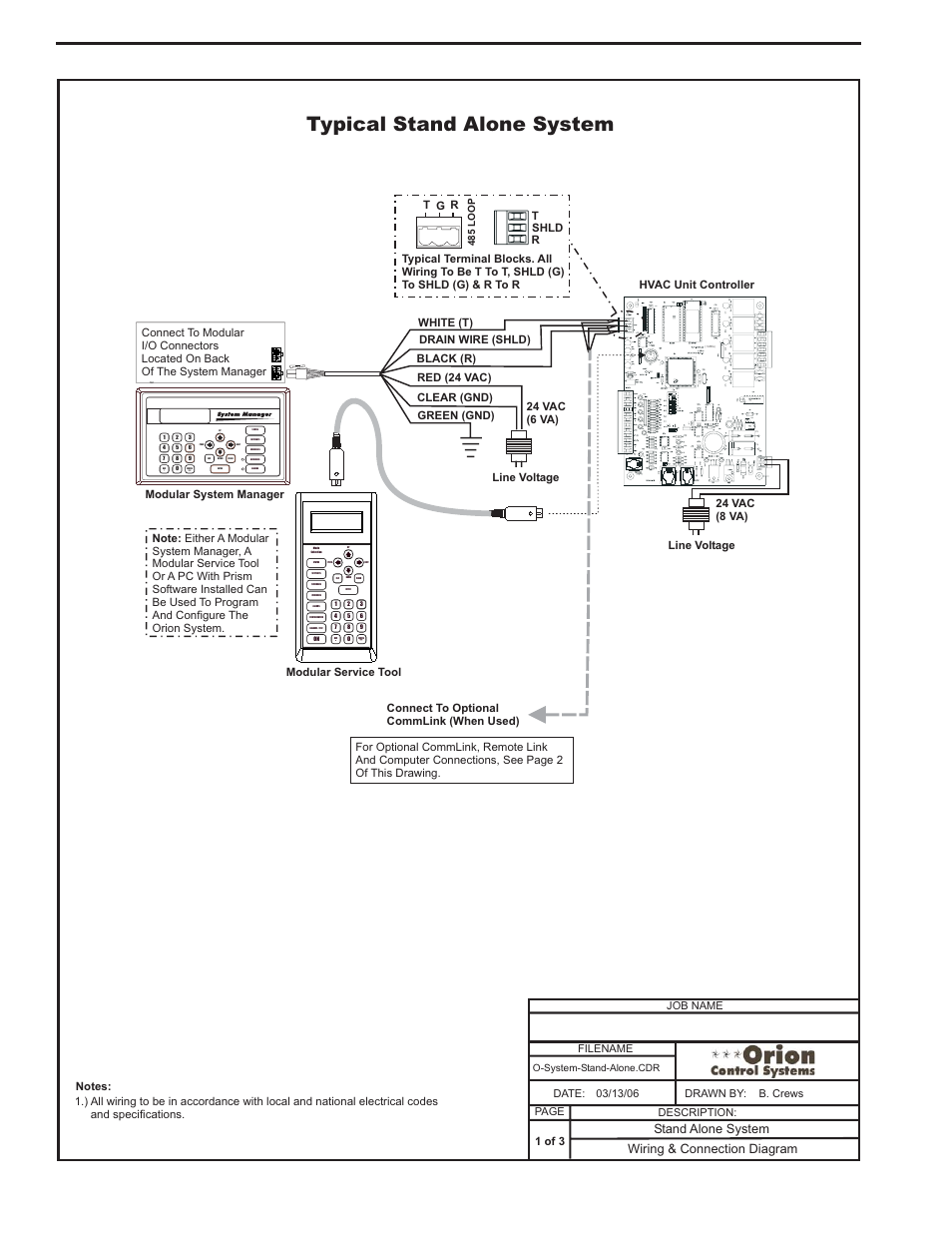

Stand alone system wiring, Typical stand alone system, Component & system wiring 6 – Orion System VCM Component User Manual
Page 6: Wiring & connection diagram, Stand alone system, Filename date: b. crews description: page drawn by
