7
2. Remove necessary screw plugs from
flange. Removing the flange from the
adapter bracket may facilitate
easier wiring.
3. Attach the necessary conduit fittings to
the flange. Connect the flexible conduit
and wires. All splices must be made in
the box below the cover adapter.
4. Push the activation into the floor box
until firmly seated against the floor.
CAUTION: Flange must be
grounded. Connect
attached grounding
conductor to system
ground. Maximum
circuit conductor size
shall not exceed No.
12 AWG.
CAUTION: Flange must be grounded.
Connect attached grounding
conductor to system ground.
Maximum circuit conductor size
shall not exceed No. 12 AWG.
2. Remove necessary screw plugs from
the flange.
3. Attach a 2" or 1 1/4" trade size
conduit fitting (not supplied) to the
flange. If a 1 1/4" trade size fitting is
used, insert the 1 1/4" reducing ring
supplied before inserting the fitting.
4. Attach conduit to conduit fitting, pull
wires and push activation into floor
box until firmly seated on floor.

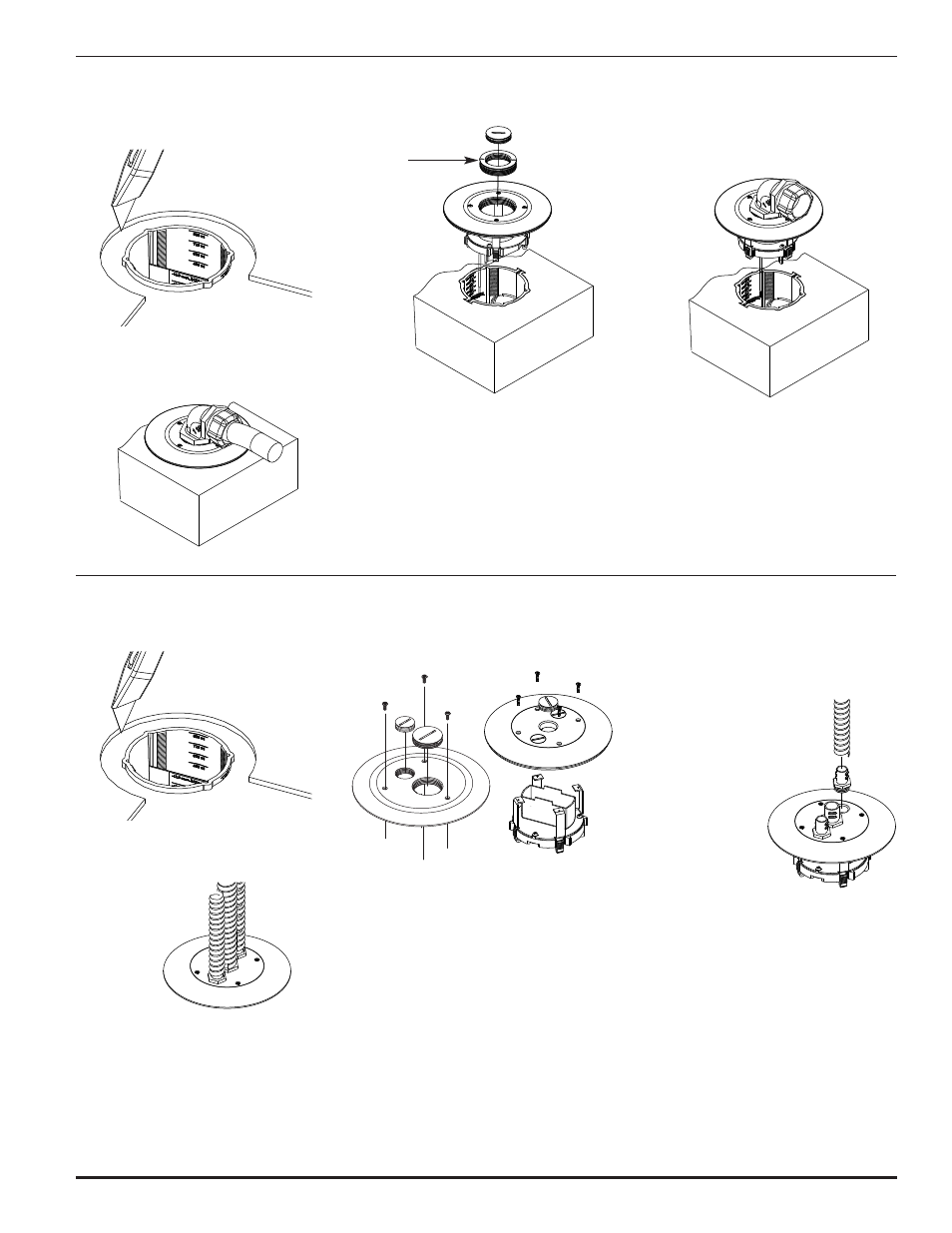

881CM2TC COVER INSTALLATION:
1 1/4"
Reducing Ring
897CFFTC/8814FFCTC COVER INSTALLATION:
1. Cut a 6 1/2" [165mm] circular
concentric opening in the floor
covering.
1. Cut a 6 1/2" [165mm] circular
concentric opening in the floor
covering.
