Draco kvm extender 64 – IHSE USA 482 Series Draco vario Dual- Head User Manual
Page 64
Draco KVM Extender
64
2013-12-06

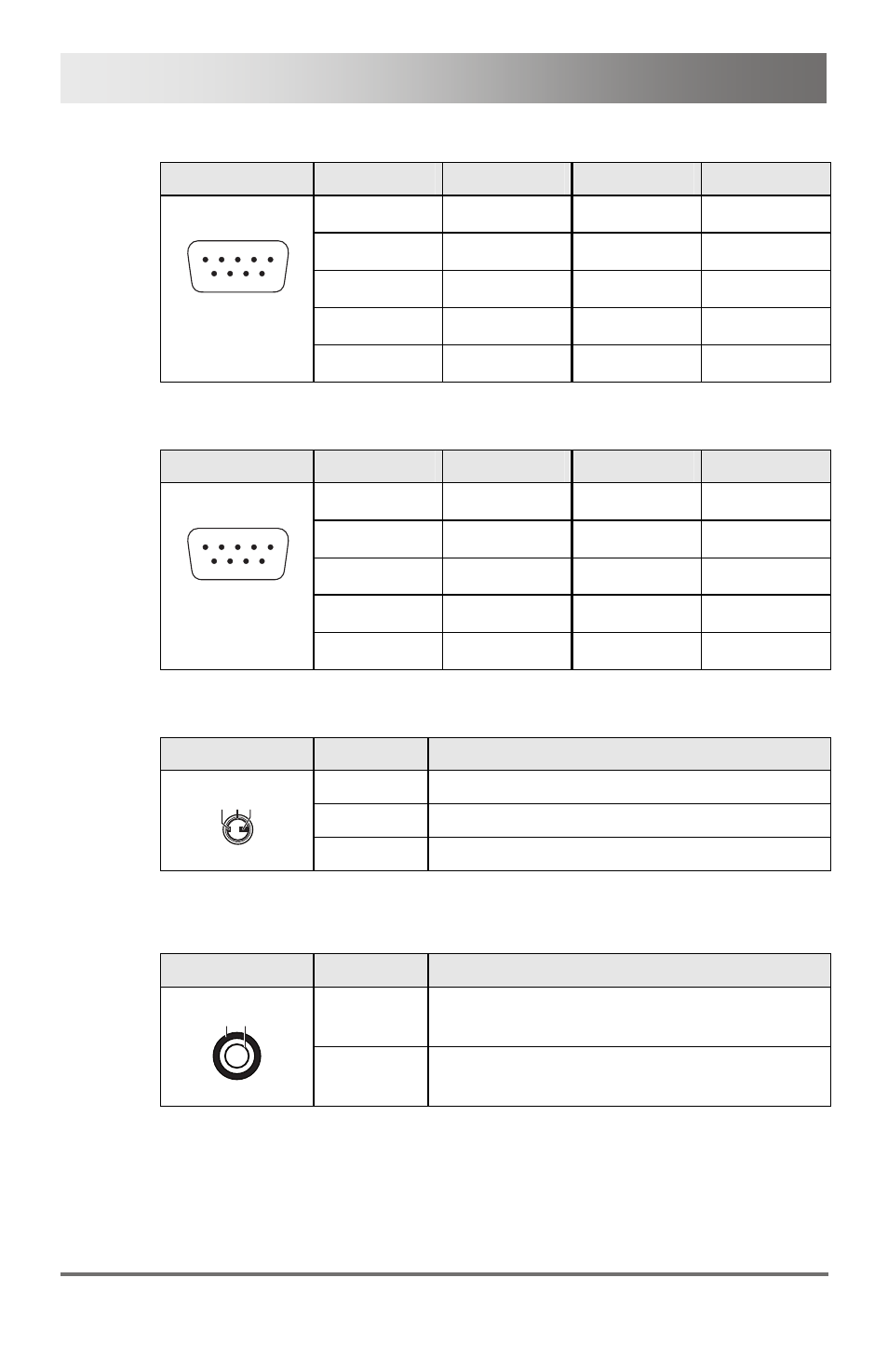

D-Sub 9 (Serial) RS422 Controlled Device
Pin
Signal
Pin
Signal
1 GND
6 Rx-GND
2 RxA
7 RxB
3 TxB
8 TxA
4 Tx-GND
9 n.c.
1.................5
6...........9
5 n.c
Pos: 97 /806-IHSE/Technische Daten/Pinbelegungen/D-Sub 9 (Seriell) RS422 Controlling Device @ 9\mod_1362477202220_6.doc @ 71369 @ @ 1
D-Sub 9 (Serial) RS422 Controlling Device
Pin
Signal
Pin
Signal
1 GND
6 Tx-GND
2 TxA
7 TxB
3 RxB
8 RxA
4 Rx-GND
9 n.c.
1.................5
6...........9
5 n.c.
Pos: 98 /806-IHSE/Technische Daten/Pinbelegungen/Stereo-Klinkenbuchse 3,5 mm @ 5\mod_1291128765156_6.doc @ 44901 @ @ 1
3.5 mm Stereo Jack Plug
Pin
Signal
1 GND
2
Audio IN / OUT L
1
2 3
3
Audio IN / OUT R
Pos: 99 /806-IHSE/Technische Daten/Pinbelegungen/RCA (Cinch) @ 5\mod_1291128877593_6.doc @ 44920 @ @ 1
RCA (Cinch)
Pin
Signal
1
GND
1 2
2
Data IN / OUT
