24 modell l- / r474-bxtc, 25 modell l- / r474-bxts, 24 modell – IHSE USA 482 Series Draco vario Dual- Head User Manual
Page 28: L- / r474-bxtc, 25 modell, L- / r474-bxts, Draco kvm extender 28, Cpu module con module
Draco KVM Extender
28
2013-12-06
Pos: 39 /806-IHSE/Beschreibung/Geräteansichten/474-xx/Typ L- / R474-BXTC @ 6\mod_1304583784582_6.doc @ 51110 @ 3 @ 1

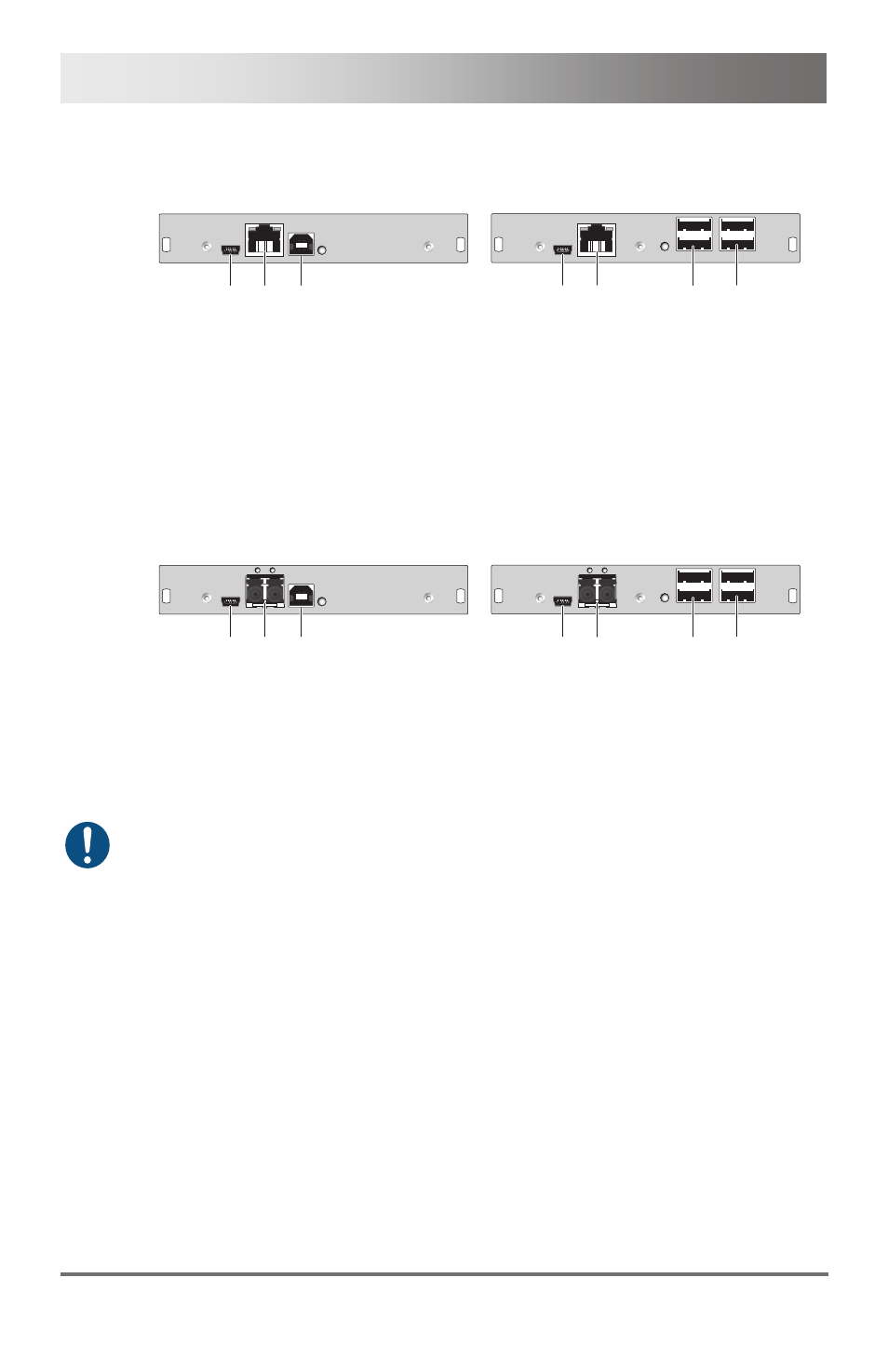

3.6.24 Modell L- / R474-BXTC
CPU Module
CON Module
1
2
3
1
2
3
4
Rear View
Rear View
1 Service
port
2
Connect to interconnect cable
3
To CPU: USB 2.0
1 Service
port
2
Connect to interconnect cable
3
Connect to USB 2.0 devices
Pos: 40 /806-IHSE/Beschreibung/Geräteansichten/474-xx/Typ L- / R474-BXTS @ 6\mod_1304583818676_6.doc @ 51128 @ 3 @ 1
3.6.25 Modell L- / R474-BXTS
CPU Module
CON Module
1
2
3
1
2
3
4
Rear View
Rear View
1 Service
port
2
Connect to interconnect cable
3
To CPU: USB 2.0
1 Service
port
2
Connect to interconnect cable
3
Connect to USB 2.0 devices
It is only allowed to use one USB 2.0 CON module per chassis.
