Description
2013-12-06
23

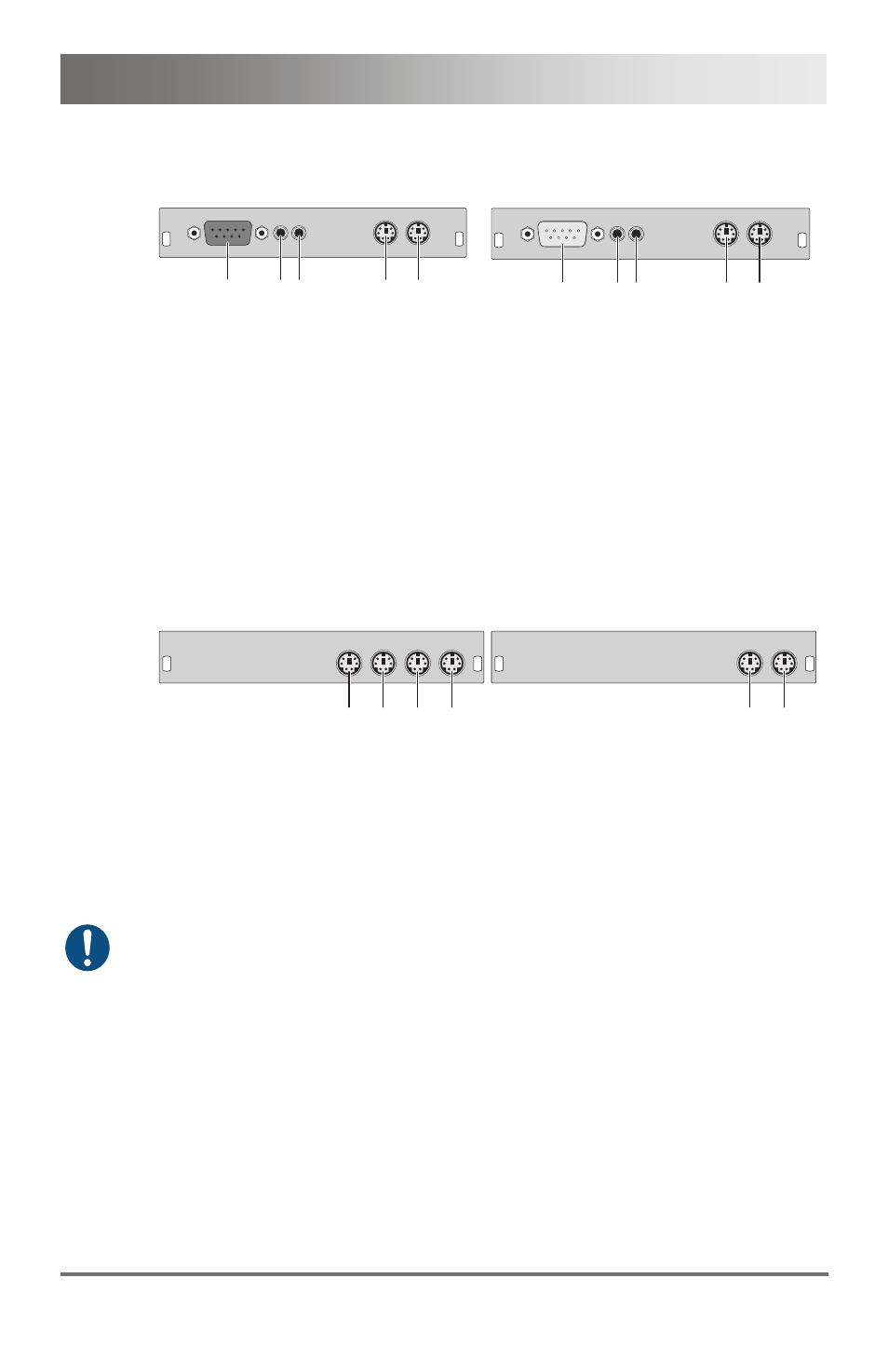

3.6.15 Model L- / R474-BAP
CPU Module
CON Module
1
2 3
4
5
1
2 3
4
5
Rear View
Rear View
1
Connect to serial (D-Sub 9)
2 Audio
IN
3 Audio
OUT
4
To CPU: PS/2 mouse
5
To CPU: PS/2 keyboard
1
Connect to serial (D-Sub 9)
2 Audio
IN
3 Audio
OUT
4
Connect to PS/2 mouse
5
Connect to PS/2 keyboard
Pos: 27 /806-IHSE/Beschreibung/Geräteansichten/474-xx/Typ L- / R474-BXP @ 8\mod_1348579797358_6.doc @ 69420 @ 3 @ 1
3.6.16 Model L- / R474-BXP
CPU Module
CON Module
1
2
3
4
1
2
Rear View
Rear View
1
Connect to local PS/2 mouse
2
Connect to local PS/2 keyboard
3
To CPU: PS/2 mouse
4
To CPU: PS/2 keyboard
1
Connect to PS/2 mouse
2
Connect to PS/2 keyboard
The upgrade module L- / R474-BXP is only available in combination with
the upgrade modules L- / R474-BAX and –BAH. A separate slot is
required for each module.
