Installation
2013-12-06
39
1 2 4 5 8 3

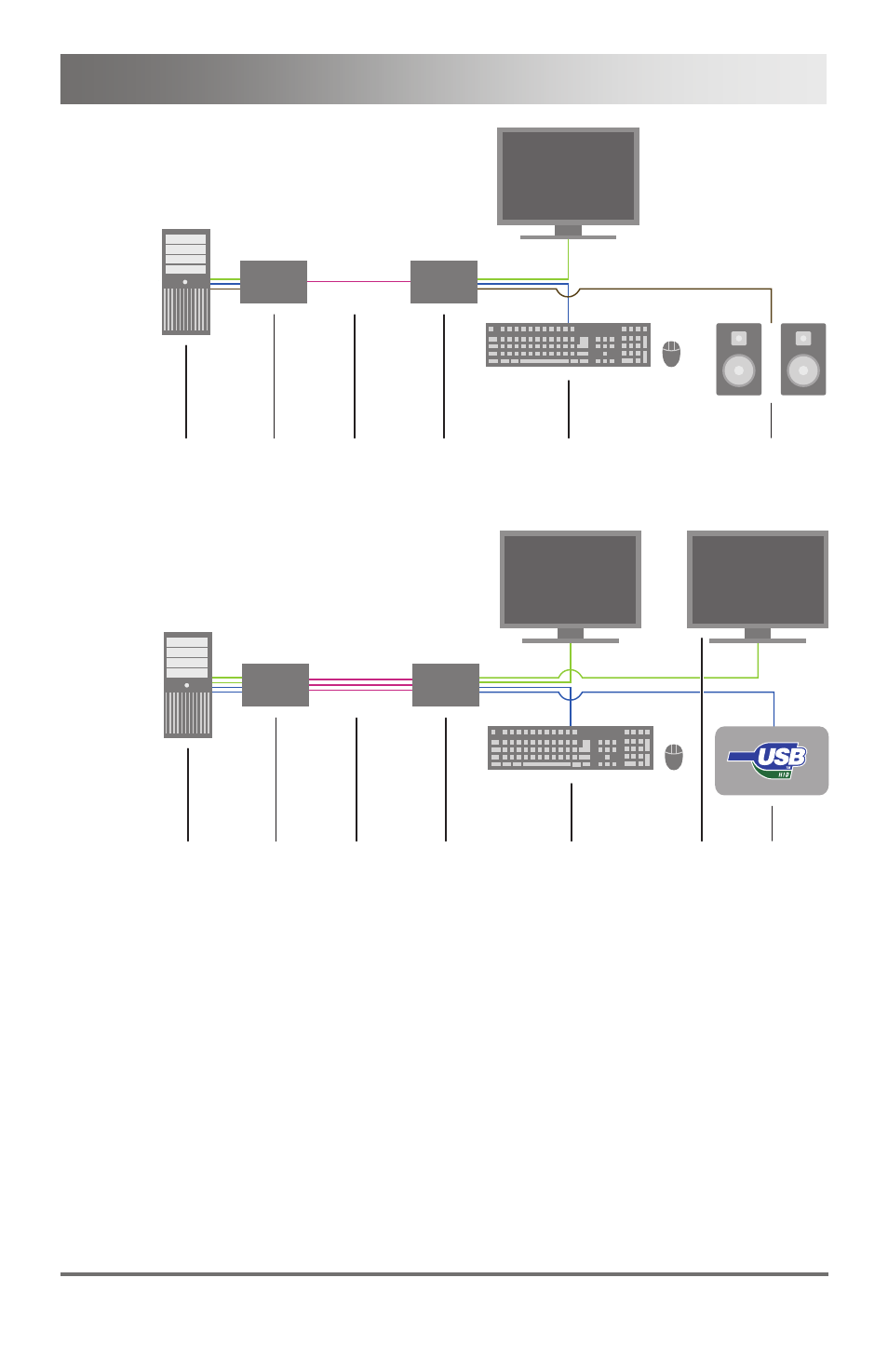

KVM Extender (Single-Head with Digital / Analog Audio)
1 2 4 5 7 6 3
KVM Extender (Dual-Head with 4x USB-HID)
1 Source (computer, CPU)
2 KVM Extender CPU Unit
3 Interconnect cable
4 KVM Extender CON Unit
5 Console (monitor, keyboard, mouse)
6 Second monitor (option, only with Dual-Head devices)
7 USB 2.0 devices (option, only with 2x USB 2.0 devices)
8 Audio sink (optional, only with devices with Analog Audio / Serial
option or Digital Audio option)
