InstallatIon
HPR800XD Auto Gas –
806500
3-19

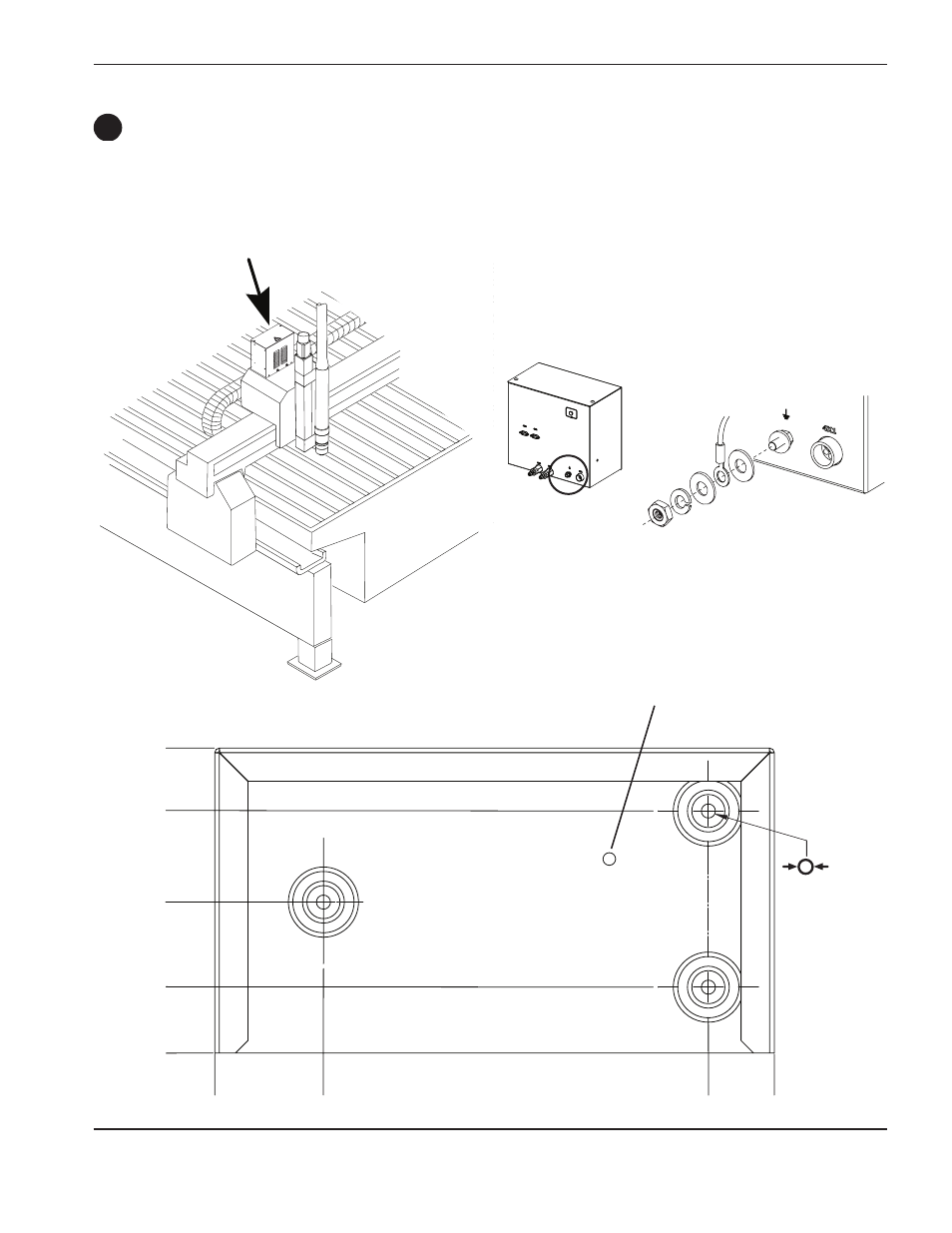

Install the metering console
• Mount the metering console near the torch lifter station. The maximum length of the gas hoses between the
metering console and the torch is 1.8 m (6 ft).
Metering console grounding
153.9 mm
6.1 in
33.3 mm
1.3 in
122.2 mm
4.8 in
0
54.9 mm
2.2 in
76.2 mm
3.0 in
282.5 mm
11.1 in
0
248.9 mm
9.8 in
Vent hole:
Do not block
F
7 mm
0.28 in
(3 places)
