MKIV Hydraulic Unit 5 21

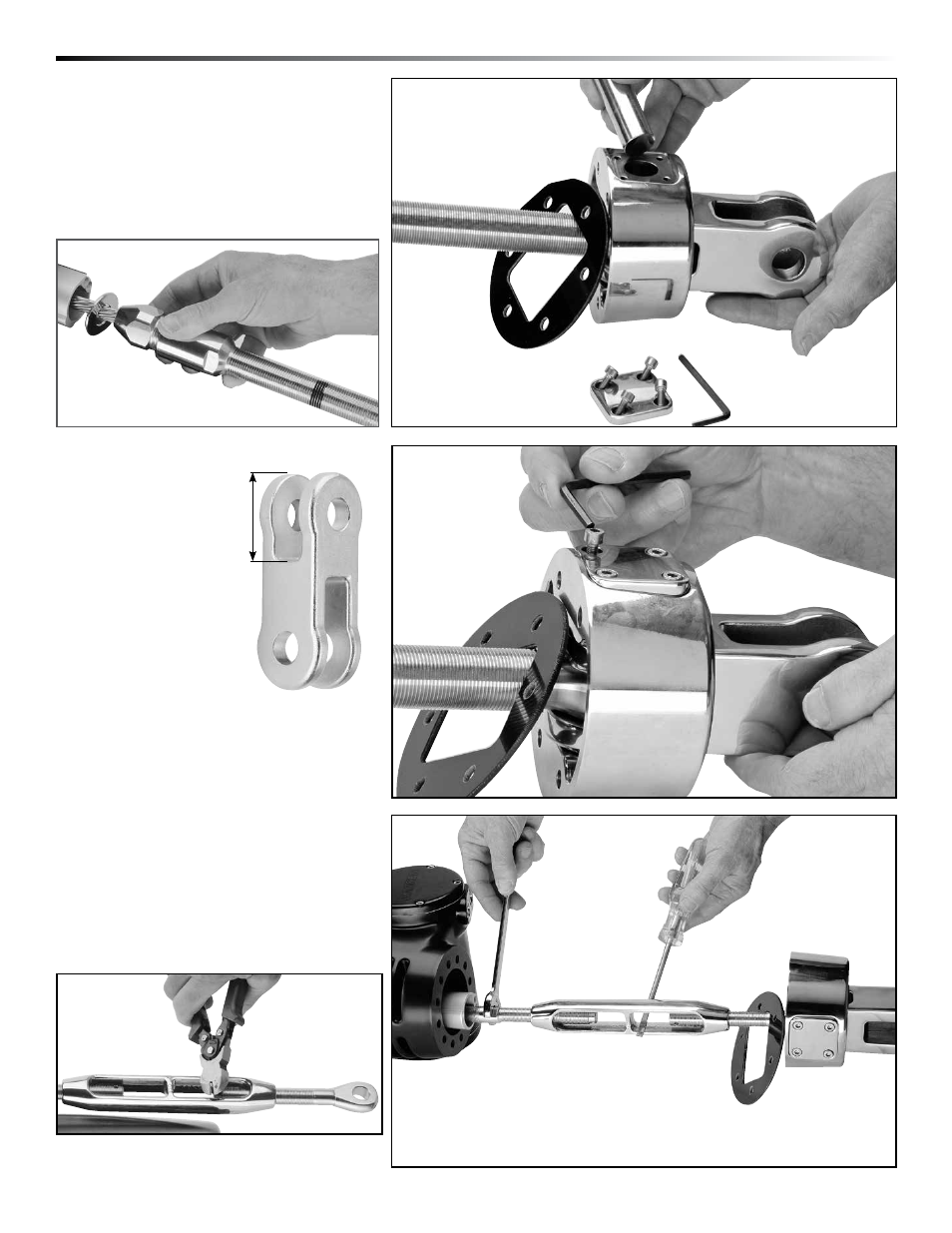

Assembly Attach Toggle
Assemble turnbuckle. Slip toggle housing
insulator onto threaded eye. Remove toggle
plate. Use crosspin to capture eye and
tottle in toggle housing.
Note: If using Sta-Lok
® or Norseman ®
stud, you must use a washer above
stud as shown below.
If stay length is set use side cutters or
needle-nose pliers to bend cotter pin
to secure turnbuckle.
Make sure shallow jaw is up.
Up
Down
Install cover plate using blue Loctite ®
on screws.
