18 MKIV Hydraulic Unit 5

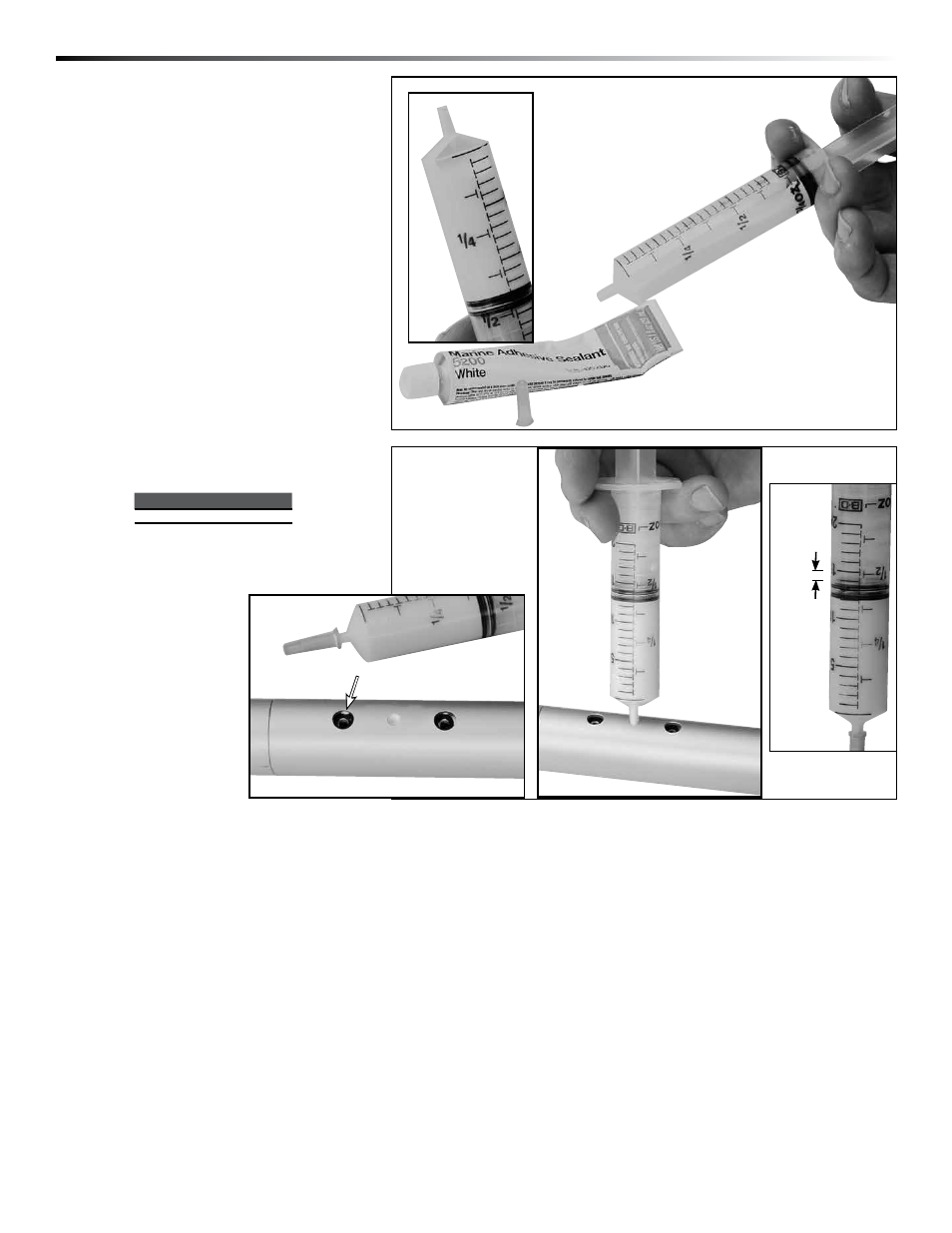

Start plunger into injector and immediately
hold upright so plunger is down and
applicator tip is up.
As sealant runs down towards plunger an
air pocket will form near tip. Push plunger
to evacuate air. You are now ready to begin
injecting adhesive.
Assembly Foils/Connectors
Use “ml”
marks to
estimate 1
to 1 1 / 4 ml of
adhesive
Stop when you see a small
amount of adhesive enter
one screw hole.
Unit Adhesive
5 1 1 / 2 ml
Inject only a small amount of adhesive
into middle hole.
Tip: When you see a small amount
of adhesive enter one screw hole, stop.
You have applied
enough adhesive.
Secure foil to connector using foil screws.
Make sure red Loctite ® is in screw holes.
If not apply to screws.
