MKIV Hydraulic Unit 5 15
Assembly Foils/Connectors

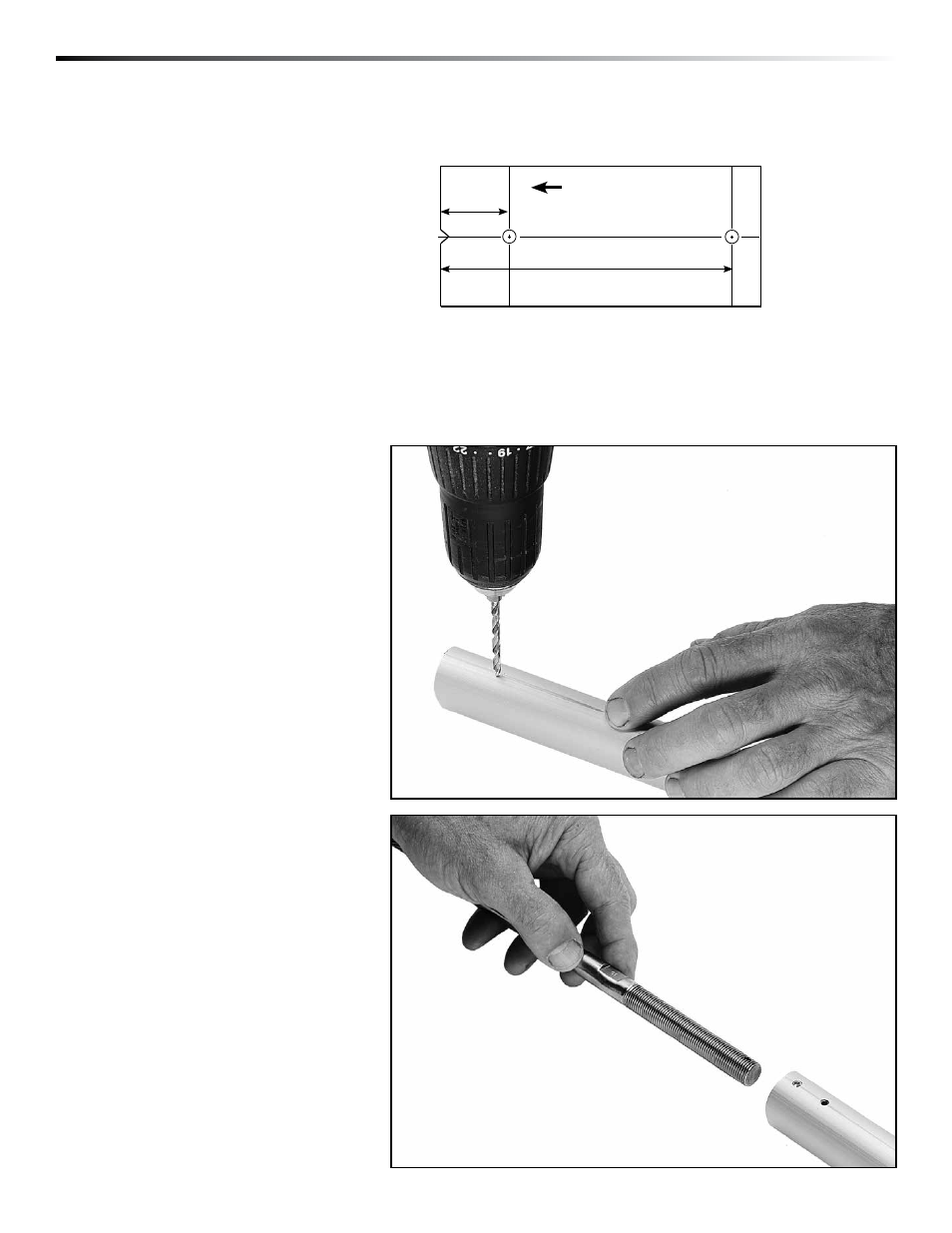

Cut out template at right. Line up template
with top of foil and scribed line. Tape in
place. Use center punch to mark holes.
Check center punch marks to confirm
they are 5 /
8
" (16 mm) and 2 19 /
32
" (76 mm)
from top of foil.
Drill two (2) 5 /
32
" (4 mm) holes for
trim cap.
Lay top foil in line with others. Slide stay
into top foil and down line of foils or slide
each foil up stay.
Foil To
p
!
5 / 8 " (16 mm)
2 19 /
32 " (67 mm)
