Harken 7415.15S MKIV Hydraulic Jib Reefing & Furling - Manual (Page 16)

16 MKIV Hydraulic Unit 5

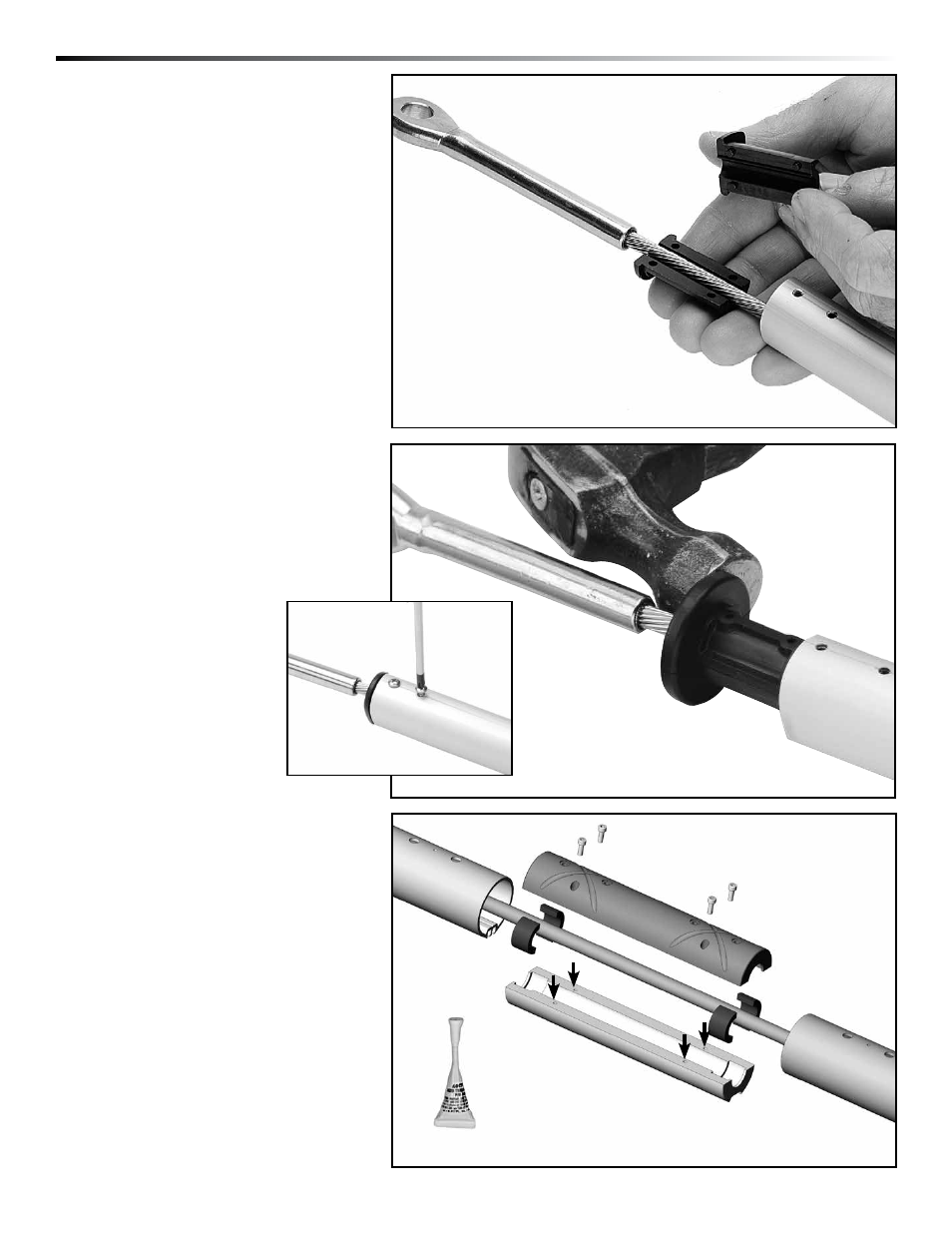

Assembly Foils/Connectors
Locate 12" (305 mm) Connector side A and
B. Put red Loctite ® on screw holes in side B.
Place halves of bushings onto stay and
capture in connector sides A and B.
Assemble using connector screws.
Install trim cap. Place each side over wire.
Push trim cap into foil to start, then tap
in using hammer.
Install trim cap screws.
Side A
Side B Red Loctite ®
