MKIV Electric Unit 2E, 3E 45

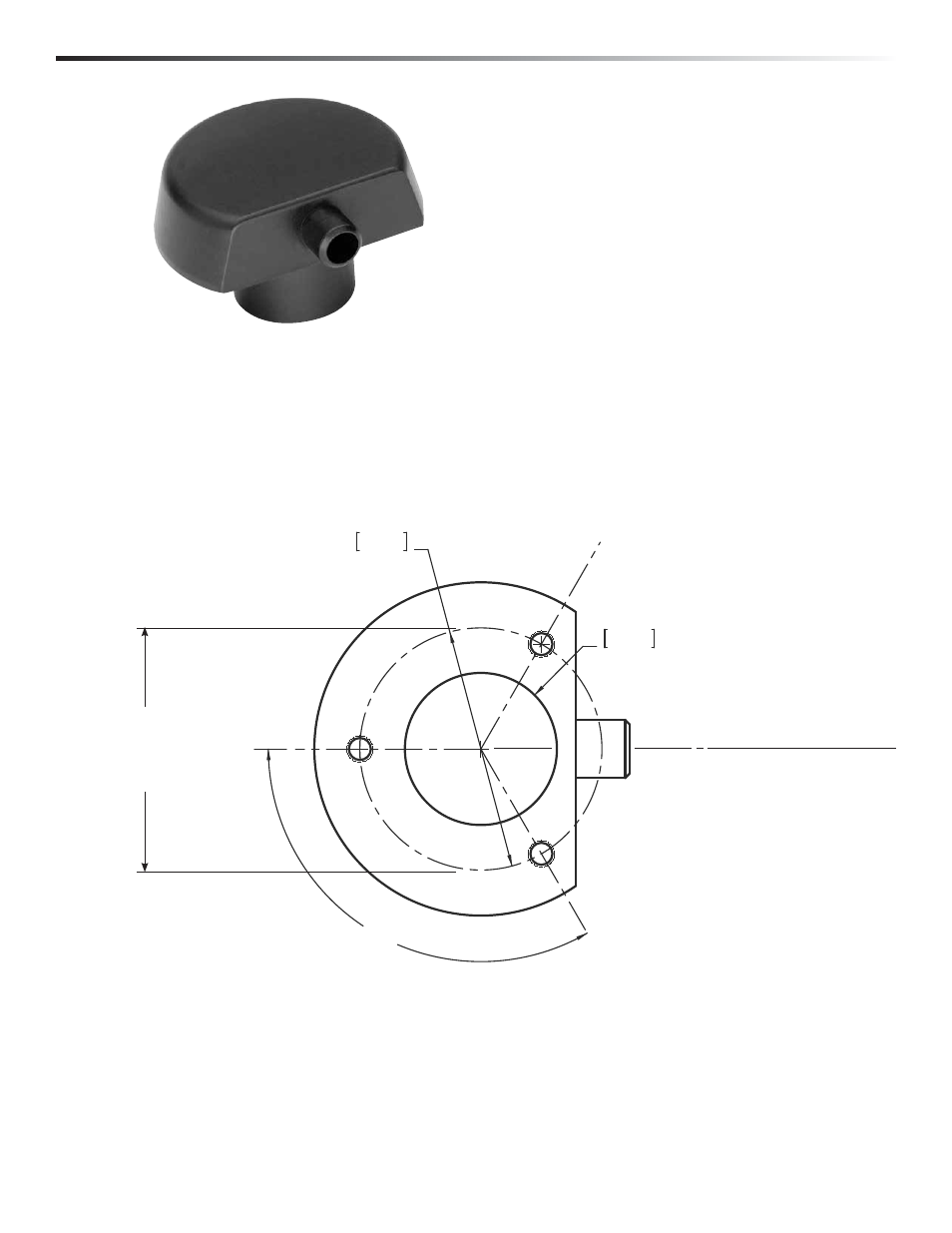

7406 Through-Deck Fitting Drilling Template
7406 Aluminum through-
deck fitting for routing
wires belowdecks
7406 Aluminum Through-Deck Fitting
IMPORTANT! Measure template carefully to verify that it is the correct size before drilling.
54.99
Ø 2.165
120°
34.54
Ø 1.360
Measure this distance
to verify that template
printed correctly
Use centerline as a
fore/aft reference line to to
assist in positioning template.
Hole saw Ø 1 3 /
8
" (35 mm)
Drill size 1 /
4
" (6.25 mm)
Fasteners Provided 6 mm x 35 mm
