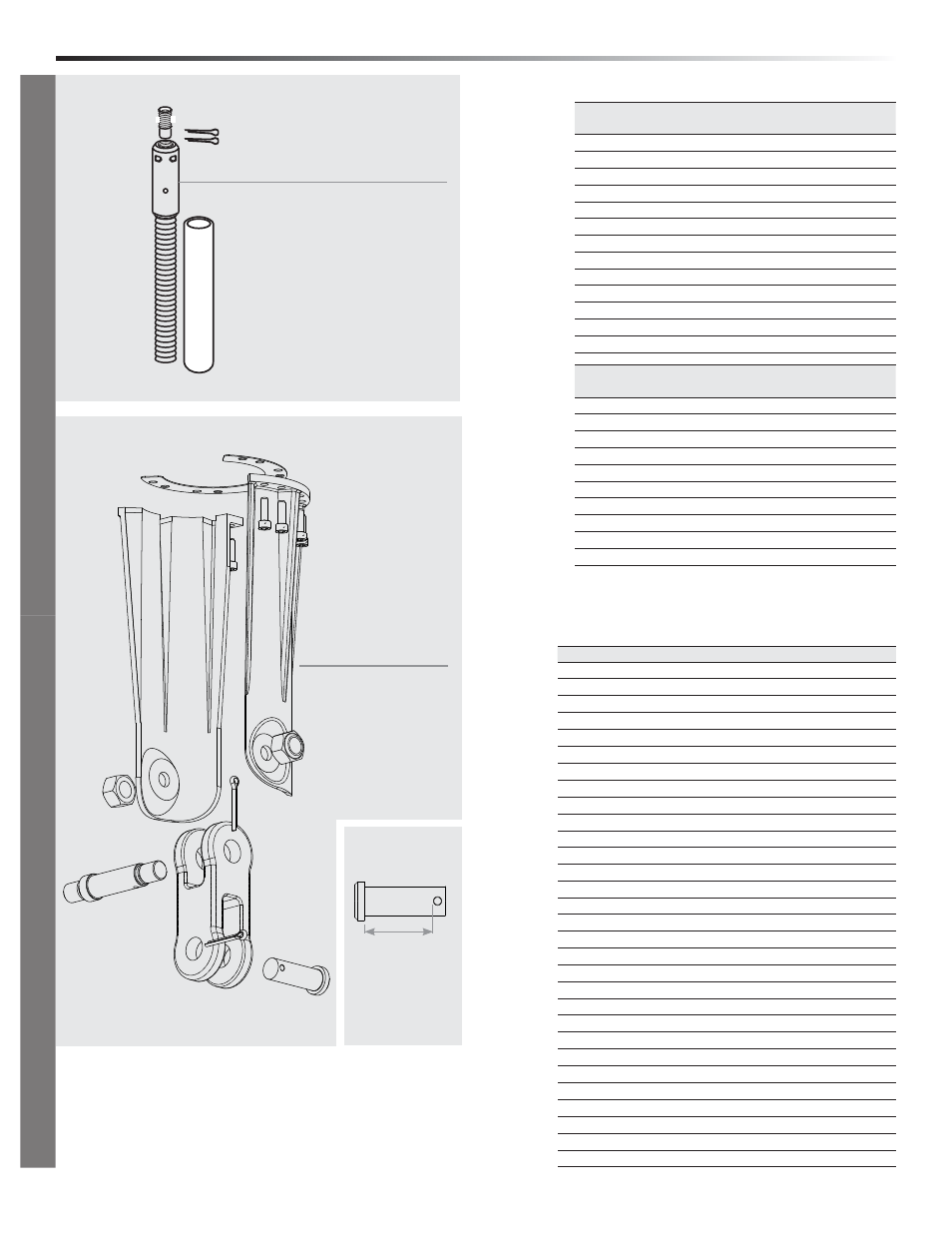

MKIV Unit 2E, 3E
Unit 2E / 3E
Parts List
UNIT 3E
No.
Description
Order
Part No.
Rod Adapter Stud w/Nosepiece (-22)
1
7426 -22
1
Stud (Main Body)
1
H-41812
2
Nosepiece -22
1
H-41811
3
Cotter Pin (
3
/
32
" x 1
3
/
4
" 18-8)
2
HFG319
Stud Cap (
7
/
8
" ID x 5
1
/
2
" RED)
1
HFG303
Rod Adapter Stud w/Nosepiece (-30)
1
7427 -30
1
Stud (Main Body)
1
H-41814
2
Nosepiece -30
1
H-41813
3
Cotter Pin (
3
/
32
" x 1
3
/
4
" 18-8)
2
HFG319
Stud Cap (
7
/
8
" ID x 5
1
/
2
" RED)
1
HFG303
7
No.
Description
Order
Part No.
Jaw/Jaw Toggle w/Link Plates–
5
/
8
" Pin
1
7312.22 5/8
1
Toggle (
5
/
8
")
1
H-41300
2
Starboard Leg of Link Plate
1
H-51527
3
Port Leg of Link Plate
1
H-51520
4
Crosspin (
5
/
8
" x 3.9")
1
H-51528
5
Clevis Pin (
5
/
8
" x 1.46")
1
H-42397
6
Isolator
1
H-44998
7
M12 Nylon Locking Nut
2
HFS937
8
Cotter pin (
5
/
32
" x 1
1
/
4
" 18-8)
2
HFS203
9
Link Plate Screw (M6 x 1 x 20 SK Cap)
10
HFS748
Jaw/Jaw Toggle w/Link Plates–
3
/
4
" Pin
1
7413.22 3/4
1
Toggle (¾")
1
H-41489
2
Starboard Leg of Link Plate
1
H-47224
3
Port Leg of Link Plate
1
H-47181
4
Crosspin (.747" x 4.15")
1
H-42583
5
Clevis Pin (
3
/
4
" x 1.766")
1
H-42403
6
Isolator
1
H-44998
7
M16 Nylon Locking Nut
2
HFS991
8
Cotter Pin (
5
/
32
" x 1
1
/
4
" 18-8)
2
HFS203
9
Link Plate Screw (M6 x 1 x 20 SK Cap)
10
HFS748
Jaw/Jaw Toggle w/Link Plates—
7
/
8
" Pin
1
7413.22 7/8
1
Toggle (
7
/
8
")
1
H-42562
2
Starboard Leg of Link Plate
1
H-47224
3
Port Leg of Link Plate
1
H-47181
4
Crosspin (.872" x 4.15")
1
H-42584
5
Clevis Pin (
7
/
8
" x 1.96")
1
H-42404
6
Isolator
1
H-44998
7
M16 Nylon Locking Nut
2
HFS991
8
Cotter Pin (
5
/
32
" x 1
1
/
4
" 18-8)
2
HFS203
9
Link Plate Screw (M6 x 1 x 20 SK Cap)
10
HFS748
8
1
2
7
3
7424 -12
7425 -17
7426 -22
7427 -30
7413.22 3/4
7413.22 7/8
8
5
6
4
2
7
8
8
9
3
7
1
Grip
Length
Clevis Pin
Clevis pin measurements
are "Grip Length."
UNIT 2E
No.
Description
Order
Part No.
Rod Adapter Stud w/Nosepiece (-12)
1
7424 -12
1
Stud (Main Body)
1
H-41531
2
Nosepiece -12
1
H-41527
3
Cotter Pin (
3
/
32
" x 1" 18-8)
2
HFG193
Rod Adapter Stud w/Nosepiece (-17)
1
7425 -17
1
Stud (Main Body)
1
H-41531
2
Nosepiece -17
1
H-41526
3
Cotter Pin (
3
/
32
" x 1" 18-8)
2
HFG193
Rod Adapter Stud w/Nosepiece (-22)
1
7426 -22
1
Stud (Main Body)
1
H-41812
2
Nosepiece -22
1
H-41811
3
Cotter Pin (
3
/
32
" x 1
3
/
4
" 18-8)
2
HFG319
Stud Cap (
7
/
8
" ID x 5
1
/
2
" RED)
1
HFG303
7
UNIT 2E/3E
