MKIV Unit 3E 11
Length Chart
Dimensions Inches mm
A Center of Pin to Bottom of Terminal
B Bottom of Terminal to Top of Foil
1.00 25
C Top Foil Length
D Number of Foils ________ x 84" (2133.6mm)
E Bottom Foil
24.00 610
F Bottom of Foil to Top of Link Plates 15.41 391
G Top of Link Plate to Clevis Pin
Pin-to-Pin Length
Measure A and add to this chart
and length chart below
Inches mm
A
B
1 25
E 24 610
F 15.41 391
G
Total A+B+E+F+G
Make sure upper
measurement points
of A and Pin-to-Pin
are the same.
1 Pin-to-Pin Length
2 Subtract ABEFG –
3 Result (Pin-to-Pin – ABEFG)
4 Subtract D –
To find “D” pick number from chart below that is closest to,
but not greater than total from step 3.
Inches mm
7 x 84 = 588
8 x 84 = 672
9 x 84 = 756
10 x 84 = 840
11 x 84 = 924
7 x 2133.6 = 14935.2
8 x 2133.6 = 17068.8
9 x 2133.6 = 19202.4
10 x 2133.6 = 21336
11 x 2133.6 = 23470
Example–If result from Step 3 is:
800 inches “D” = 756 inches 20,000mm “D” = 19,202mm
5 Result (C) Top Foil Length
After completing worksheet above fill in A, C, D and G below. Add
“A” through “G” to confirm total equals your pin-to-pin measurement.
Length Check
Alternate
Measurement
Point
A
Pin
to
Pin

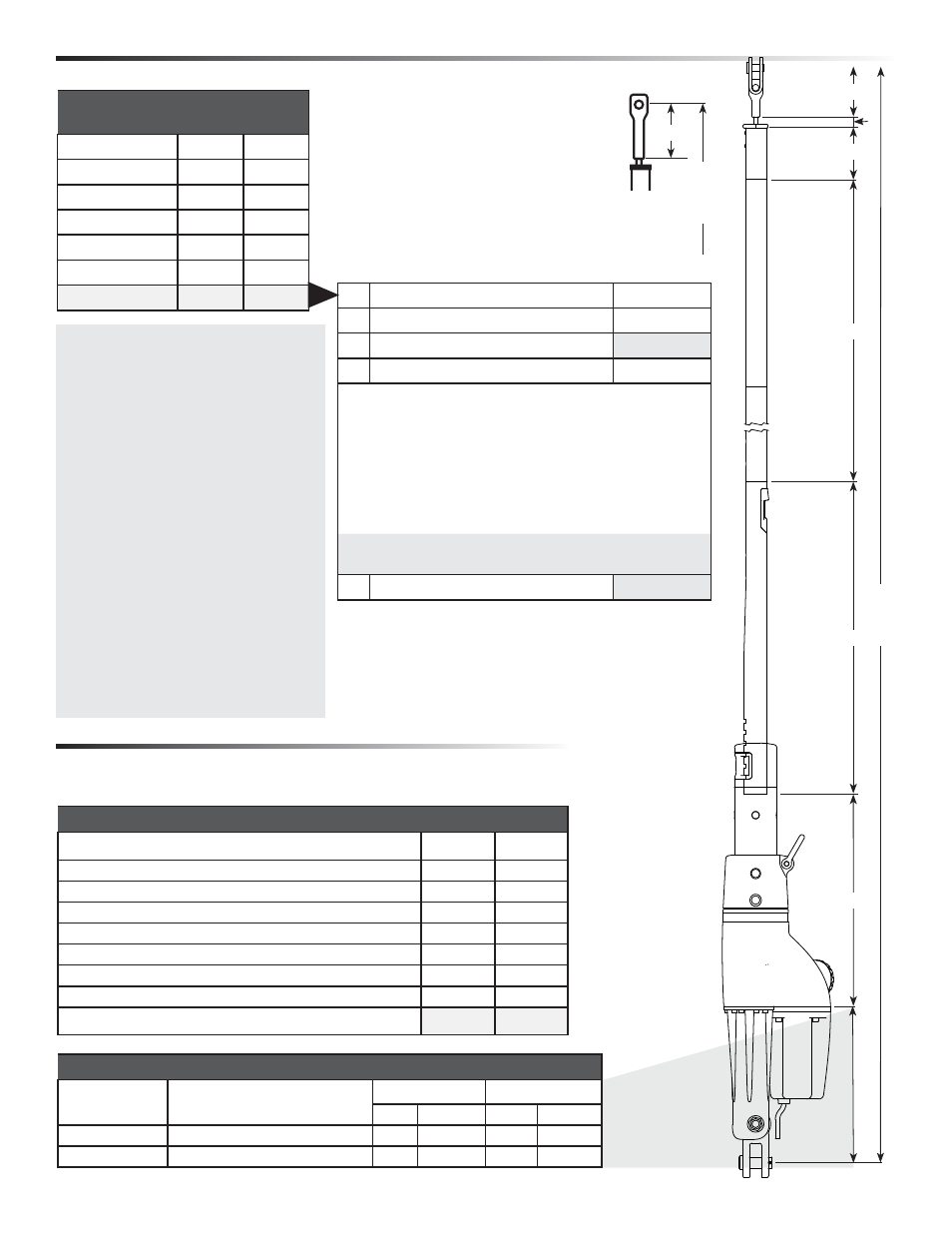

TOP FOIL LENGTH WORKSHEET
G Toggle Distance from Lower Clevis Pin to Top of Link Plates
Toggle
Part No.
Type
Clevis Pin G Distance
in mm in mm
7413.22 3/4 Jaw/Jaw with Link Plate 3 / 4 19.1 12.27 312
7313.22 7/8 Jaw/Jaw with Link Plate 7 / 8 22.2 12.85 327
A
C
D
E
F
Pin
to
Pin
B
G
UNIT 3E
