Modbus TCP Remote I/O Communication Module RTU-EN01

DVP-PLC Operation Manual

29

6.12 I/O Monitoring Table

RTU-EN01 is able to monitor internal registers on-line. Scroll the table to monitor bit devices RX, RY, T, C, R,

RCR and BR and the bit status and present value in the register. You can choose to monitor decimal or hex

present value.

„

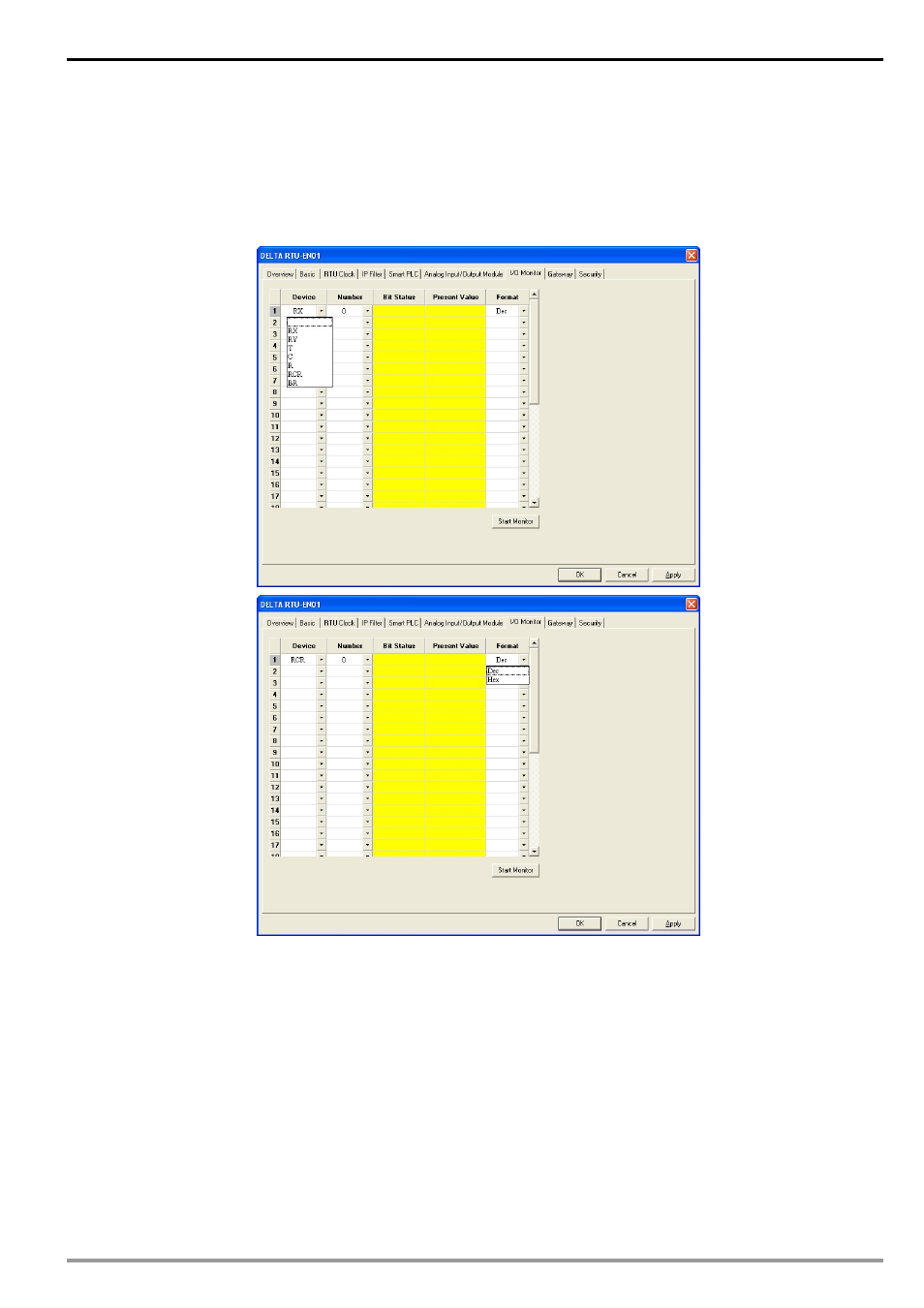

I/O monitoring table:

1. Device:

Select an internal register in RTU-EN01.

Bit devices: RX, RY, T, C, R

Registers: T, C, R, RCR, BR.

2. Number:

Select the bit devices and registers to be monitored by their numbers.

RX#0 ~ RX#255, total 256 bits.

RY#0 ~ RY#255, total 256 bits.
