Modbus TCP Remote I/O Communication Module RTU-EN01

DVP-PLC Operation Manual

21

the communication. The IP of the gateway has to be in the same subnet as RTU-EN01. The default

gateway of RTU-EN01 is 192.168.1.1.

3. Timer

setting:

For setting up TCP connection idle time, Modbus time-out and minimum delay time for every

communication data. Please refer to the explanations on BR#11, BR#12, and BR#13.

6.4 Network Settings

The first step for all the equipment to connect to the network is to have its own IP (Internet Protocol) address. The

IP address is like a number for every equipment to be identified on the network.

„

Setting up static IP of the PC

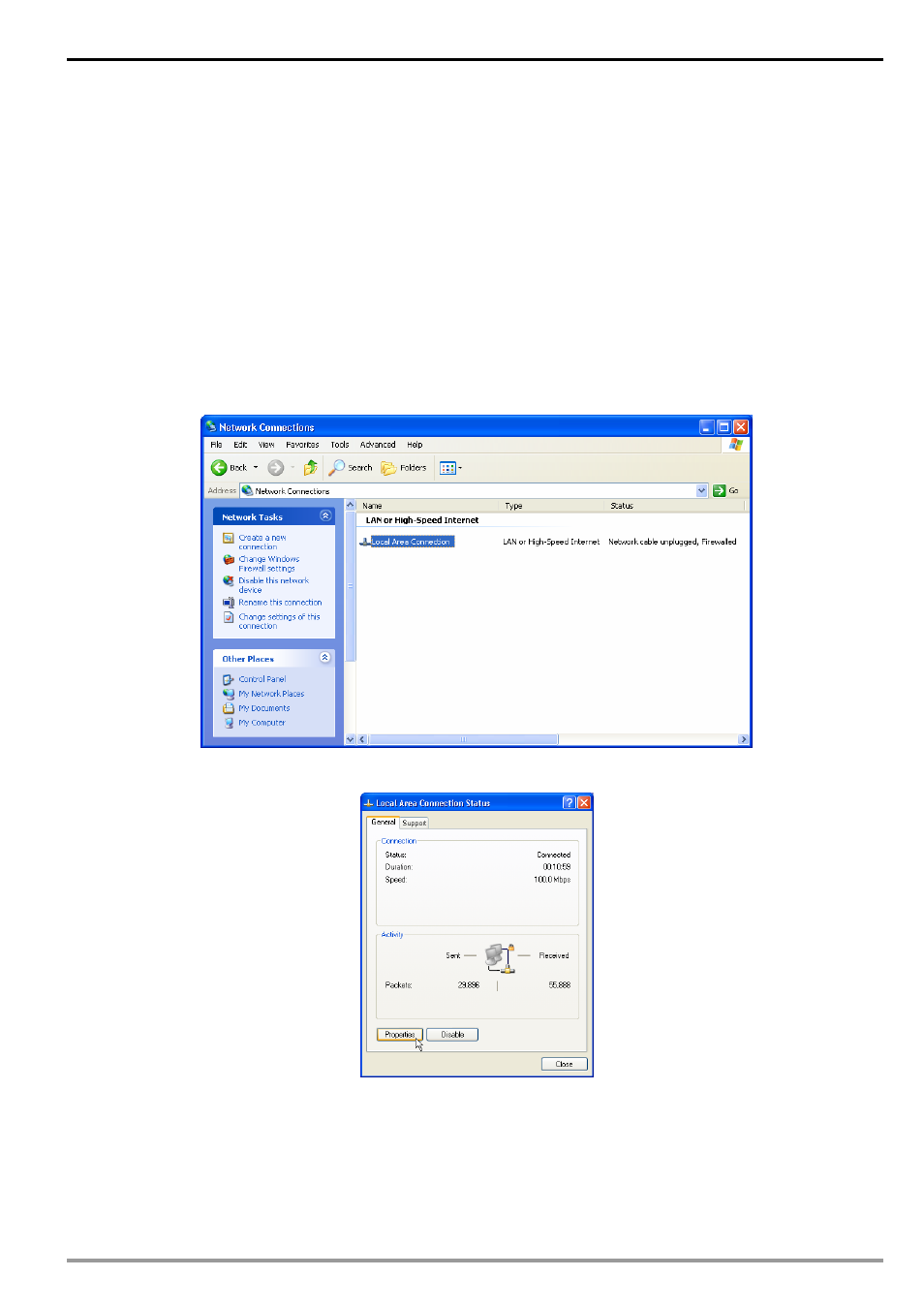

1. Enter Control Panel → Network Connection → click “Local Area Connection".

2. You will see the “Local Area Connection Status” window. Click “Properties”.

3. Click “Internet Protocol (TCP/IP)”.
