Modbus TCP Remote I/O Communication Module RTU-EN01

DVP-PLC Operation Manual

28

1. Corresponding

table:

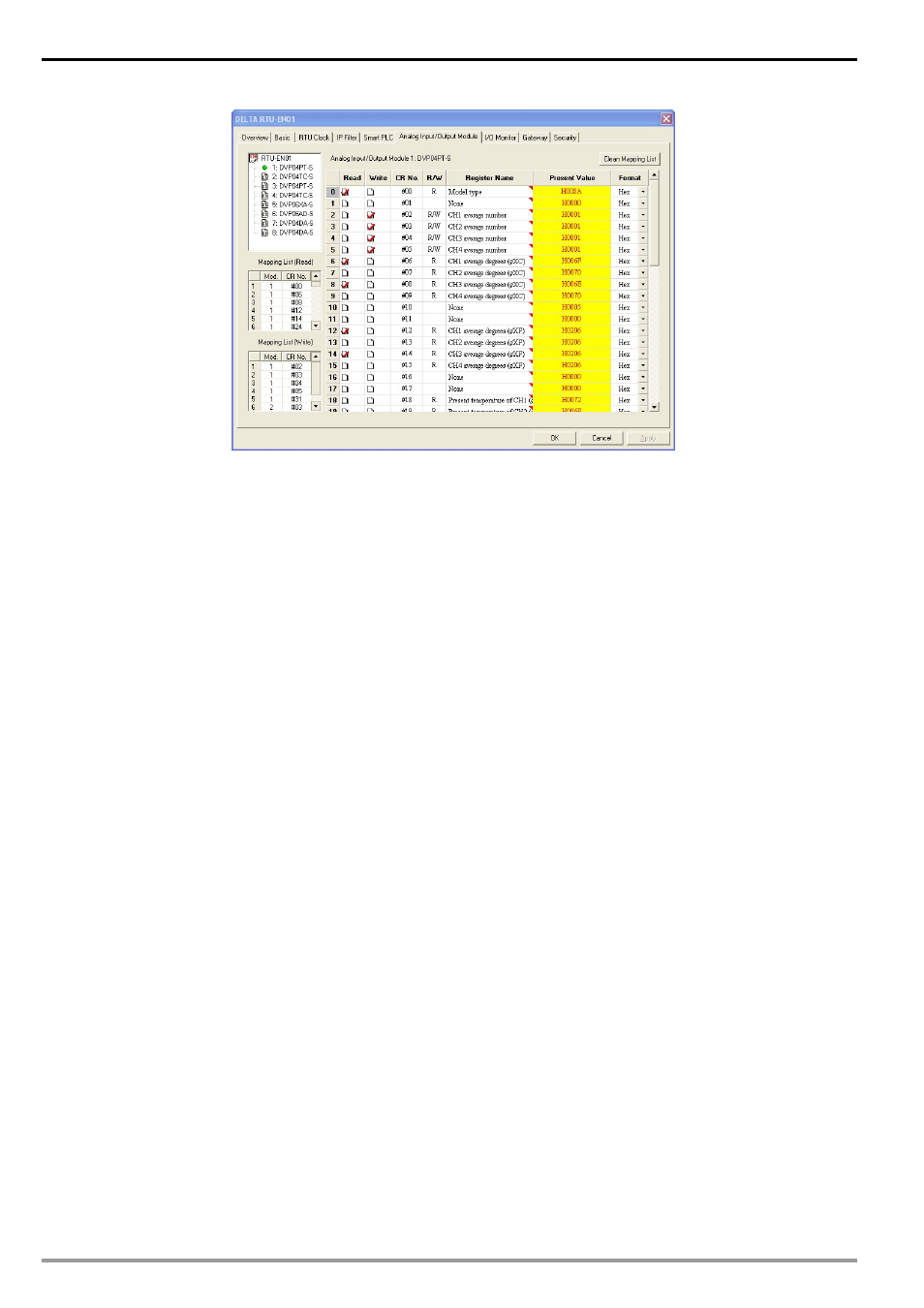

Open DCISoft and it will automatically load in the control register information on the analog I/O

modules. (When using Web settings, you have to load in the EDS file for analog I/O module by

yourself.) Check the CR you are to read or write to establish a mapping table. DVPEN01-SL will

map the CR established in the table to D register in DVP-SV series PLC. The user will be able to

operate the analog I/O module connected to RTU-EN01 by the value stored in D register.

2. Read:

Check the CR (read) to be added to the mapping table. Click “Apply” and the checked CR will be

added.

3. Write:

Check the CR (write) to be added to the mapping table. Click “Apply" and the checked CR will be

added.

4. Clean mapping list:

Once applied, clear all the information in the mapping table.

5. CR

No.:

The number of control register for all analog I/O modules connected to RTU-EN01.

6. R/W:

Indicating whether the CR can be read or written.

7. Register

name:

The name of the CR for the analog I/O modules.

8. Present

value:

The present value in the CR for the analog I/O modules.

9. Format:

The display format for the present value in the CR. Available formats: hex, signed decimal integer

and binary integer.
