Modbus TCP Remote I/O Communication Module RTU-EN01

DVP-PLC Operation Manual

26

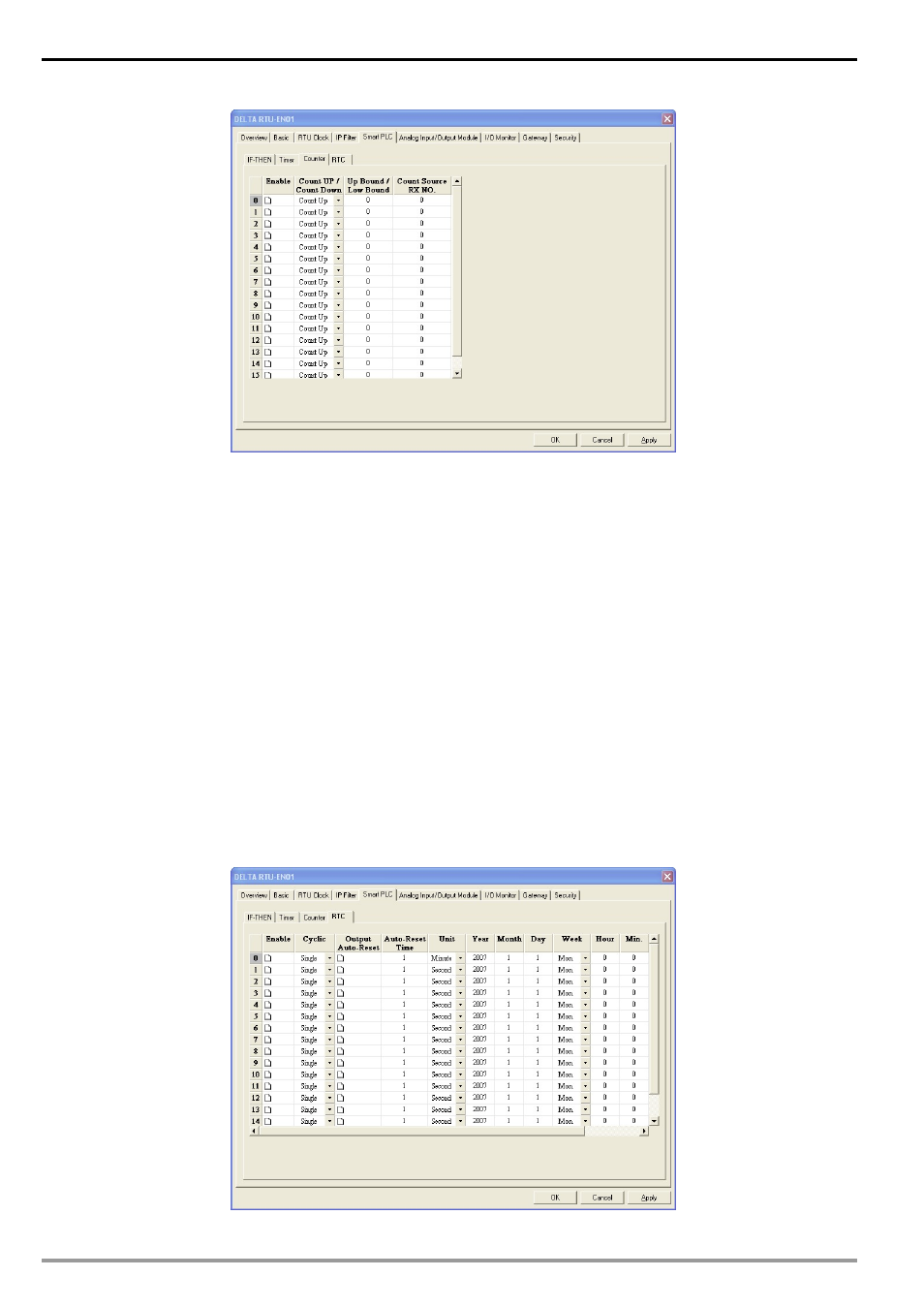

1. Enable:

Decide whether to enable the counter in this column.

2. Count up/count down:

Decide whether the counter will be counting up or counting down.

3. Up bound/low bound:

The upper bound and lower bound of the counting. Range: -32,768 ~ 32,767.

4. Count source RX NO.:

No. of the external input point RX of the counting source. Range: RX#0 ~ RX#255.

6.10 Smart PLC Setting – RTC

RTU-EN01 has the independent Smart PLC function. The real-time clock (RTC) can be triggered by the system at

specific time. There are 16 RTCs in RTU-EN01. You can designate the trigger time or trigger the RTC on a

monthly, weekly or daily basis. Please refer to the explanations on RS#0 ~ RS#159.

„

RTC
