DFI AM636-B User Manual
Page 51
51
2
Hardware Installation

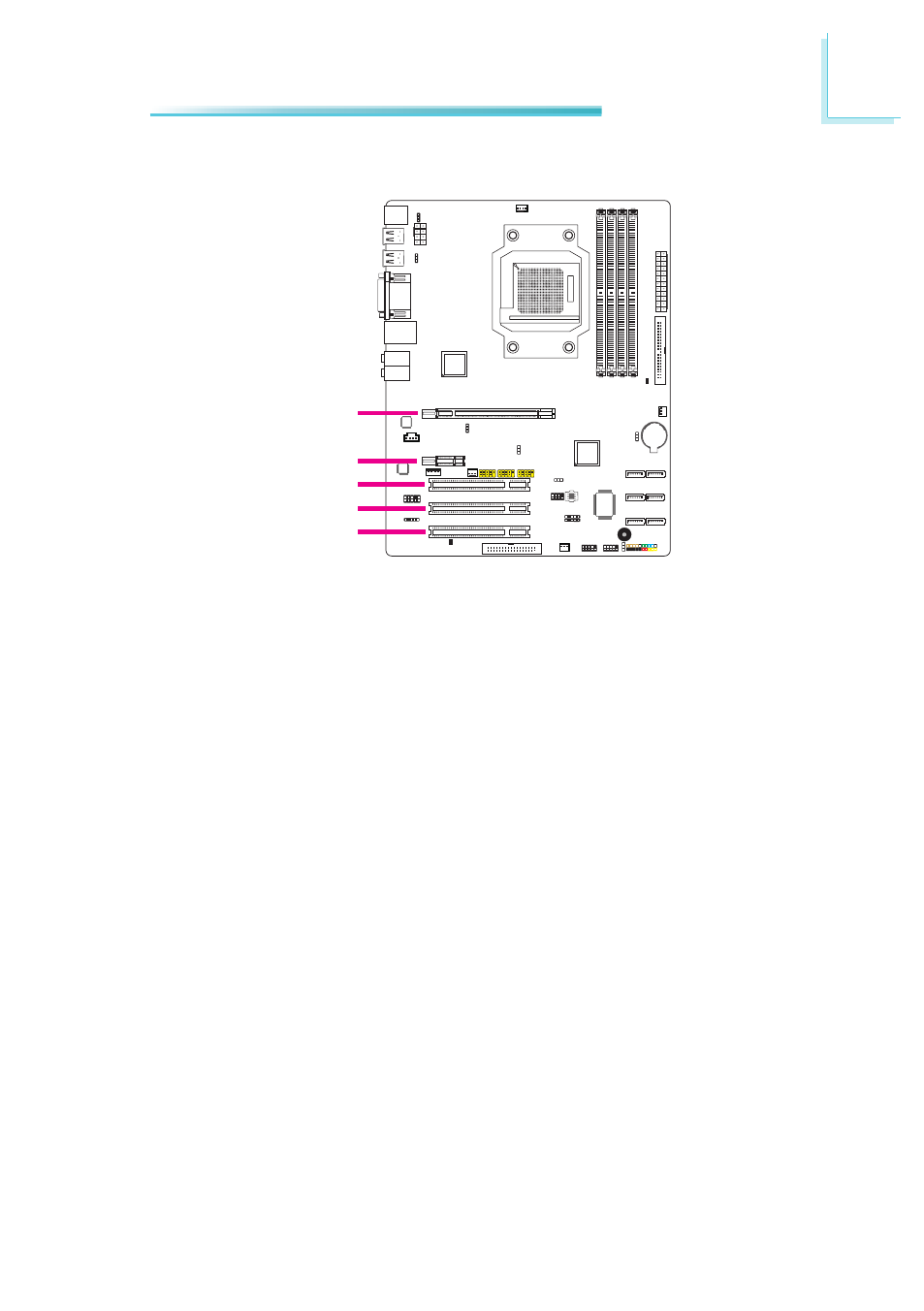

Expansion Slots
PCI Express x1
PCI Express x16 Slot
Install PCI Express x16 graphics card, that comply to the PCI Express specifica-
tions, into the PCI Express x16 slot. To install a graphics card into the x16 slot,
align the graphics card above the slot then press it down firmly until it is com-
pletely seated in the slot. The retaining clip of the slot will automatically hold the
graphics card in place.
PCI Express x1 Slot
Install PCI Express cards such as network cards or other cards that comply to the
PCI Express specifications into the PCI Express x1 slot.
PCI Slots
The PCI slots support expansion cards that comply with PCI specifications.
PCI Express x16
PCI 1
PCI 2
PCI 3
