DFI AM636-B User Manual
Page 33
33
2
Hardware Installation

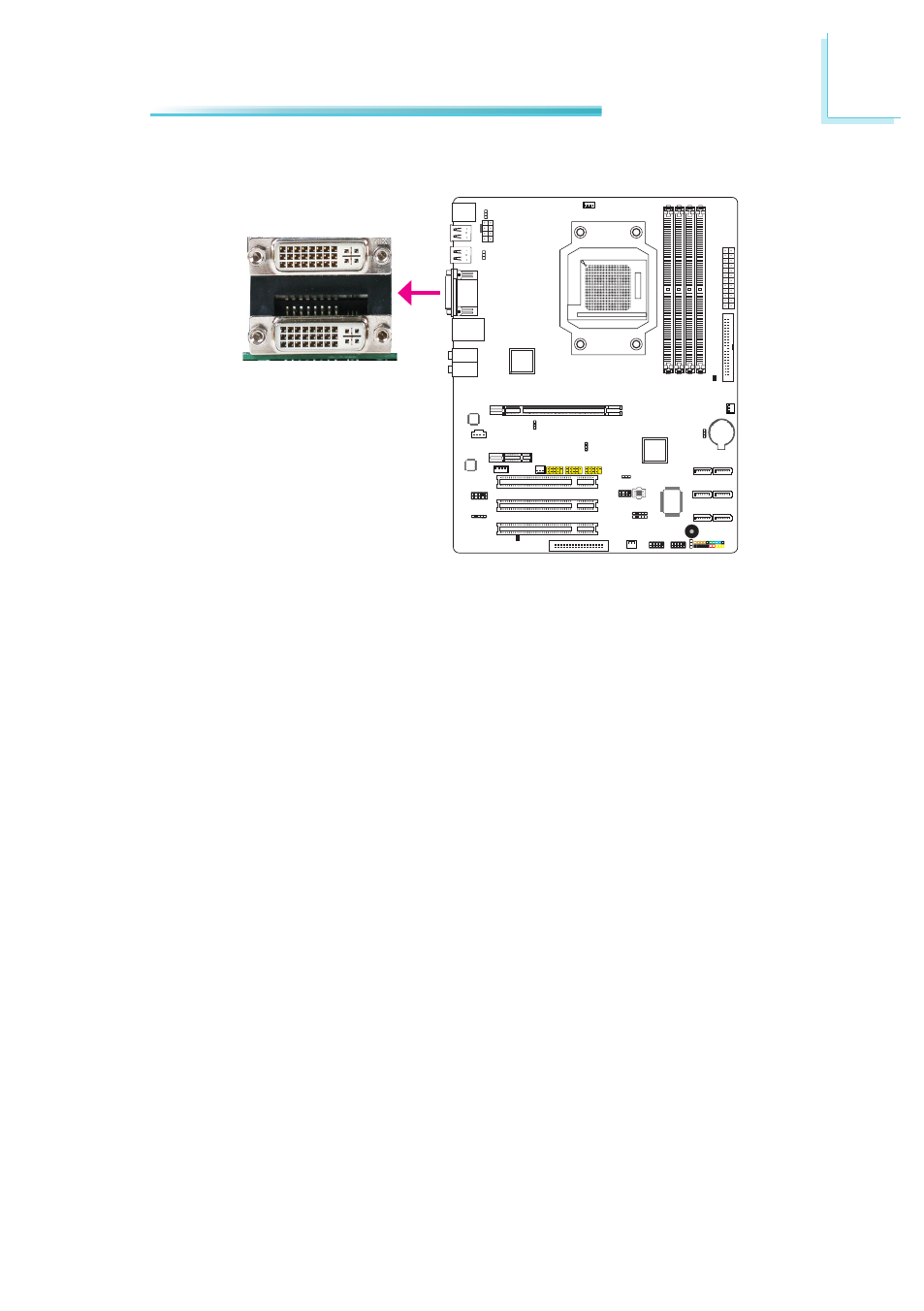

DVI-I Ports
DVI-I
DVI-I
(DVI-D signal only)
The DVI-I ports are used to connect LCD monitors. Connect the display device’s
cable connector to the DVI-I port. After you plug the cable connector into the
port, gently tighten the cable screws to hold the connector in place.
Top - DVI-D
• Supports DVI-D digital signal only.
• For dual display, use this port with the bottom DVI-I port. This port does not
support dual display with PCIE x16 graphics card.
Bottom - DVI-I
• Supports digital and analog signals.
• For dual display, use this port with DVI-D or with a PCIE x16 graphics card.
Summary of Dual Display
• DVI-I + DVI-D or DVI-I + PCIE x16
BIOS Setting
Configure the display device in the Advanced Chipset Features submenu of the
BIOS. Refer to chapter 3 for more information.
