Equipment
Equipment
Each Remote Office
Sync/Async
IP
10/100 BaseT
HUB
TDM
6061
Data Center
M
O
D
E
M
M
O
D
E
M
With
IP-FANOUT
Application
HUB
4180 4180
4180 4180
T1
T1
4180 4180

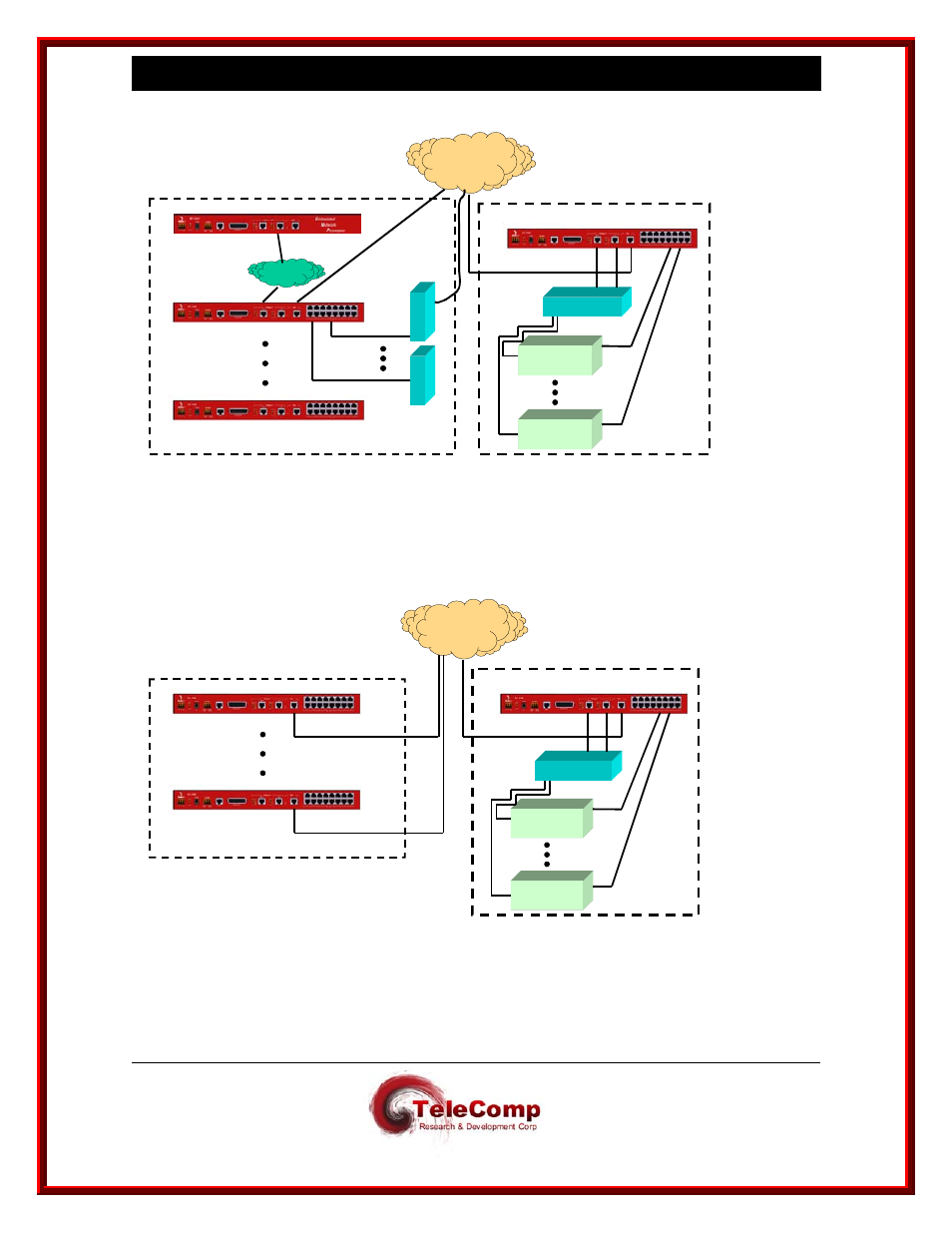

Finally, the 4000XA/4180 may connect to a remote office by any of its connections on a
one for one basis. By using the TSR, a connection with speeds up to T1 (or E1) may be
realized. This is especially useful for intelligent LAN bridging where reliability is a
concern. That diagram is below.
Equipment
Equipment
Each Remote Office
Sync/Async
TDM
Data Center
HUB
4180 4180
4180 4180
T1
T1
4180 4180
T1
