CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

11

consistent baud rate, ranging from 110bps to
115200bps.

AUDIO—Audio signals input

It provides one-way non-equilibrium, stereo audio
output.

VGA——VGA video signal input / output

port
Via DB15 socket, it connects to VGA video
display terminal device or other peripheral
equipments like signal converter and so on.

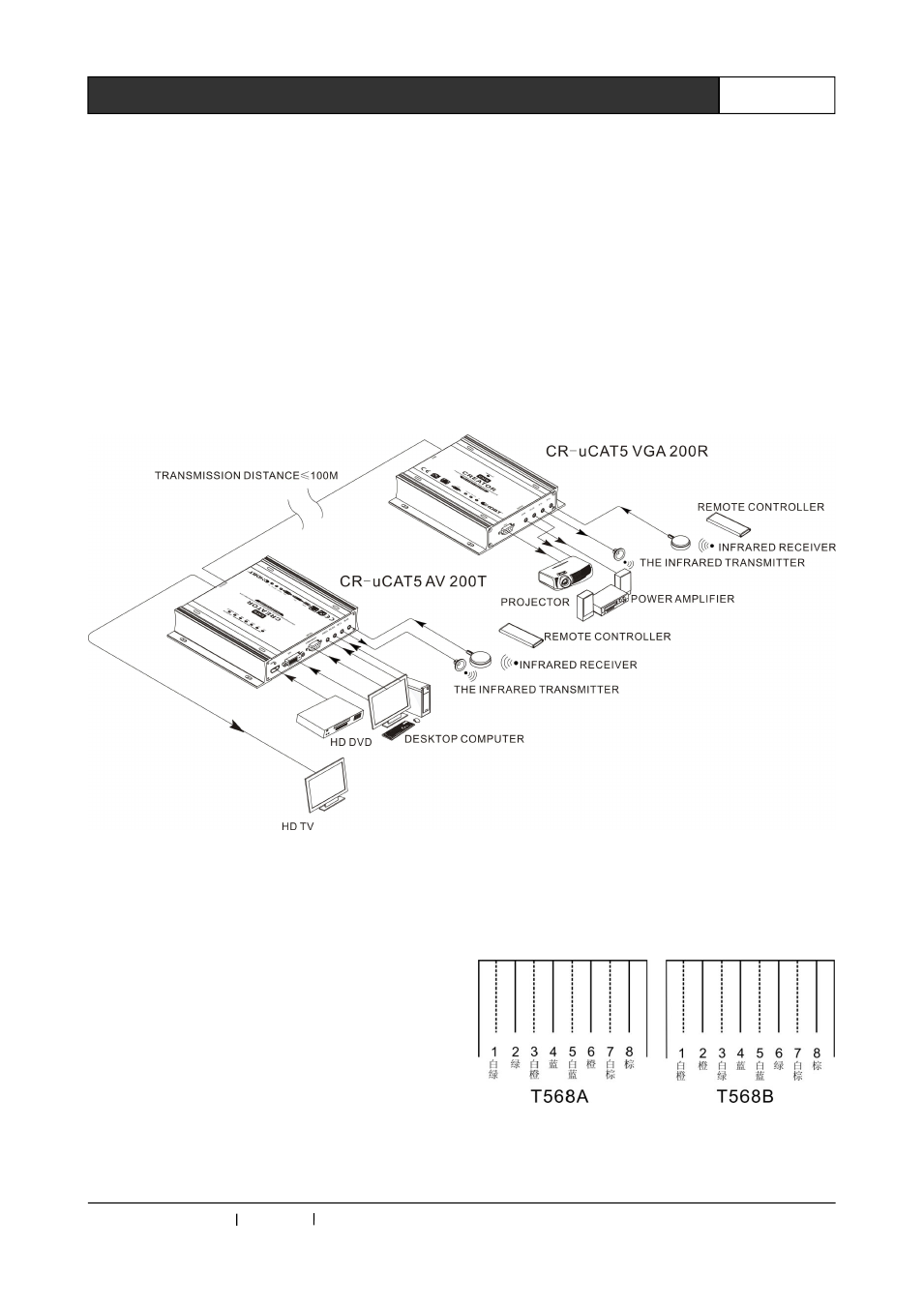

2.5.3 Connection Diagram

2.6 RJ45 Network Port

The system recommends using CAT-6 (cable) as
wire, and via the RJ45 connector (commonly
known as crystal head) which was installed at
both ends of CAT-6 to connect network
equipment. Standard connection of twisted-pair
cable is not arbitrarily prescribed. The purpose is
to ensure that the symmetry of the shielded cable
connector layout, so that interference between
the connector shielded cable can cancel each
other. The general five lines have four pairs of thin
wire twisted together, and marked with different

colors.
Twisted pair cable has two configurations: EIA /
TIA 568B standards and EIA / TIA 568A
standard.
