The second generation Digital CAT5 transmitter User 's Manual

7

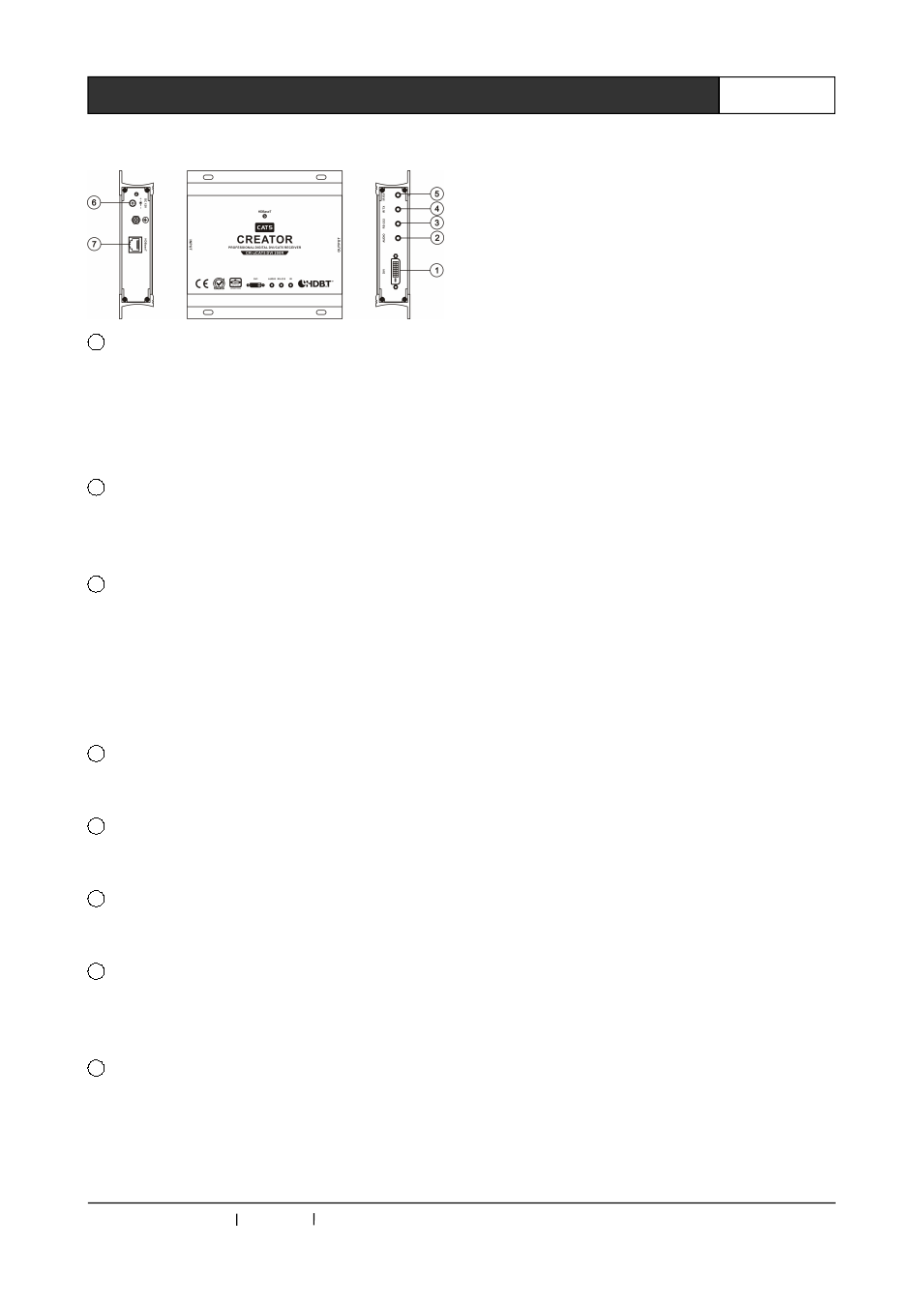

CR-uCAT5 DVI 200R:

1

DVI——video signal input / output port

Using DVI-D interface, connect to the DVI HD
video

signal

source

and

display

terminal

equipment or other peripheral equipments like
signal converter. Such as PC, DVI HD video
player, DVI display etc.

2

AUDIO——audio signal input / output port

Provides one-way non-equilibrium, stereo audio
input and output port, and connects to PC and
other peripheral equipments.

3

RS-232——RS-232 serial control

Using DB9 to 3.5MM earphone socket, for the
remote control, can be connected with PC. The
sending end with 3.5MM to DB9 female socket,
receiver with 3.5MM to DB9 male socket, both
ends are set to a consistent baud rate, ranging
from 110bps to 115200bps.

4

IR TX——infrared transmitting port

Using 3.5MM earphone socket to infrared
transmitter

5

R-RX——infrared receiving port

Using 3.5MM earphone socket to infrared
receiver

6

DC 12V——power input port

Support DC 12V input and side with the power
indicator.

7

HDBaseT——

CAT5e/6

network

transmission interface
It uses RJ45 interface for long distance
transmission of HDBaseT signals.

8

MONITOR——video

monitoring

output

interface
Be capable of monitoring DVI signal input.
When DVI input port receives HDMI signals of
blue-ray DVD and so on, the monitoring output

port does not support the output of HDMI signal.
