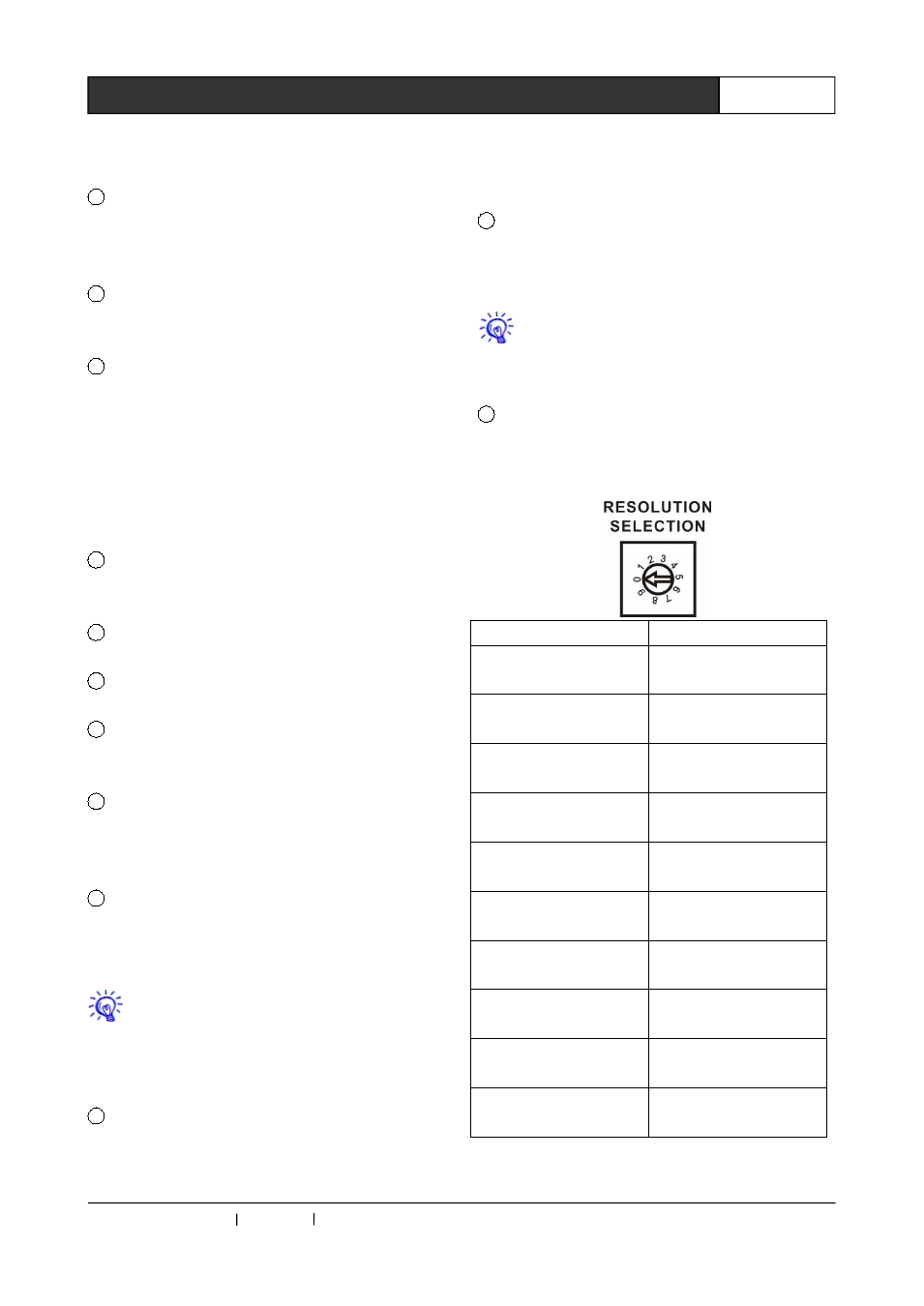

The second generation Digital CAT5 transmitter User 's Manual
4
line, it can input RGBHV, Video, S-video, YPbPr
(YCbCr)
4
AUDIO——Audio signal input
Provides 1 channel of non-equilibrium, stereo
audio input, and input for any video (except
HDMI)
5
IR TX——Infrared transmitter port
Using 3.5MM earphone socket infrared
transmitter
6
RS-232——RS-232 control port
3.5MM earphone socket and DB9 male
(female) socket are used for long distance serial
control. The sending end with 3.5MM connected
to DB9 socket, receiver with 3.5MM connected to
DB9 socket, both ends are set to a consistent
baud rate, and baud rate ranges from 110bps to
115200bps
7
IR-RX——Infrared receiver port
Using 3.5MM earphone socket connected to
infrared receiver.
8
INPUTS——The lamp indicating input
channel state
9
OUTPUTS——The lamp indicating output
channel state
10
DC 12V——Power input port
Support DC 12V input, with a power
indicating lamp
11
HDBaseT——CAT5e/6 network transmission
interface
Use RJ45 interface for long distance transmission
of HDBaseT signals.
12
MONITOR——HDMI video output interface
It is used by HDMI to monitor the signal of current
selected video channel and one analog audio
input.
When HDMI signal inputs, analog audio can
not input simultaneously. Analog audio can output
HDMI signal together with any arbitrary video of
CV, YC, YUV, VGA, DVI.
13
PROGRAM——Serial
port
debugging
interface
3.5MM earphone connector to DB9 female
socket connection line is used to connect PC so
as to realize serial port control.
14
CHANNEL——Video channel selection
For selecting the video input interface, the
corresponding video indicator will be lit. Optional
Videos: CV, YC, YUV, VGA, DVI, HDMI.
When switch from VGA input state to YUV
channel, user needs re-power the device and
then perform the channel selection.
15
RESOLUTION SELECTION
Provide DIP setting, rotate the arrow on the
DIP switch to select the desired output resolution,
specific parameters are as follows:
DIP switch selectable
Resolution
The arrows point to
the number 0
800x600@60Hz
The arrows point to
the number 1
1024x768@60Hz
The arrows point to
the number 2
1280x720@60Hz
The arrows point to
the number 3
1280x800@60Hz
The arrows point to
the number 4
1280x960@60Hz
The arrows point to
the number 5
1280x1024@60Hz
The arrows point to
the number 6
1366x768@60Hz
The arrows point to
the number 7
1440x900@60Hz
The arrows point to
the number 8
1600x900@60Hz
The arrows point to
the number 9
1920X1080@60Hz
