CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

6

The second generation Digital CAT5 transmitter User 's Manual

6

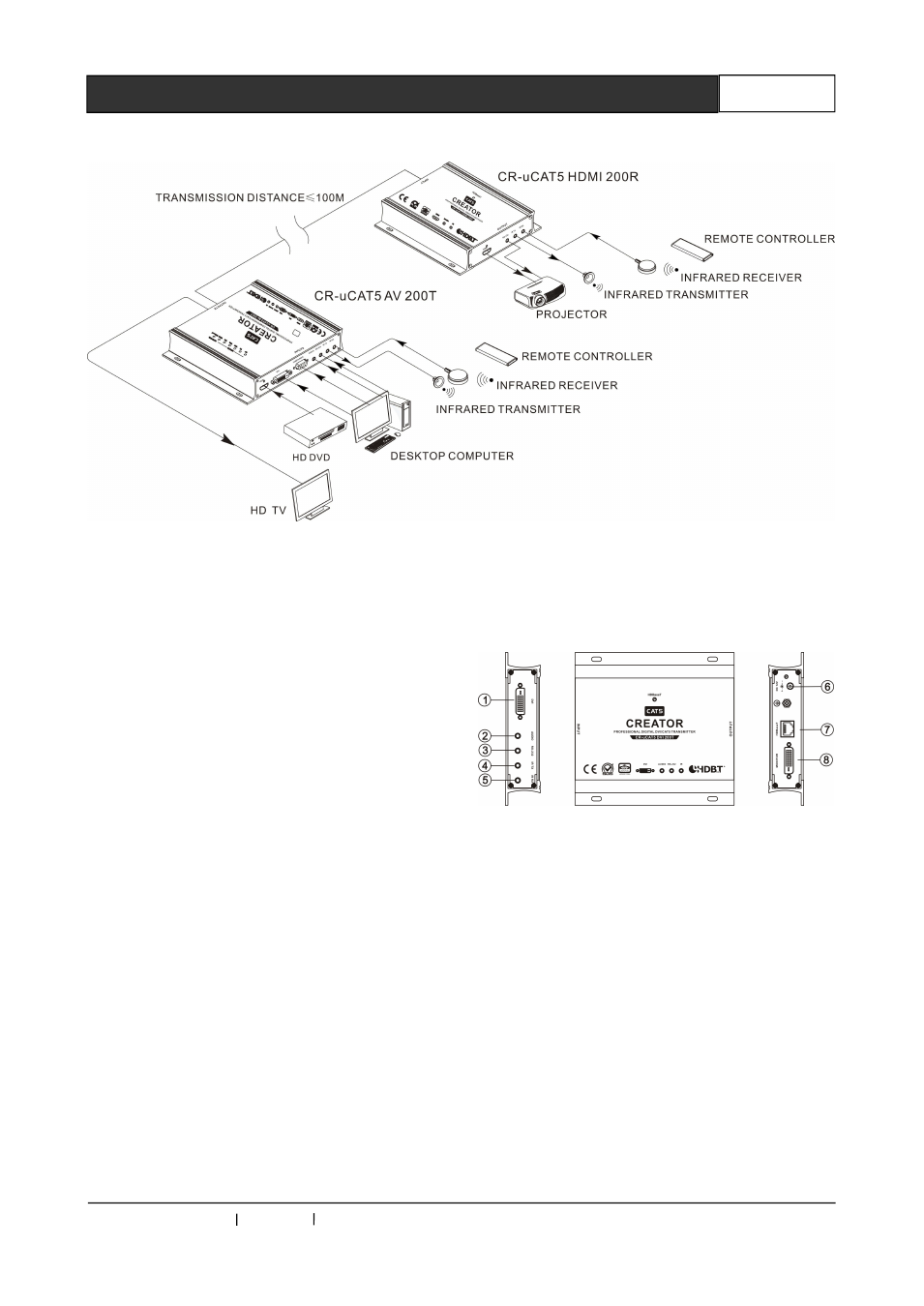

2.2.4 Connection Diagram

2.3 CR-uCAT5 DVI 200T&R

Digital Twisted-Pair Transmitter

DVI digital video twisted-pair transmitter through
a single CAT5e/6 shielded twisted pair cable
transmits HD video 1080P to 100m. It can
simultaneously transmit bidirectional RS-232 and
two-way infrared signal. High resolution video
digital

signal

channel

guarantees

the

transmission effect of image. The sending end
has a DVI monitor output, which can be used for
DVI input signal expansion or monitoring.
DVI digital transmitter perfectly transmits DVI
signal source. It provides a low cost solution for
remote video transmission and two-way control of
signal source device and the display device

2.3.1 Function Characteristics

 Support DVI-D input, compatible with DVI1 0;
 Supports two-way infrared, RS-232

transmission;

 The transmitter supports DVI monitor output;
 Support for simultaneous transmission of

video, audio, IR and RS-232. The maximum
transmission distance of CAT5e/6 shielding

cable is up to 100M.

2.3.2 Panel Features

CR-uCAT5 DVI 200T:
