CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

10

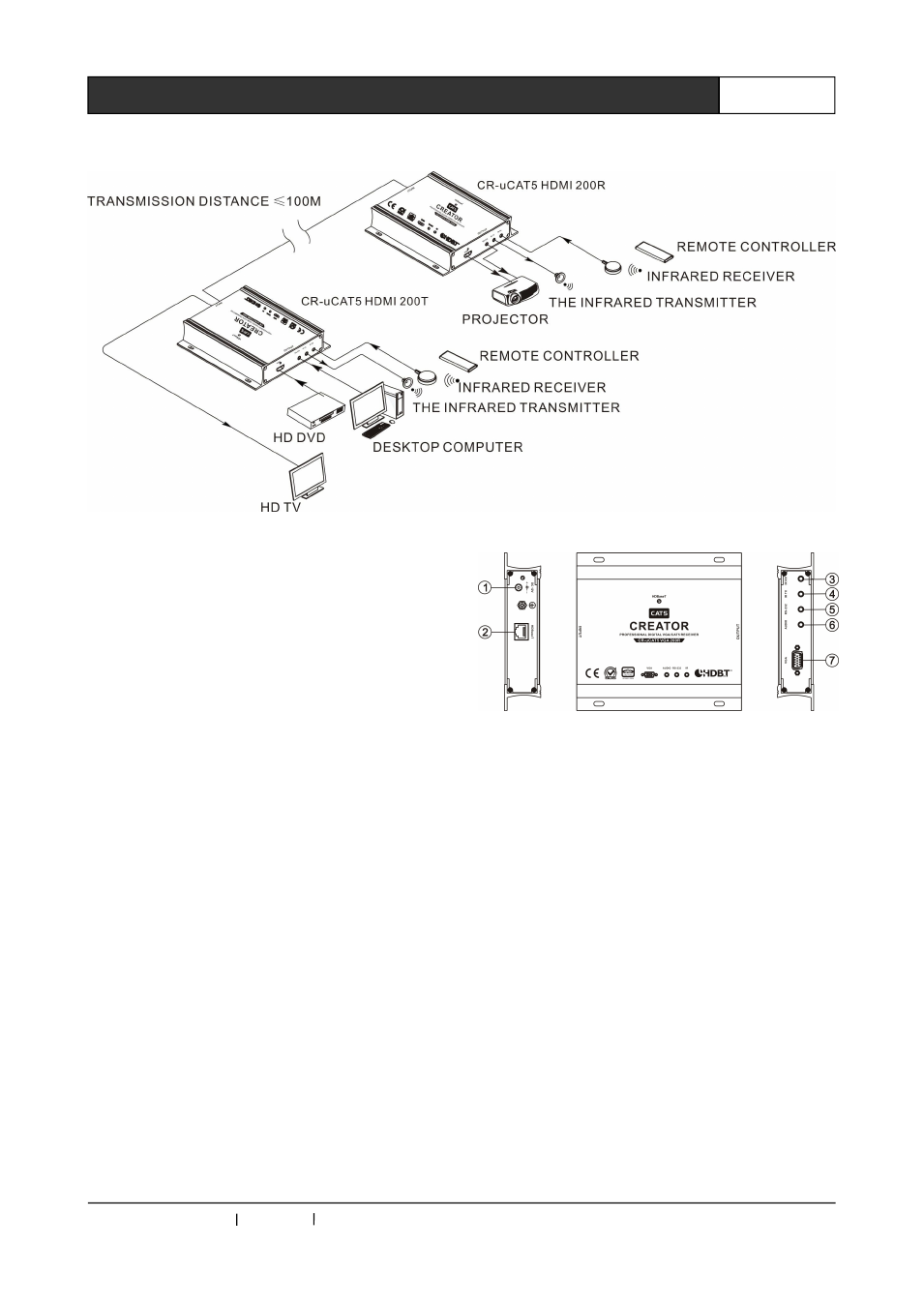

2.4.3 Connection Diagram

2.5 CR-uCAT5 VGA 200R

Digital Twisted-Pair Transmitter

VGA video twisted-pair transmitter transmits high
bandwidth video signal up to 100m via a single
CAT5e/6 shielding cable. Resolution ranges from
SVGA (800X600) to WUXGA (1920x1200). And it
can simultaneously transmit analog stereo audio,
bidirectional RS-232, and two-way infrared
signals.

2.5.1 Features Characteristics

 Support high bandwidth analog video output;
 Supports analog stereo output;
 Support

two-way

infrared,

RS232

transmission;

 Support simultaneous video, audio, IR, and

RS232 transmission;

 The maximum transmission distance of

CAT5e/6 shielding cable is up to 100M.

2.5.2 Panel Features

CR-uCAT5 VGA 200R:

DC 12V—Power input port

Support DC 12V input and side with a power
indicator.

HDBaseT—CAT5e/6 network transmission

interface
It uses RJ45 interface for long distance
transmission of HDBaseT signals.

IR RX—Infrared receiving port

3.5MM earphone socket infrared receiver is
adopted.

IR TX—Infrared transmitting port

3.5MM earphone socket infrared receiver is
adopted.

RS-232—RS-232 serial control

Using DB9 to 3.5MM earphone socket, for the
remote control, can be connected with PC. The
sending end with 3.5MM to DB9 socket, receiver
with 3.5MM to DB9 socket, both ends are set to a
