Avery Dennison SNAP 700 RFID Linear Knife - Manual (Page 23)

Snap Linear Knife Adjustments

23
Adjusting the Sensor
The SNAP 700 Linear Knife has the capability to sense through hole, slot,
top reflective, or bottom reflective sense marks. The sensors are assembled
so that the sender and receiver are opposite each other. See instructions
below to line up the sensors if they need to be re-aligned.

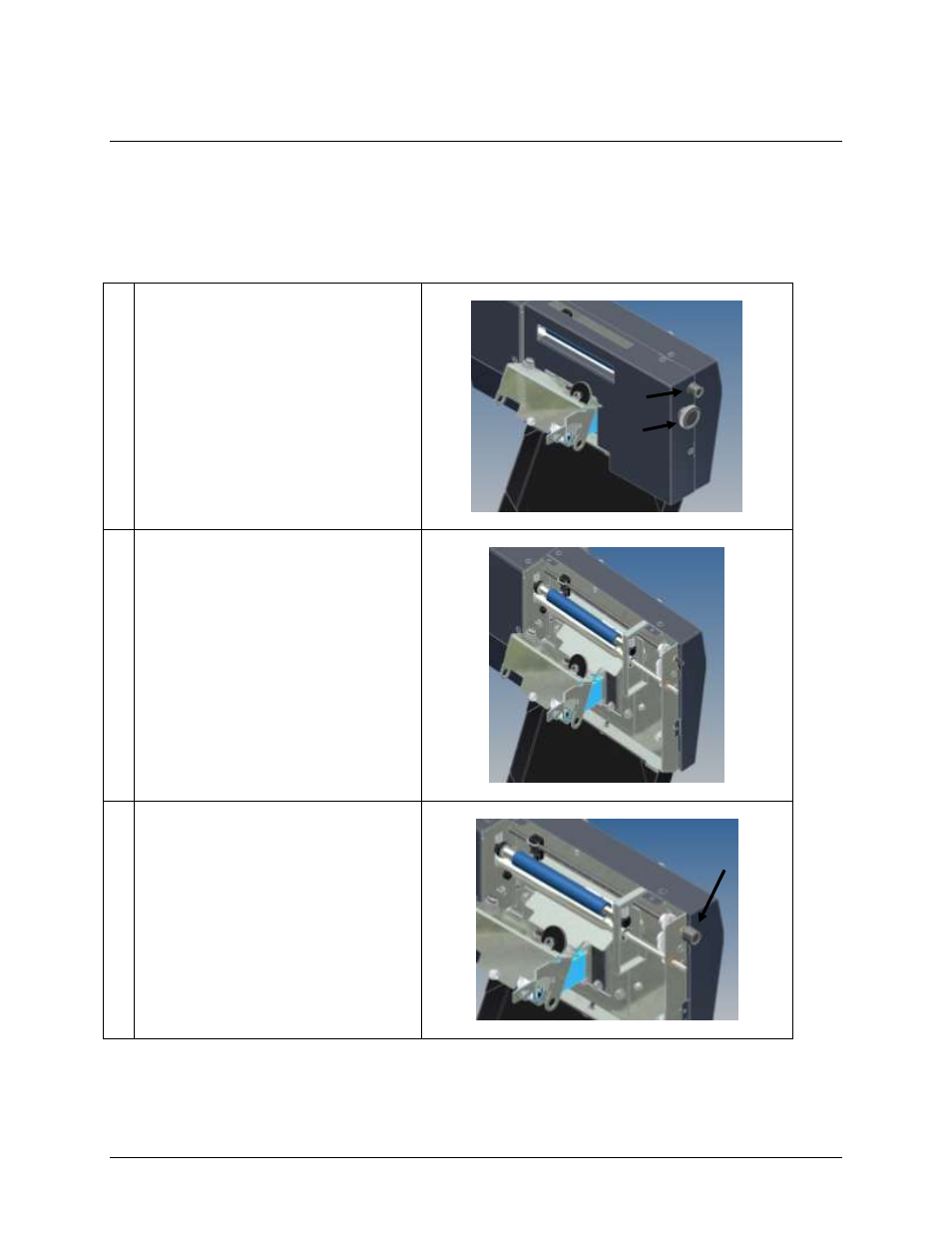

1. Remove the feed knob and the sensor
adjust knob.
2. Remove three 8-32 button head screws and
the left side cover
3. Temporarily re-install the sensor adjust
knob.
