4.18 Clock Distribution

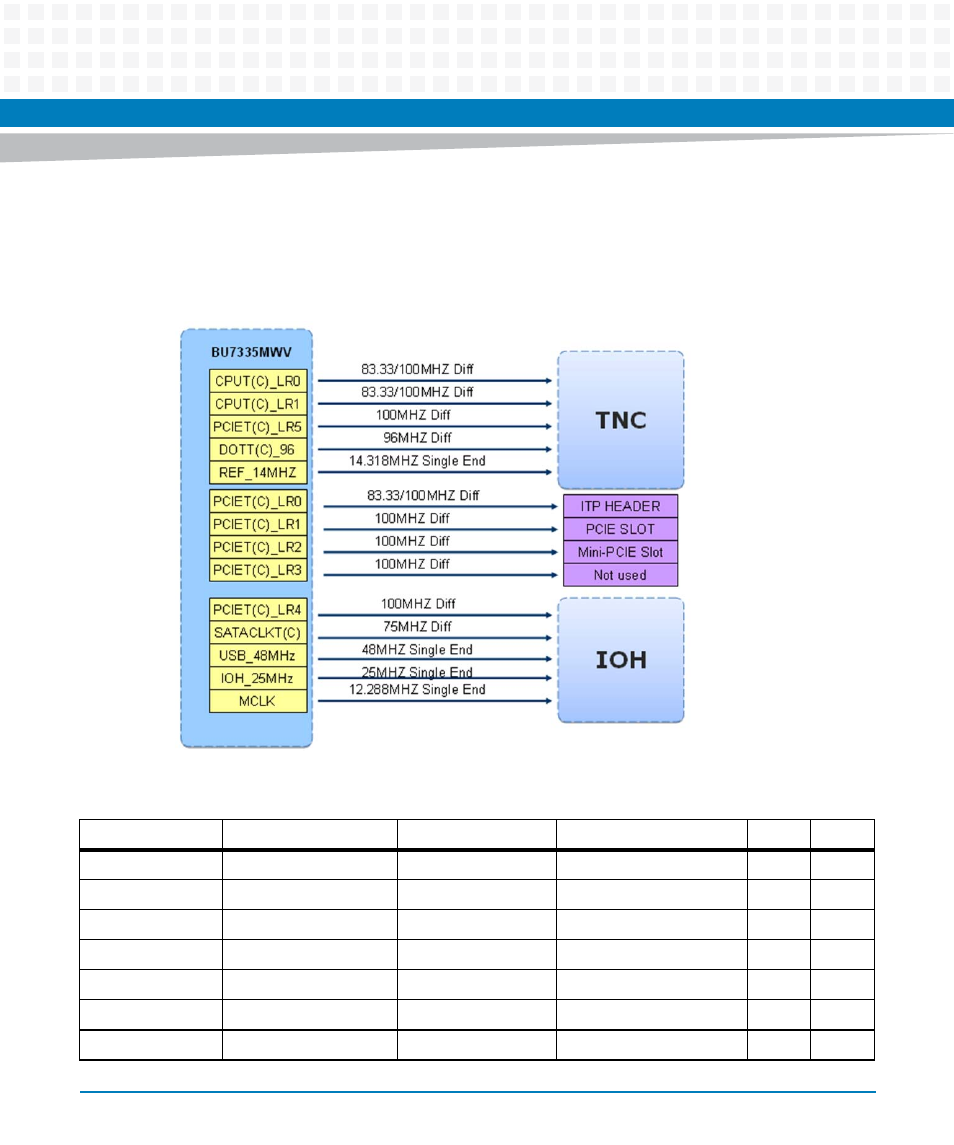

The following figure displays the clock source used by NITX-315/NITX-315-ET:
Figure 4-7
Clock Distribution of NITX-315/NITX-315-ET
Table 4-5 Clock Assignments
DEVICE
CLOCK SIGNAL(S)
FREQUENCY (MHz)
CLOCK TREE SOURCE
QTY
VIO
TNC
BCLK
100
BU7335MWV
1
DIFF
TNC
HPLL_REFCLK
100
BU7335MWV
1
DIFF
TNC
SDVO_REFCLK
96
BU7335MWV
1
DIFF
TNC
CLK_14MHZ
14.318
BU7335MWV
1
Single
TNC
CPU_PCIE_CLK
100
BU7335MWV
1
DIFF
LPC(From TNC)
LPC_CLKOUT0
33
TNC
1
Single
HDACLK
HDA_CLK
24
TNC
1
Single
